Phasemeter

Designed by researchers for demanding measurement applications, the Moku Phasemeter is optimized to provide precise phase measurements. Measure phase, frequency, and amplitude with better than 1 nanoradian precision using a digital phase-locked loop architecture with exceptional dynamic range, zero dead time, and measurement precision that exceeds the performance of conventional lock-in amplifiers and frequency counters.

Download datasheet

Learn more about the Moku Phasemeter

The Moku Phasemeter exceeds the performance of conventional oscilloscopes, lock-in amplifiers, and frequency counters in terms of precision and accuracy. Watch the video to learn more.

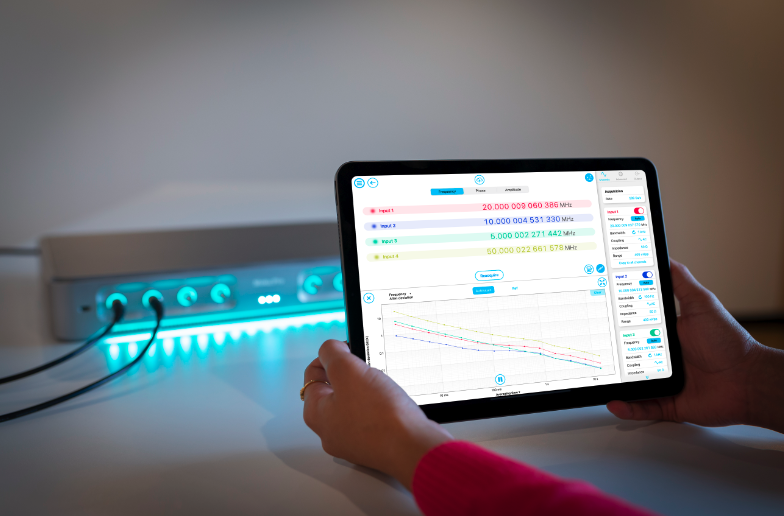

Allan deviation on Phasemeter

Track measurement results in real time with built-in graphs

With real-time graphs, you can focus on making measurements, not manipulating data. Analyze measurements in the time and frequency domains with plots of overlapping Allan deviation, time series data, power spectral density, amplitude spectral density, Rayleigh spectrum, and coherence with no additional programming or post-processing required.

mokupro-phm

Leverage multi-channel phase, frequency, and amplitude measurements

Utilize up to four independent channels for maximum performance. Generate sine waves that are phase-locked to the inputs, divided down up to 0.125x or multiplied up to 250x. With a digital phase-locked loop architecture, the Moku Phasemeter continuously tracks the phase, frequency, and amplitude of an input signal with high precision.

Phasemeter real time data analysis

Track signal phase over a wide range of frequencies

Measure signals with phase-locked loop tracking bandwidths from 1 Hz to 1 MHz. Ensure accurate signal measurements even in noisy environments with phase sensitivity in the µcycle level, corresponding to optical metrology sensitivities at the picometer level.

Moku:Lab Phasemeter

Engineered to help you focus on the work that matters

With an intuitive GUI, built-in data visualization, and fully embedded data logging, the Moku Phasemeter can help you save countless hours of development time to build solutions, capture meaningful data, and analyze results in post-processing.

Moku:Go Liquid Instruments

Integrate with your preferred software

Moku features API support for Python, MATLAB, LabVIEW, and more, allowing for straightforward integration of Moku with your technology stack.

Try the software

Engineered for demanding applications

Use the Moku Phasemeter to accelerate development timelines with speed and flexibility unmatched by any other instrument in its class.

Directed energy

Gravitational wave detection

Interferometry

Optical ranging

Oscillator analysis

Integrates seamlessly with your tech stack

Specifications and technical documents

The Moku Phasemeter is available on all Moku platforms. Compare the specifications below to choose the right device for your application.

mokupro
mokulab

Moku:Pro

Learn more

Moku:Lab

Learn more

Moku:Go

Learn more

Technical specifications

Input channels

4

2

2

Frequency range

1 kHz to 300 MHz

1 kHz to 200 MHz

1 kHz to 30 MHz

Phase precision

1 nrad

1 nrad

1 nrad

Frequency precision

10 µHz

4 μHz

1 μHz

Clock stability

< 300 ppb

< 500 ppb

< 50 ppm

Software & APIs

Windows, macOS, iPadOS, and visionOS apps
API support for Python, MATLAB, and LabVIEW

Windows, macOS, iPadOS, and visionOS apps
API support for Python, MATLAB, and LabVIEW

Windows, macOS, iPadOS, and visionOS apps
API support for Python, MATLAB, and LabVIEW

Documentation

Datasheets

Moku:Pro Phasemeter Datasheet
Moku:Pro Hardware Datasheet

Moku:Lab Phasemeter Datasheet
Moku:Lab Hardware Datasheet

Moku:Go Phasemeter Datasheet
Moku:Go Hardware Datasheet

User manuals

Moku:Pro Phasemeter User Manual

Moku:Lab Phasemeter User Manual

Specs

Moku:Pro Phasemeter Specs

Moku:Lab Phasemeter Specs

Moku:Go Phasemeter Specs

mokupro

Moku:Pro

Phasemeter

Technical specifications

Input channels
4

Frequency range
1 kHz – 300 MHz

Phase precision
1 nrad

Frequency precision
10 µHz

Clock stability
< 300 ppb

Software & APIs
iPadOS App
Windows App, macOS App
API support for Python, MATLAB, and LabVIEW

Documentation

Datasheets
Moku:Pro Phasemeter Datasheet
Moku:Pro Hardware Datasheet

User manuals
Moku:Pro Phasemeter User Manual

Specs
Moku:Pro Phasemeter Specs

mokulab

Moku:Lab

Phasemeter

Technical specifications

Input channels
2

Frequency range
1 kHz – 200 MHz

Phase precision
1 nrad

Frequency precision
4 μHz

Clock stability
< 500 ppb

Software & APIs
iPadOS App
Windows App, macOS App
API support for Python, MATLAB, and LabVIEW

Documentation

Datasheets
Moku:Lab Phasemeter Datasheet
Moku:Lab Hardware Datasheet

User manuals
Moku:Lab Phasemeter User Manual

Specs
Moku:Lab Phasemeter Specs

Moku:Go

Phasemeter

Technical specifications

Channels
2

Frequency range
1 kHz – 30 MHz

Phase precision
1 nrad

Frequency precision
1 μHz

Clock stability
< 50 ppm

Software & APIs
Windows App, macOS App
API support for Python, MATLAB, and LabVIEW

Documentation

Datasheets
Moku:Go Phasemeter Datasheet
Moku:Go Hardware Datasheet

Specs
Moku:Go Phasemeter Specs
