Gigabit Streamer
High-speed streaming for complex signal environments

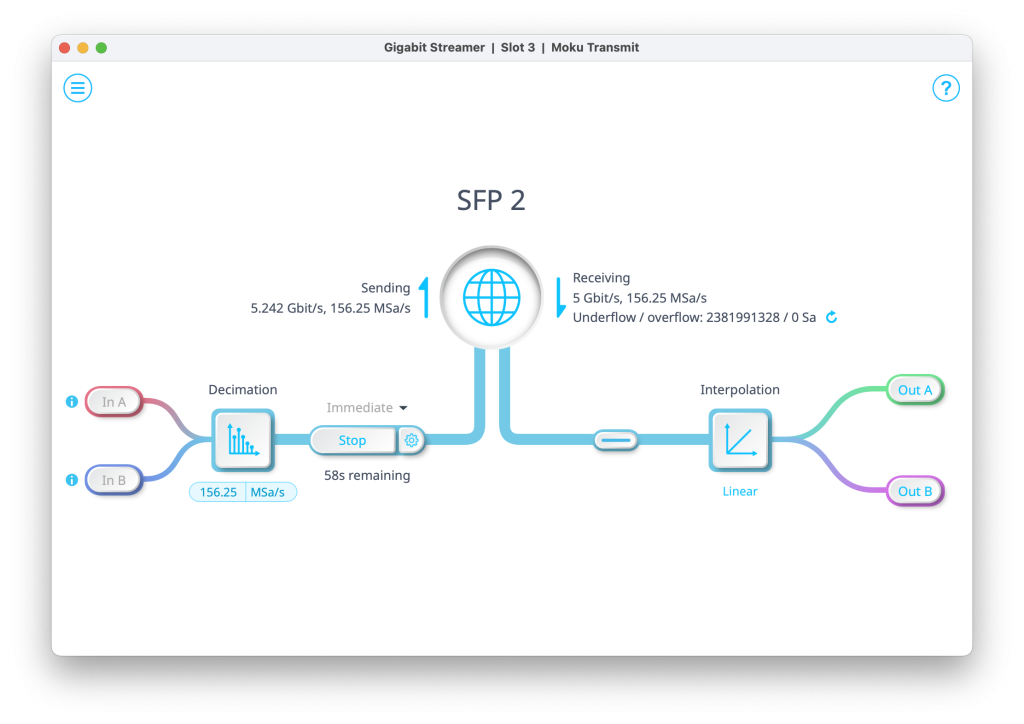

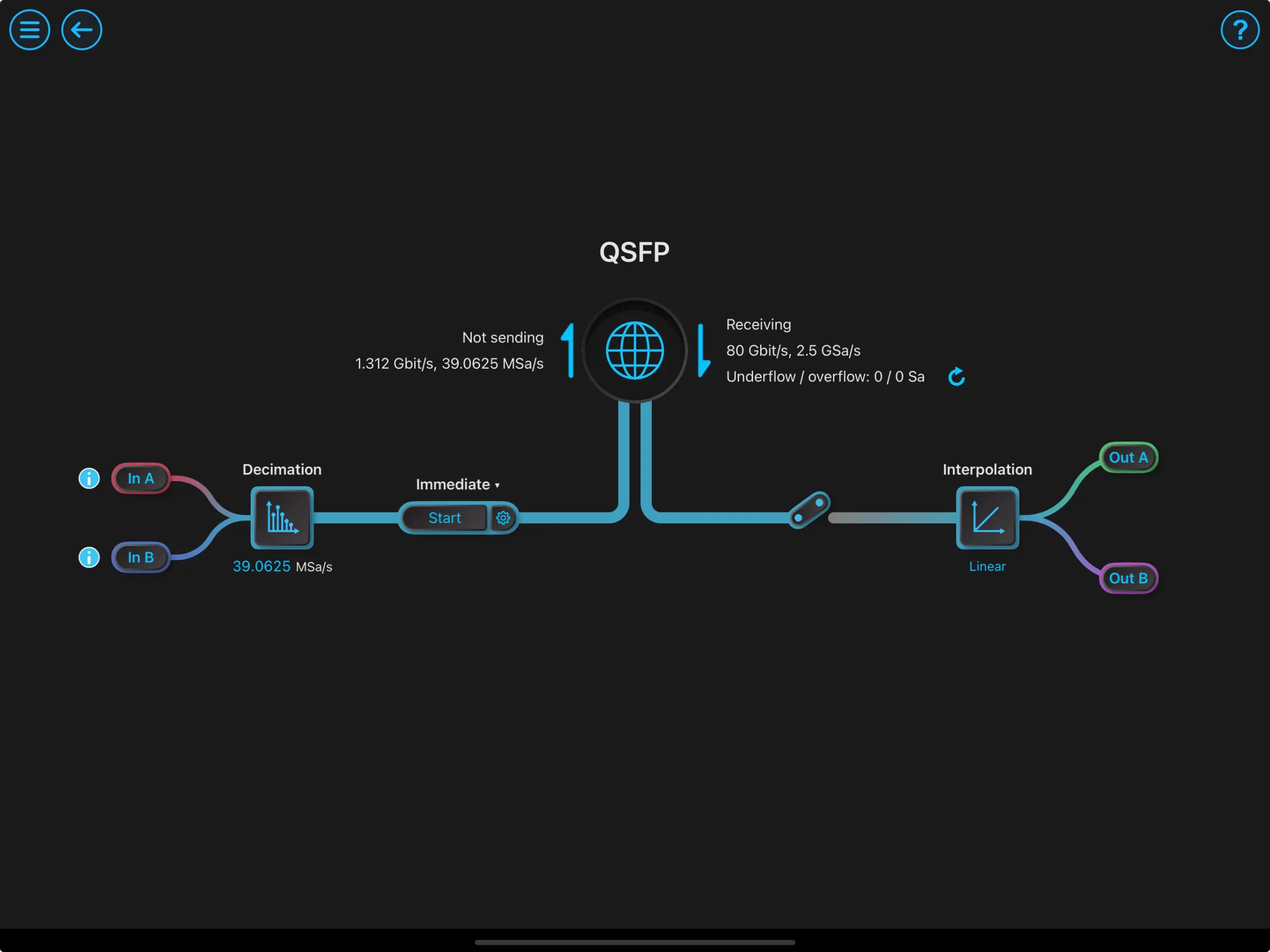

Capture real-world signals for analysis and playback or generate arbitrary waveforms with data throughput up to 80 Gbps. The Gigabit Streamer supports simultaneous bidirectional, multi-channel data transfer with optimized buffering for reliable high-speed streaming. Integrate with standard networking and storage infrastructure to simplify demanding record/playback, signal monitoring, and hardware-in-the-loop test applications.
High-speed streaming to and from network attached storage
Record and playback data at up to 80 Gbps for applications like sensor data logging, signal monitoring and emulation, or hardware-in-the-loop (HIL) simulations.
High-speed streaming with flexible storage integration
Integrate with external storage systems with flexible data handling and formatting.

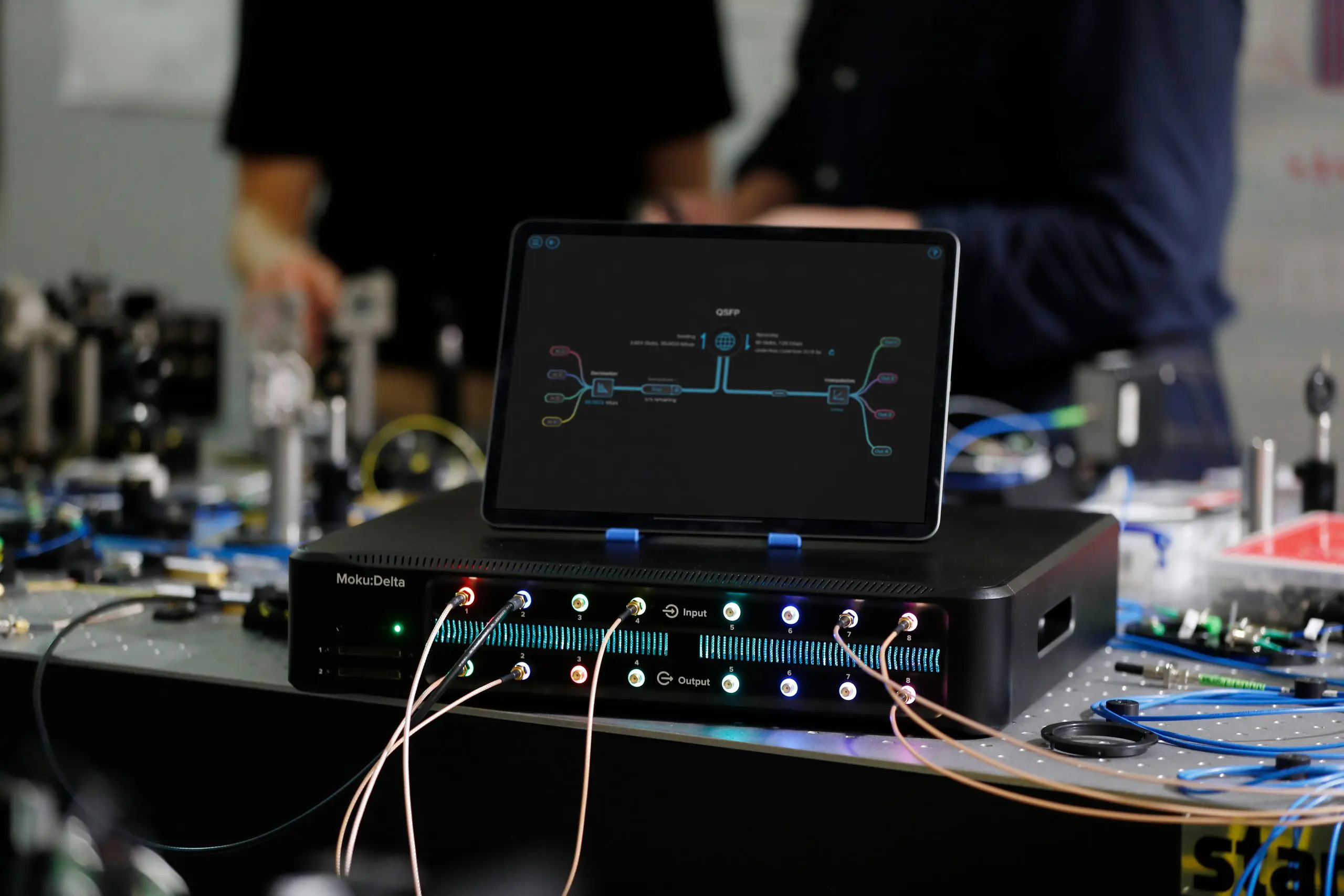

Moku-to-Moku streaming

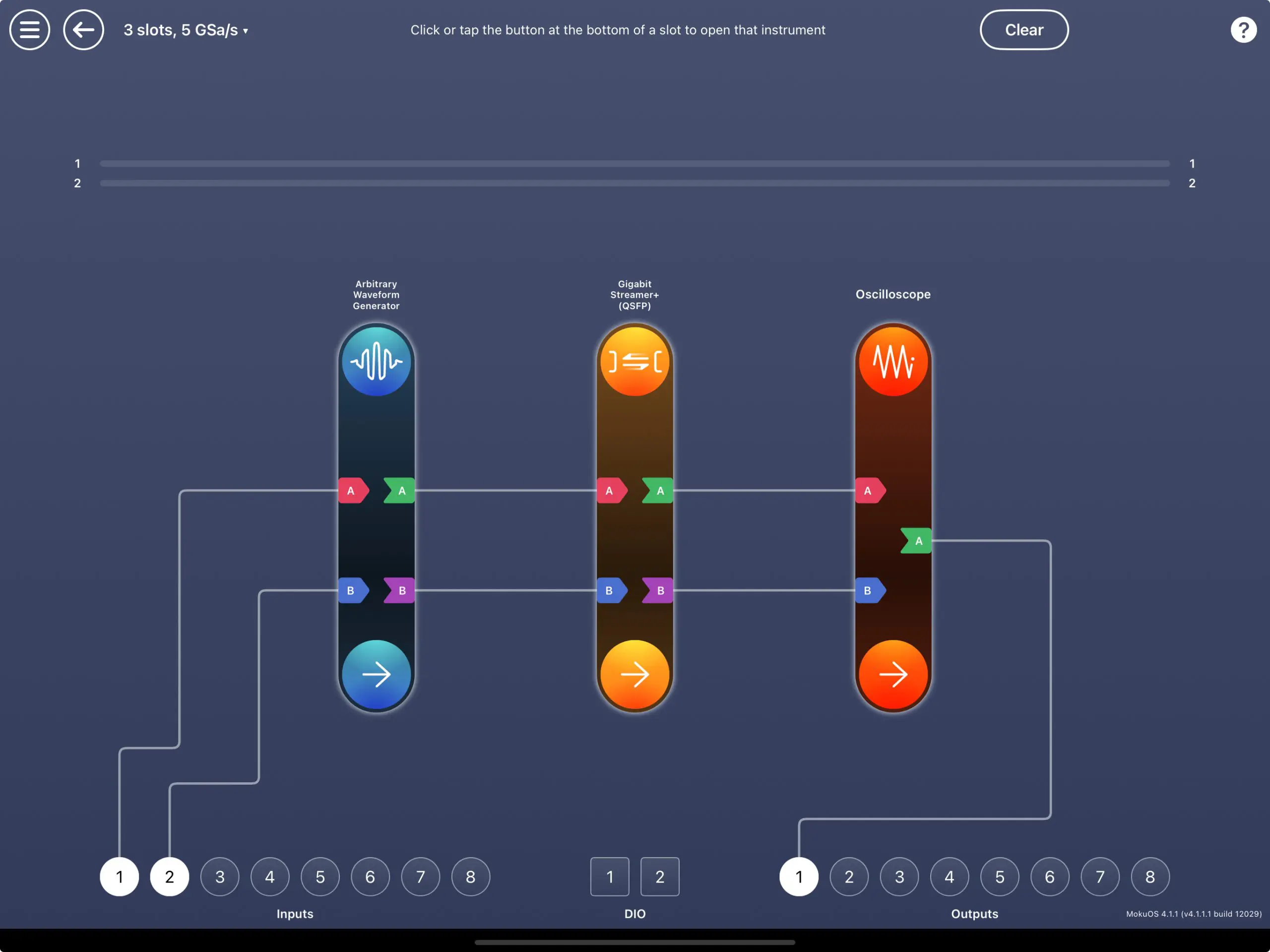

Expand your test system channel count and instrument slots by streaming data between multiple Moku devices with Gigabit Streamer. Synchronized data from distributed systems with GNSS-precision timestamping.
Interoperable, multi-channel streaming with standard protocol
Stream data on multiple channels simultaneously with industry-standard VRT (VITA 49.2) and DIFI interoperability profile support.
Integrate with your preferred APIs
Automate with Python and MATLAB APIs for straightforward control of complex setups or repetitive tasks.
Engineered for demanding applications
Use the Moku Gigabit Streamer to accelerate development timelines with speed and flexibility unmatched by any other instrument in its class.
High-speed streaming

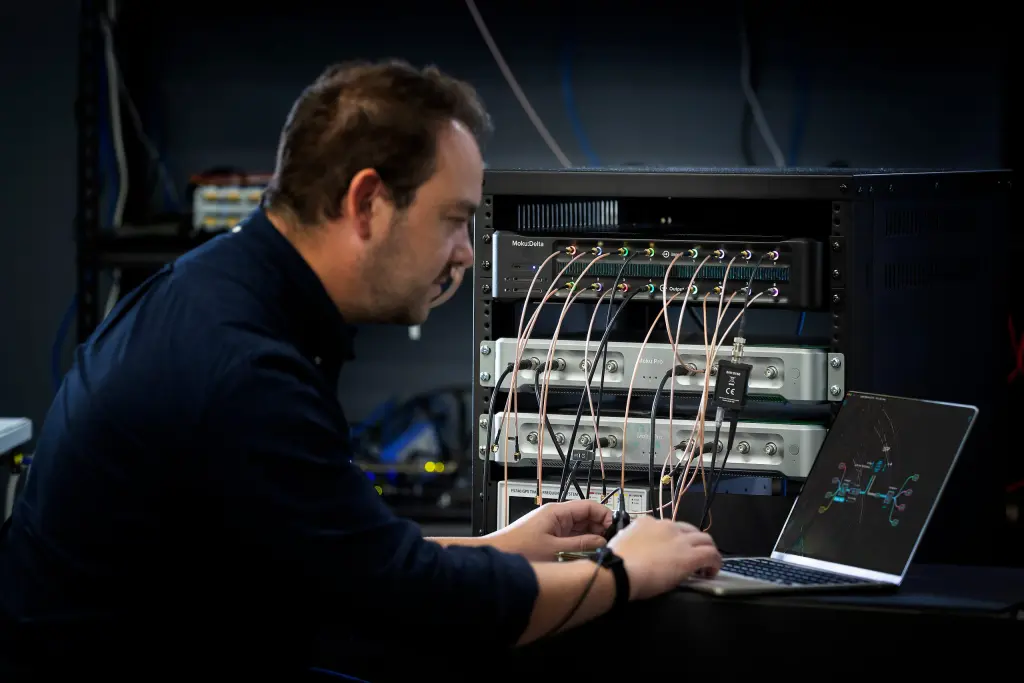

EMSO spectrum monitoring
GNSS signal emulation
Record/playback testing
AI/ML data collection
Integrates seamlessly with your tech stack
Precision timing for multi-site signal acquisition
Correlate data captured across multiple test systems with GNSS-referenced timestamps. Precise timing across geographically separated measurement sites simplifies data alignment and enables applications such as time difference of arrival (TDOA) geolocation, distributed spectrum monitoring, and multi-site signal analysis. Reduce the complexity of synchronizing datasets from multiple receivers and spend less time preparing data for analysis.
Specifications
Moku:Delta | |||
|---|---|---|---|
| Learn more | |||
Moku:Delta | |||
| Learn more | |||
| Technical specifications | Gigabit StreamerGigabit Streamer+ | ||
| Channels | Up to 2 Up to 6 | ||
| Data streaming rate | Up to 5 Gbps Up to 80 Gbps | ||
| Sampling rate | Up to 312.5 MSa/s Up to 5 GSa/s | ||
| Transmit MTU | Up to 1,500 bytes Up to 1,500 bytes | ||
| Receive MTU | Up to 1,500 bytes Up to 1,500 bytes | ||
| Transmit sample size | 16-bit or 32-bit 16-bit or 32-bit | ||
| Receive sample size | 16-bit 16-bit | ||
*Gigabit Streamer+ is subject to export controls and restrictions.
