Introducing

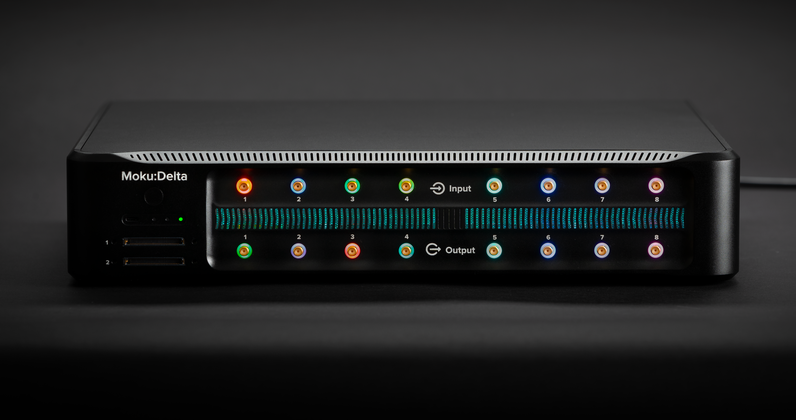

Moku:Delta

Liquid Instruments 4th Generation hardware. Accelerate product design and validation through mixed-signal analysis, 2 GHz instantaneous bandwidth, and an ultra-low-noise, high-resolution front end.

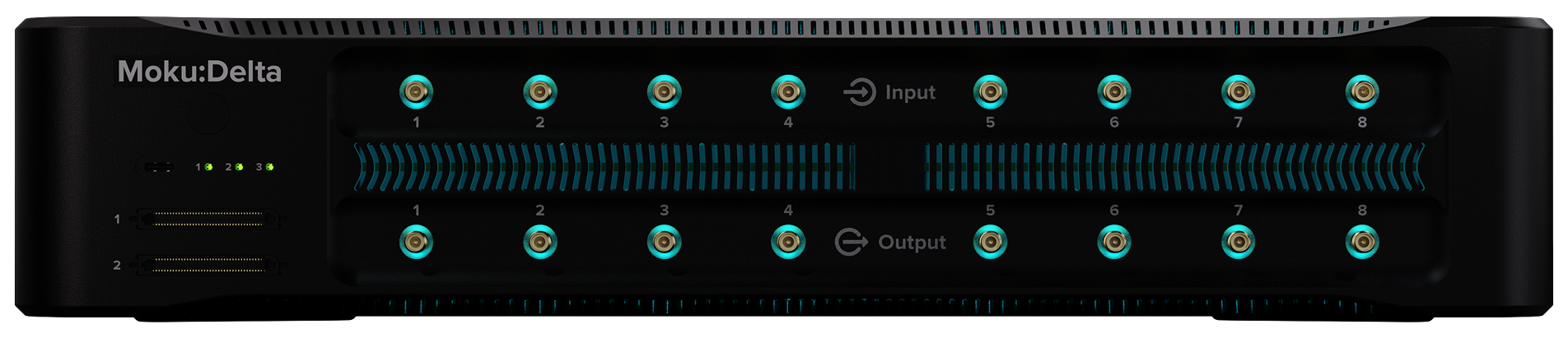

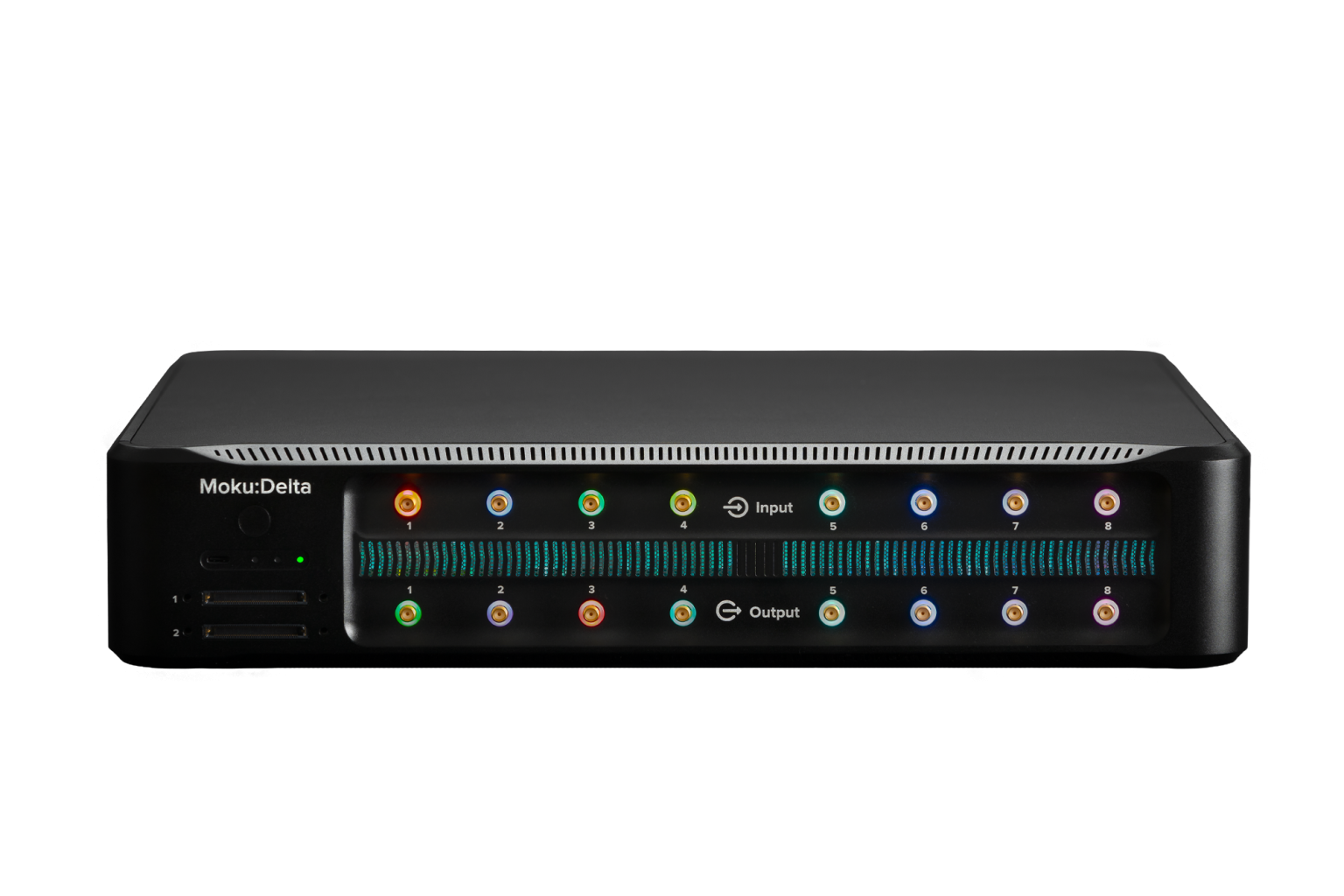

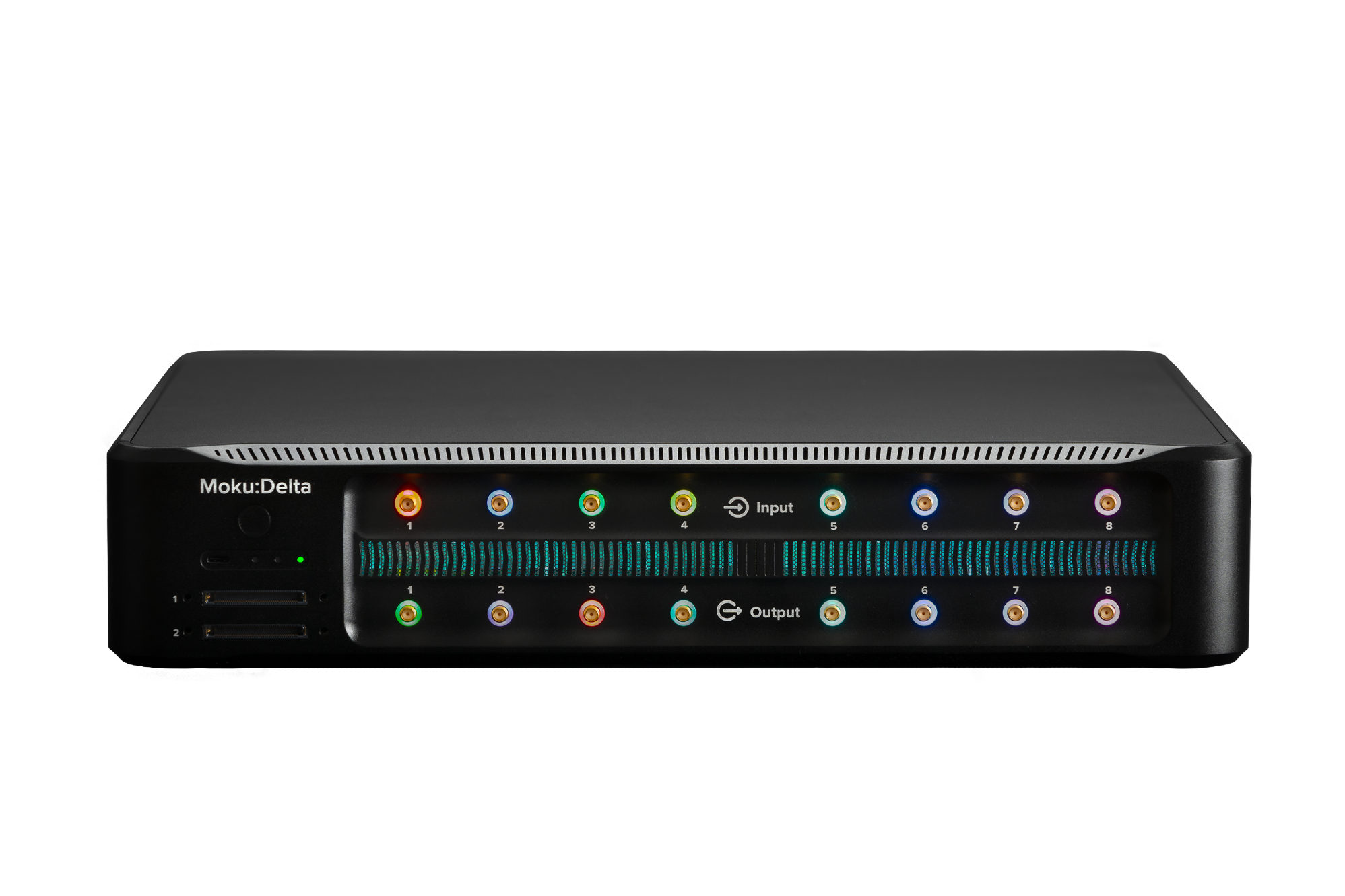

Moku-AF_Monotone-Channels_Front_Backlit_Vent 1

Key specifications

8 inputs, 8 outputs 2 GHz, 5 GSa/s
Noise floor 10 nV/√Hz at 100 Hz
Clock stability 1 ppb
FPGA Powered Xilinx RFSoC
View all specs

New to Moku?

Moku is a reconfigurable test and measurement device that integrates a full suite of instruments into a single device. With consistent, powerful software, make intuitive and precise measurements using powerful, FPGA-enabled hardware. Watch the video to learn more.

FPGA-powered hardware At the core of every Moku is a powerful FPGA to enable fast, parallel processing. Combined with a precision analog front end, Moku delivers both exceptional performance and versatility.

Reconfigurable instruments Deploy any of 15 instruments to the same hardware. Combine instruments in Multi-Instrument mode or create your own using Moku Cloud Compile.

Flexible, intuitive software One user interface with consistent controls across instruments simplifies configuring, running, and automating tests and experiments.

Trusted by

logo_nasa Intuitive logo Stanford University logo Analog Devices logo logo-caos Google Qualcomm logo

Moku hardware

Choose from four efficient hardware options to unlock an unparalleled combination of performance, speed, and flexibility.

Moku:Delta

Moku:Delta

Starting at $60,000
Accelerate product design and validation through mixed-signal analysis, 2 GHz instantaneous bandwidth, and an ultra-low-noise, high-resolution front end.
Moku:Pro

Moku:Pro

Starting at $15,000
Meet demanding R&D requirements with four simultaneous instruments, each supporting bandwidths to 600 MHz.

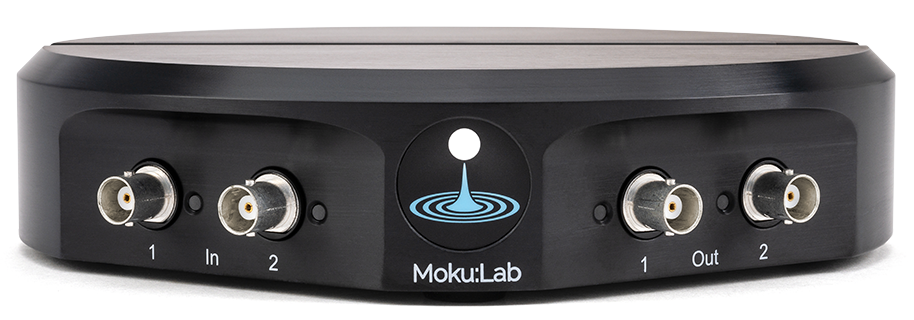

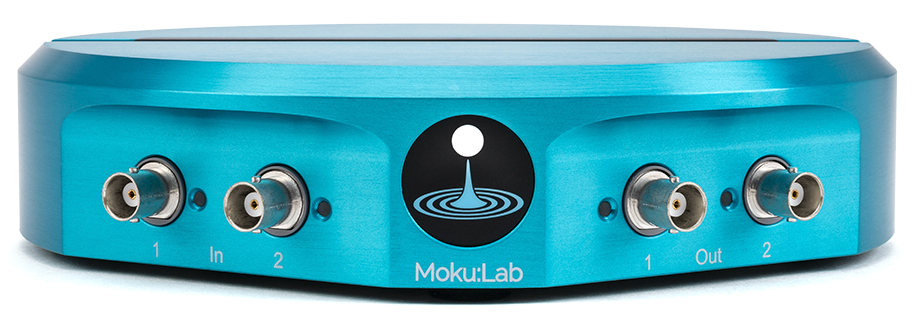

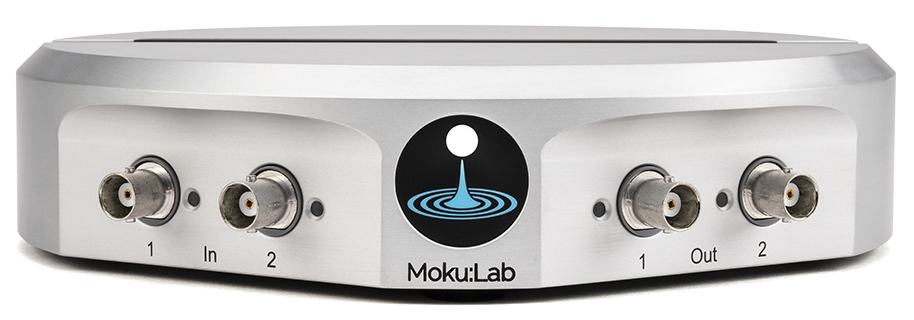

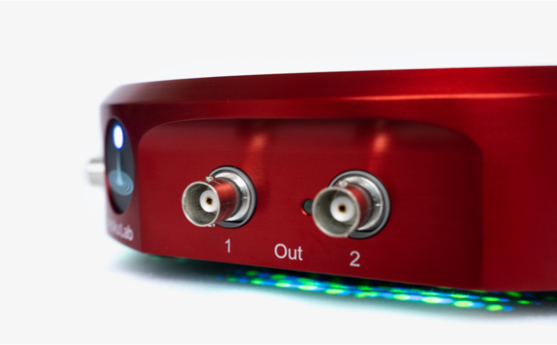

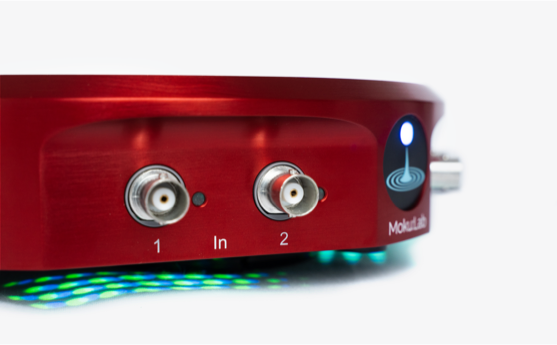

Moku:Lab

Moku:Lab

Starting at $5,000
Enable flexible testing with 200 MHz bandwidth, low-latency control, and affordable multi-instrument integration.
Moku:Go

Moku:Go

Starting at $599
Tackle everyday lab tasks with this versatile, easy-to-use solution for quick experiments and testing with 30 MHz bandwidth.

The instruments you need, when you need them

With Moku, you gain access to 15+ powerful instruments. Upgrade your instruments and get new instruments whenever you need them, with a simple software download.

Analysis
Generation
Control & Conditioning
Custom

Time & Frequency Analyzer

Learn More

Time & Frequency Analyzer

Use the Moku Time & Frequency Analyzer to count, timestamp, and events on multiple channels, all with low RMS jitter. Replace your frequency counter, event counter, photon counter, and more with one versatile instrument.

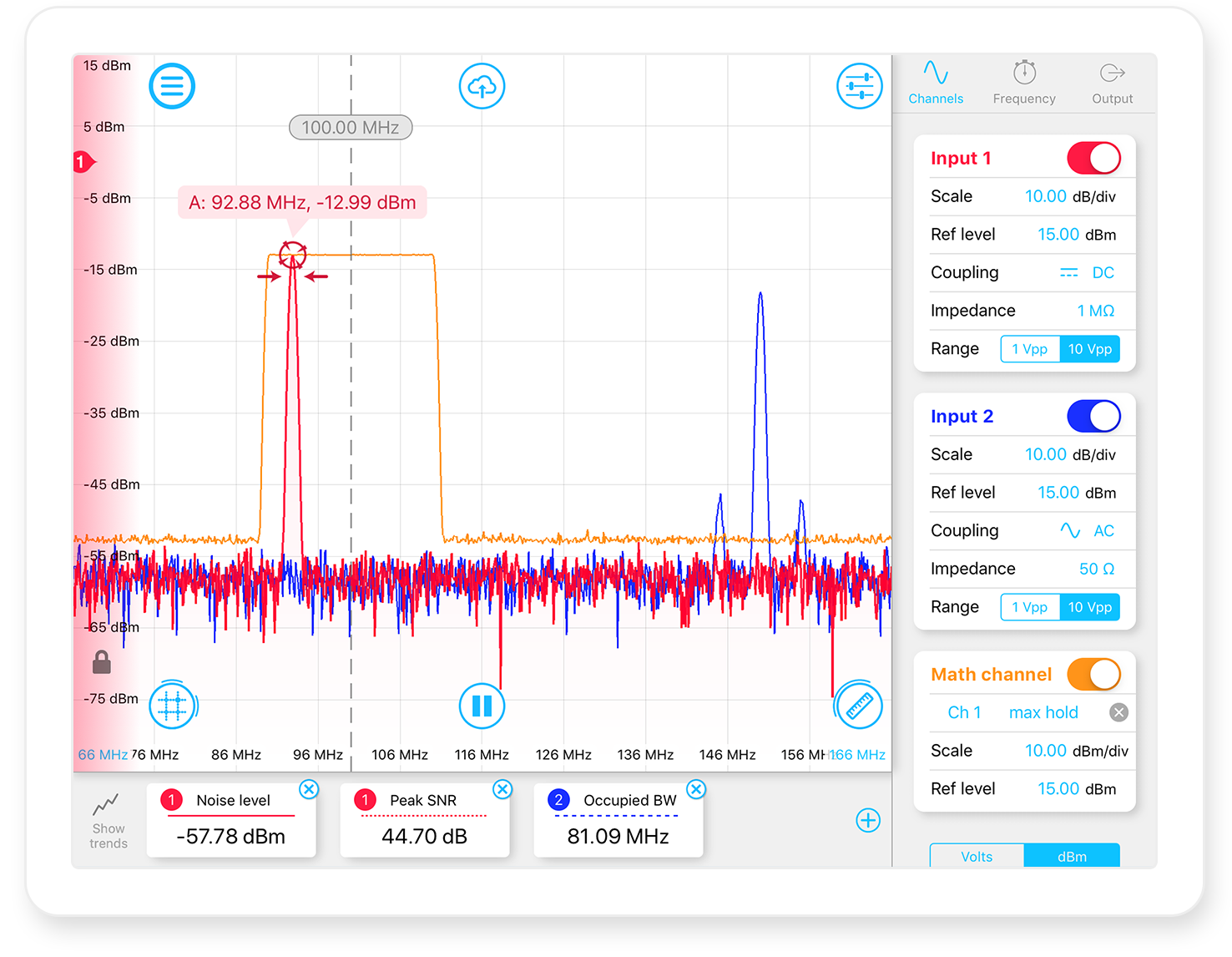

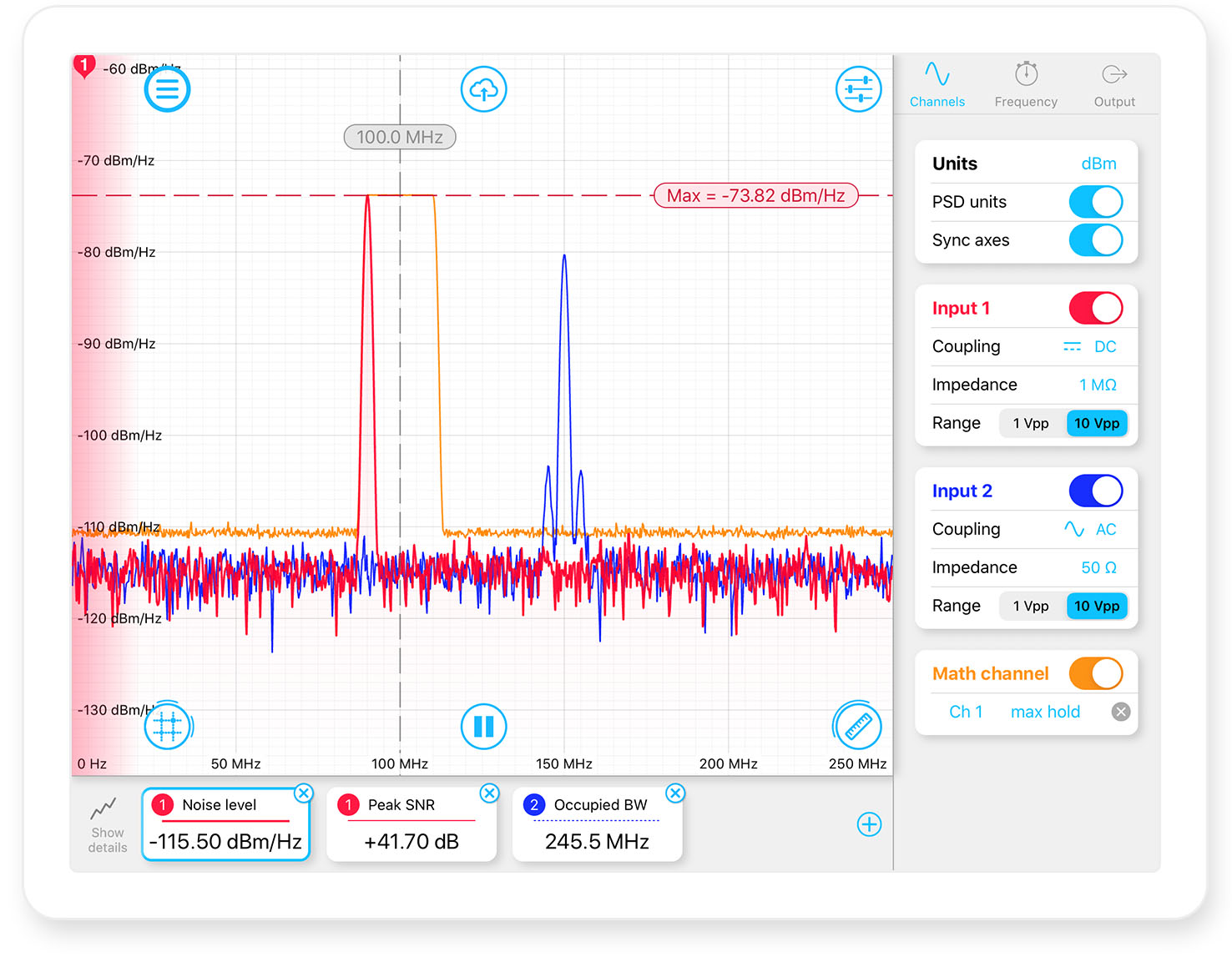

Spectrum Analyzer

Learn More

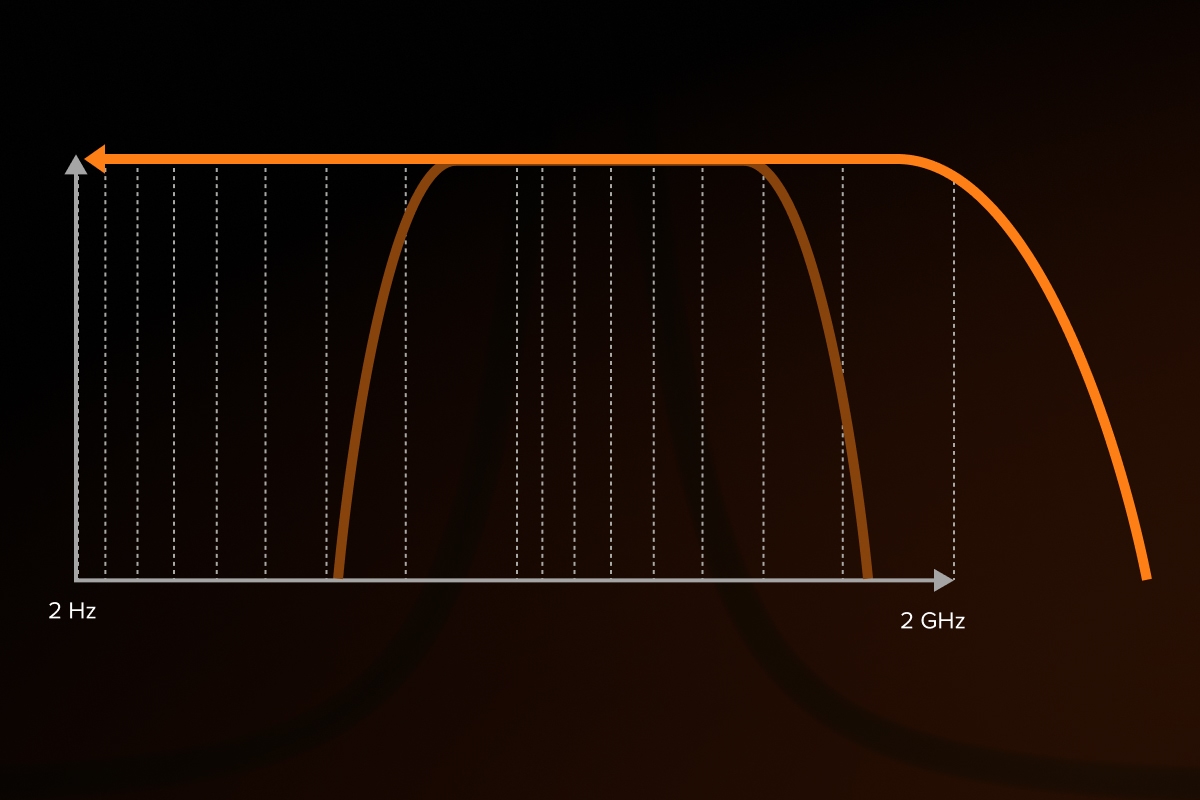

Spectrum Analyzer

The only Spectrum Analyzer that spans from 2 GHz all the way down to true DC. Observe input signals in the frequency domain with an ultra-low noise floor and a resolution bandwidth as low as 618.5 mHz.

Phasemeter

Learn More

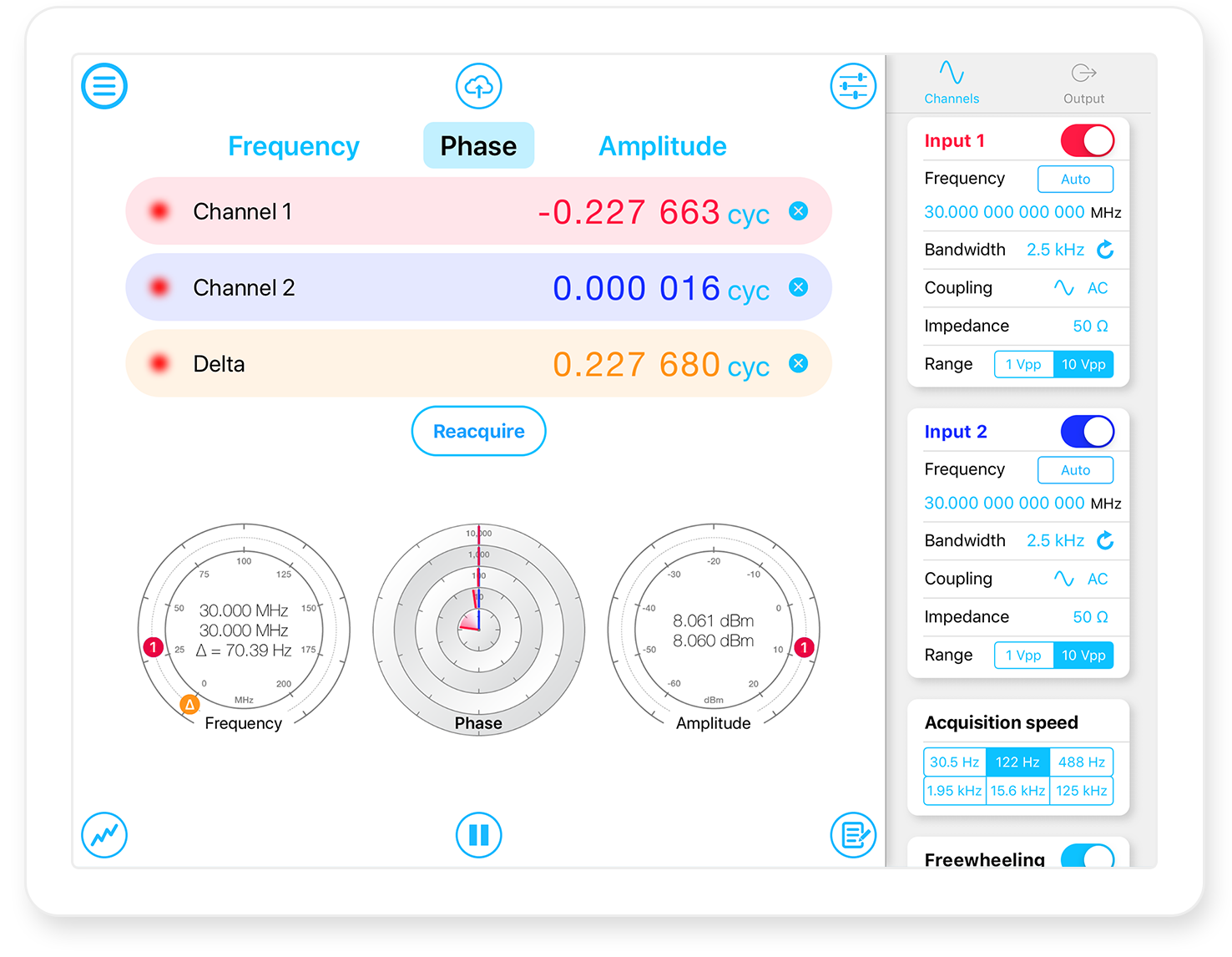

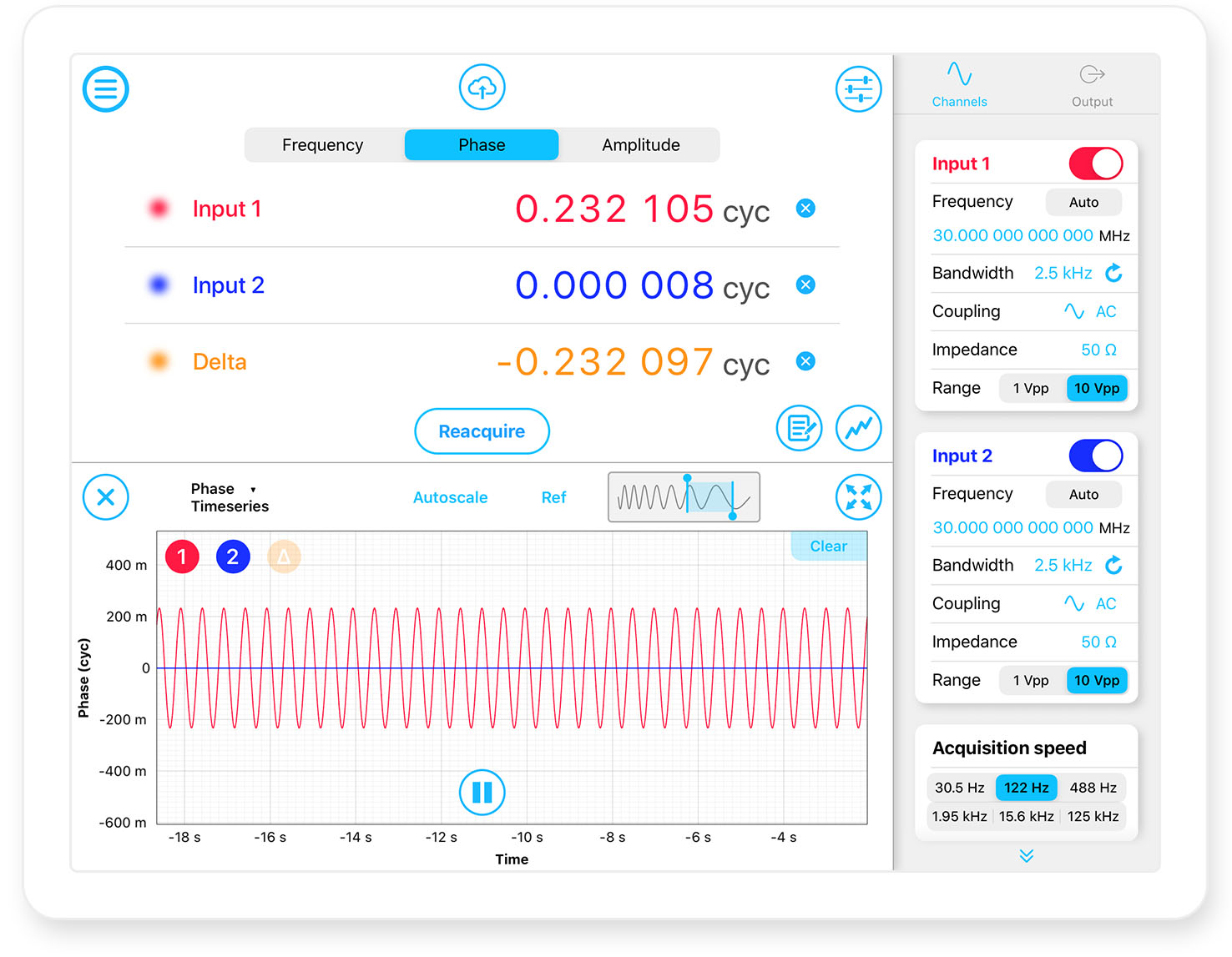

Phasemeter

Designed by researchers, the Moku Phasemeter is optimized to provide precise phase measurements. Measure phase, frequency, and amplitude with better than 1 nanoradian precision using a digital phase-locked loop architecture with exceptional dynamic range and zero dead time.

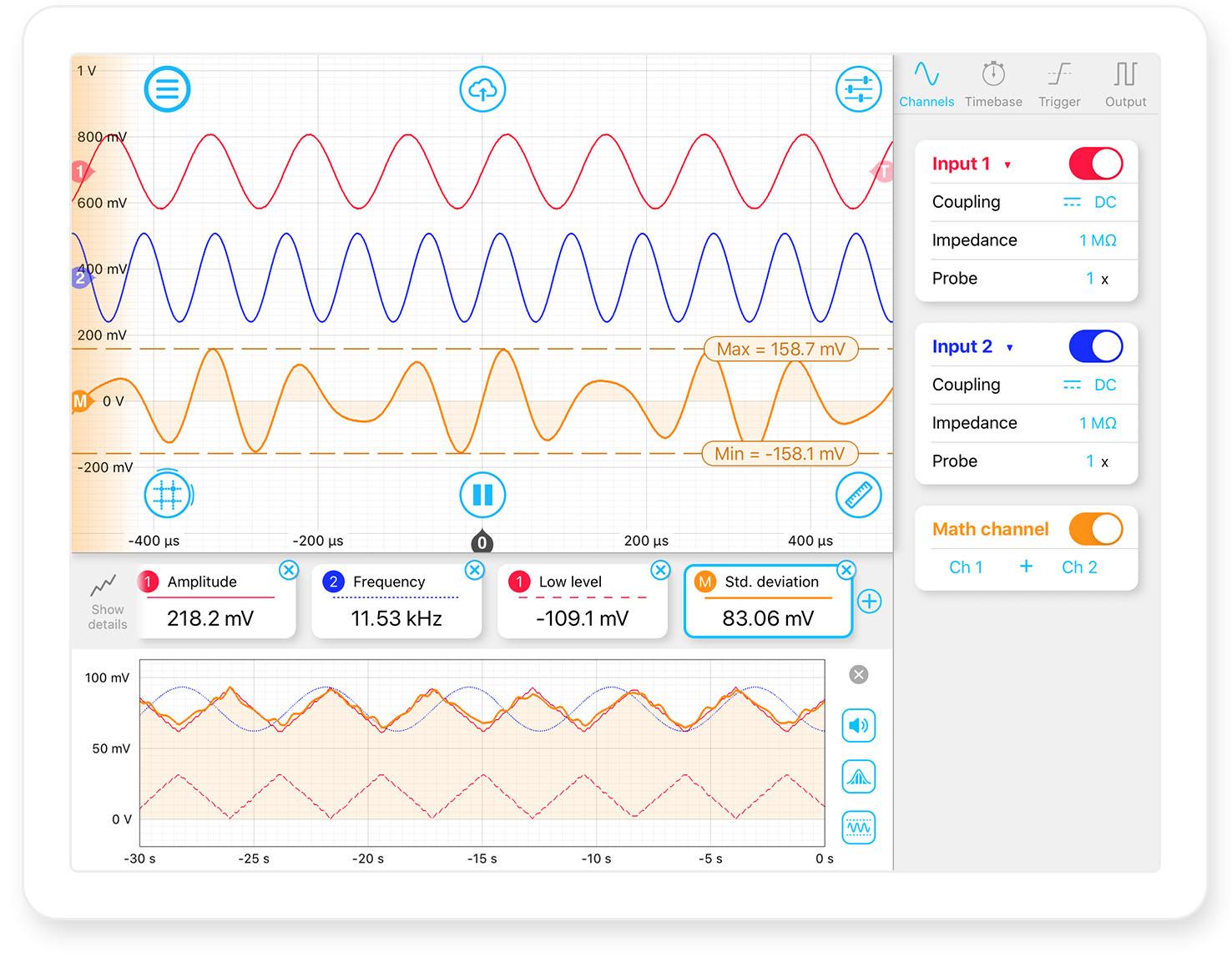

Oscilloscope

Learn More

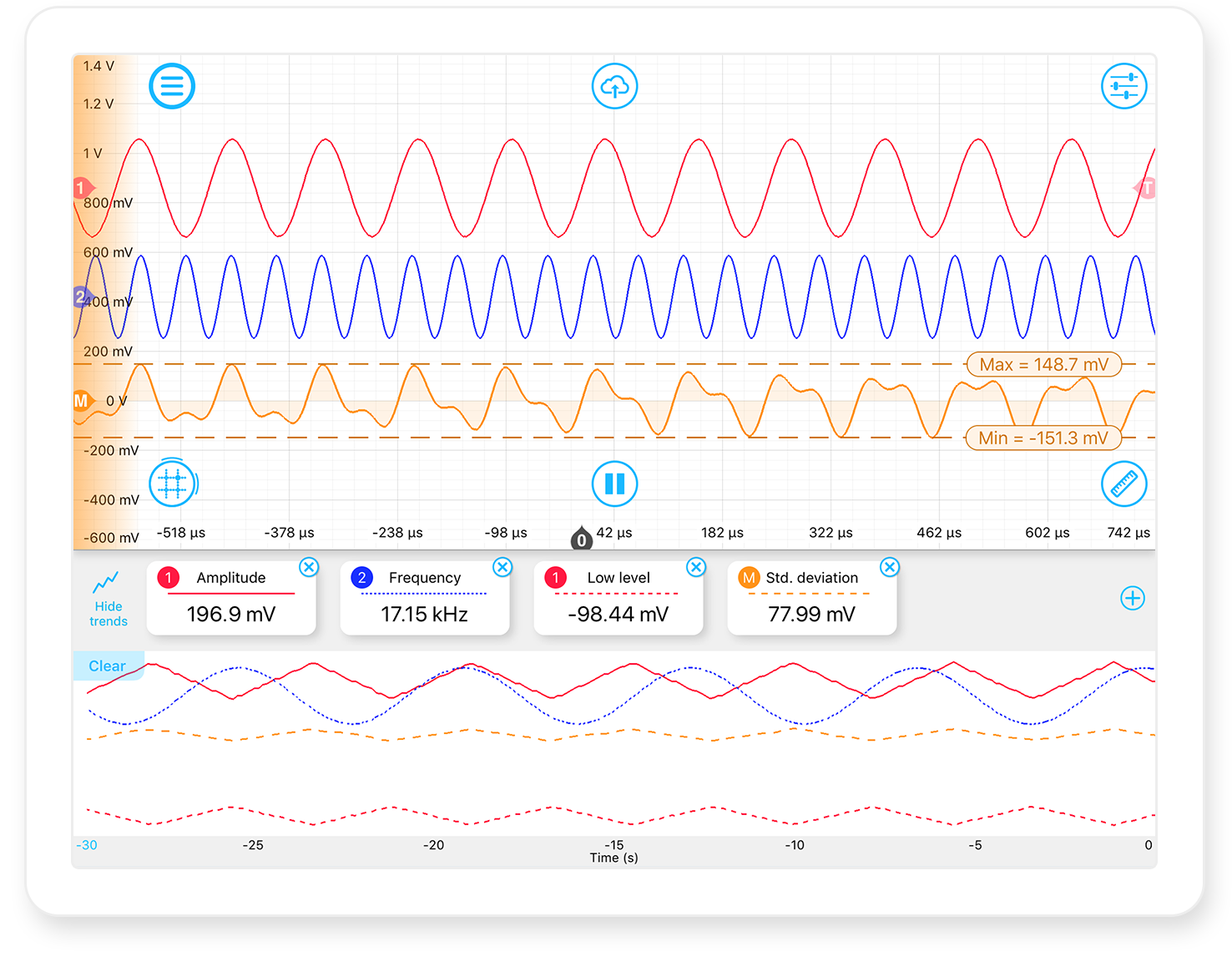

Oscilloscope

The highest-resolution 2 GHz Oscilloscope. Use up to eight channels at 5 GSa/s with ultra-low input noise achieved through patented ADC blending.

Logic Analyzer / Pattern Generator

Learn More

Logic Analyzer / Pattern Generator

Use up to 32 digital I/O channels and eight analog channels with configurable threshold sampling rates at up to 5 GSa/s for protocol analysis and pattern generation. Deploy it alongside additional Moku instruments for mixed-signal device characterization in one reconfigurable platform.

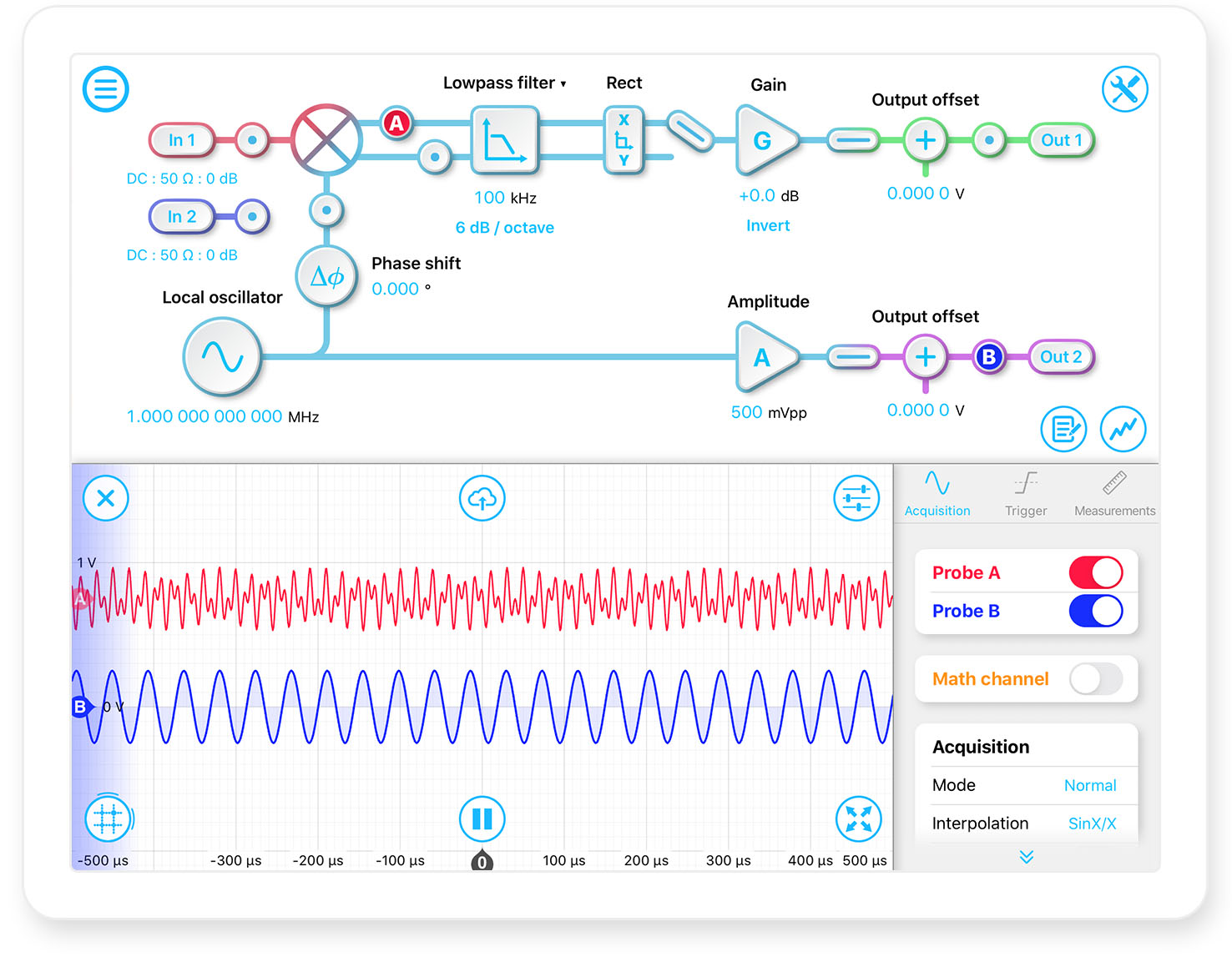

Lock-in Amplifier

Learn More

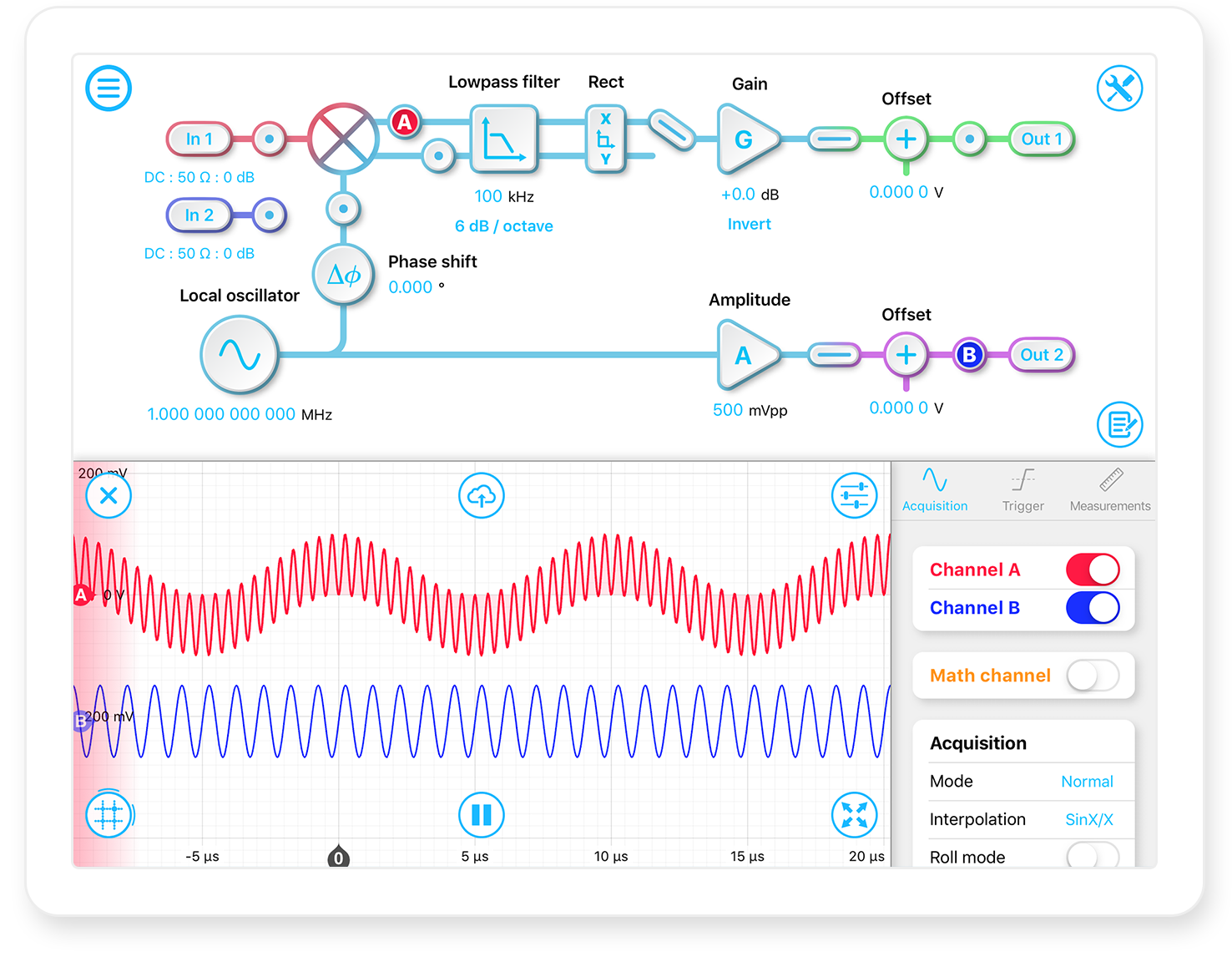

Lock-in Amplifier

Perform dual-phase demodulation up to 2 GHz with an excellent dynamic reserve. With an easy-to-use interface, and a leading cost-per-channel in all classes, the Moku Lock-in Amplifier adapts to the evolving demands of cutting-edge scientific experiments.

Frequency Response Analyzer

Learn More

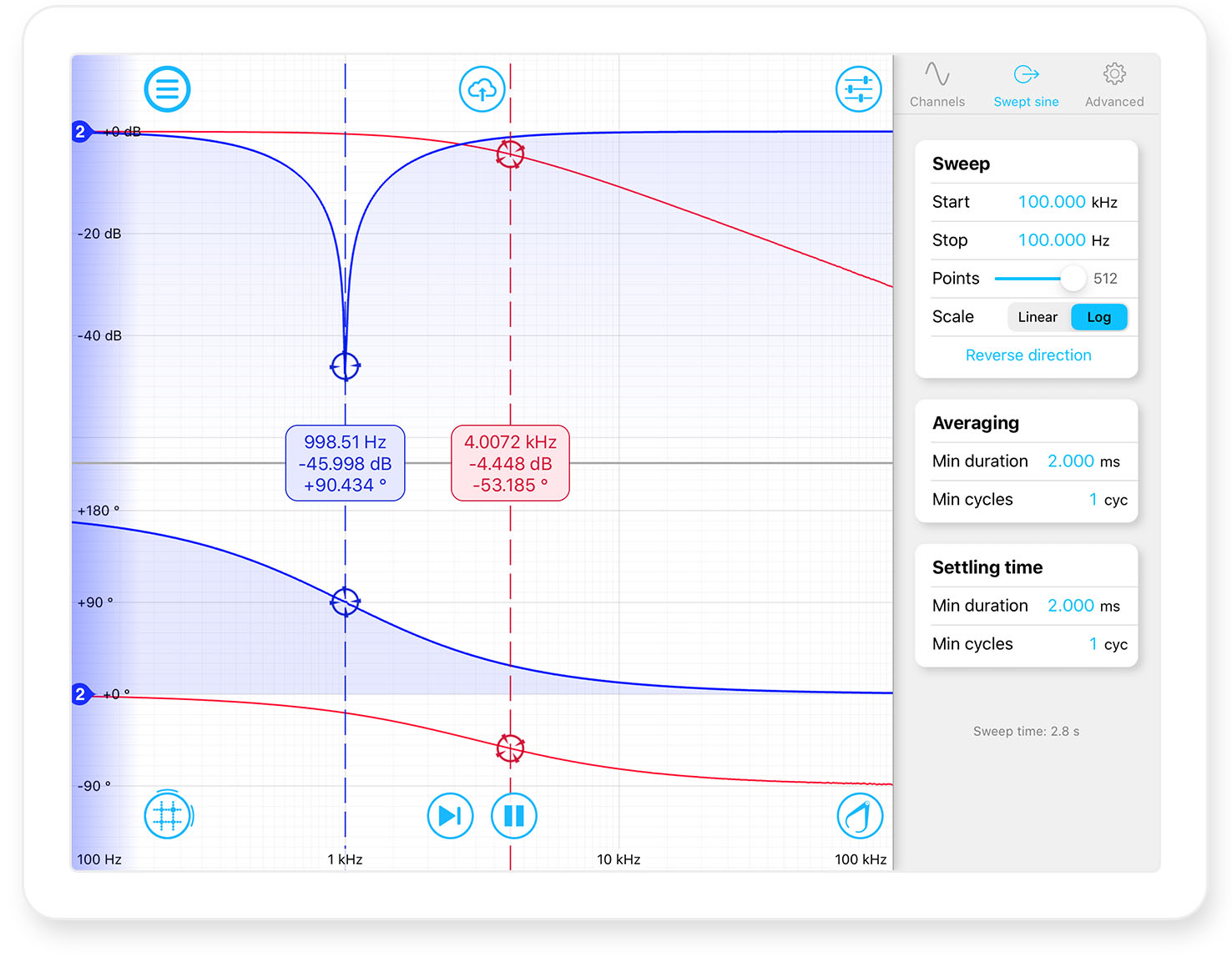

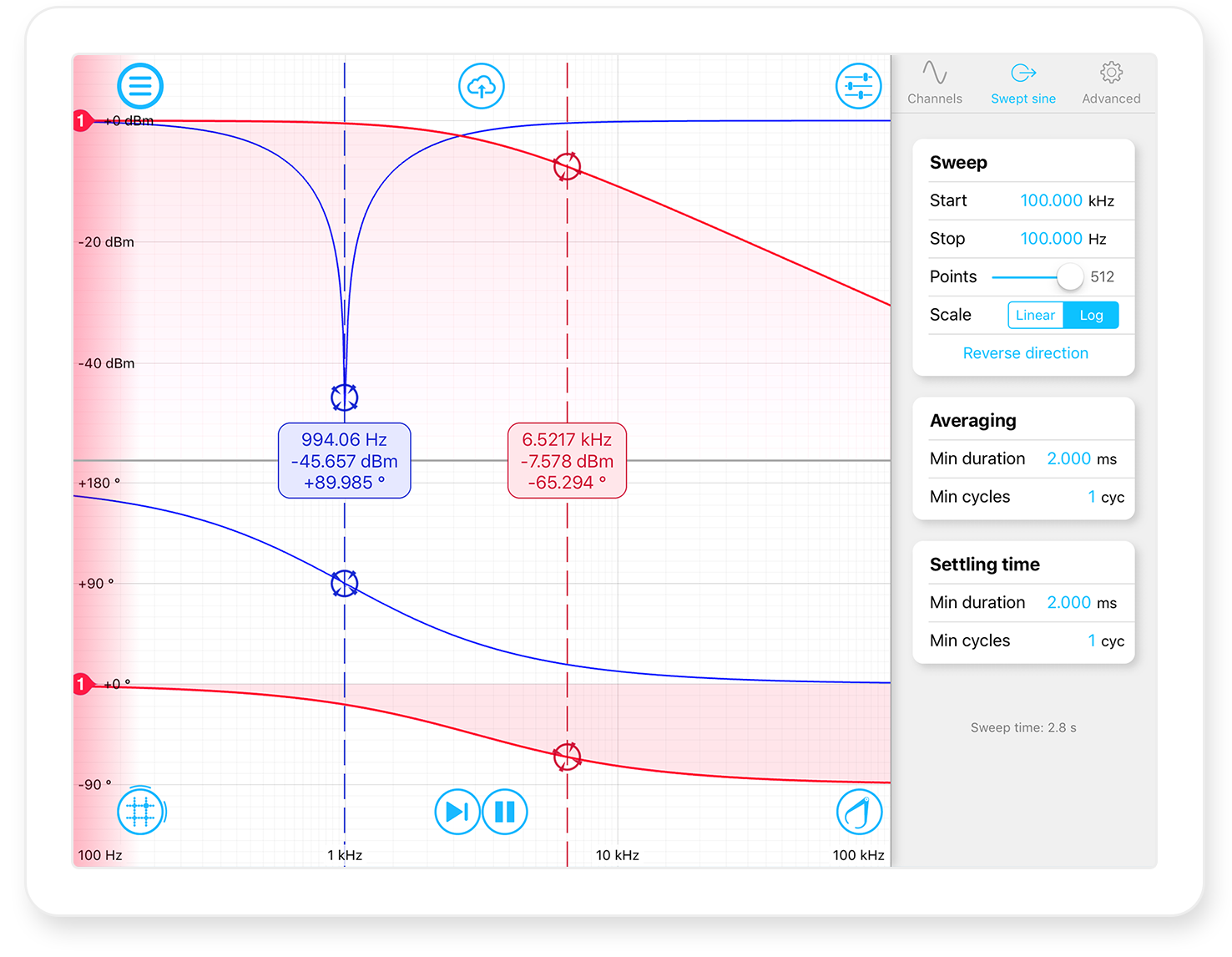

Frequency Response Analyzer

Perform multi-channel Bode analysis with up to eight inputs and outputs, including differential or ratiometric measurements. Quickly measure the frequency response or transfer function of a device under test with industry-leading noise performance and bandwidth.

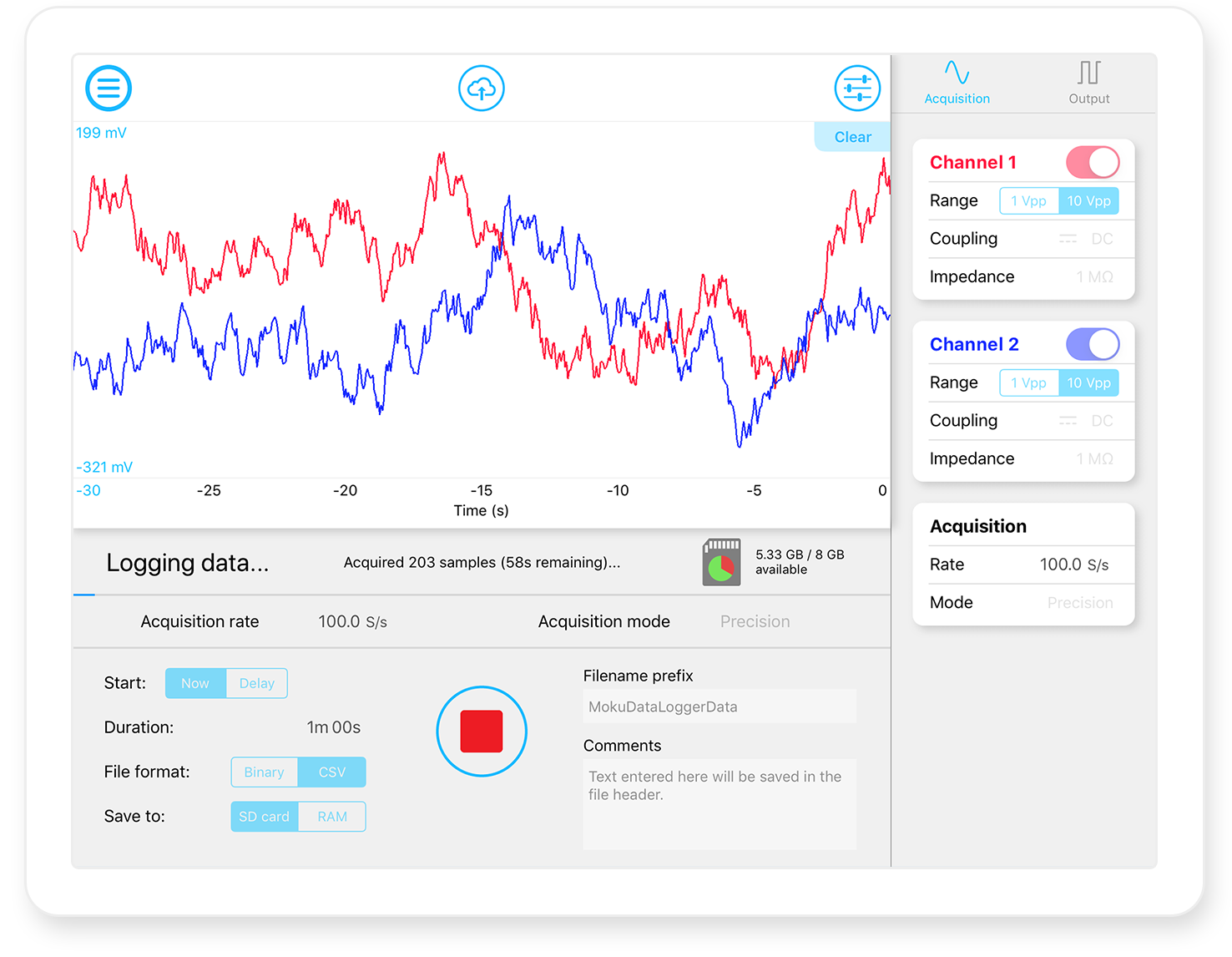

Data Logger

Learn More

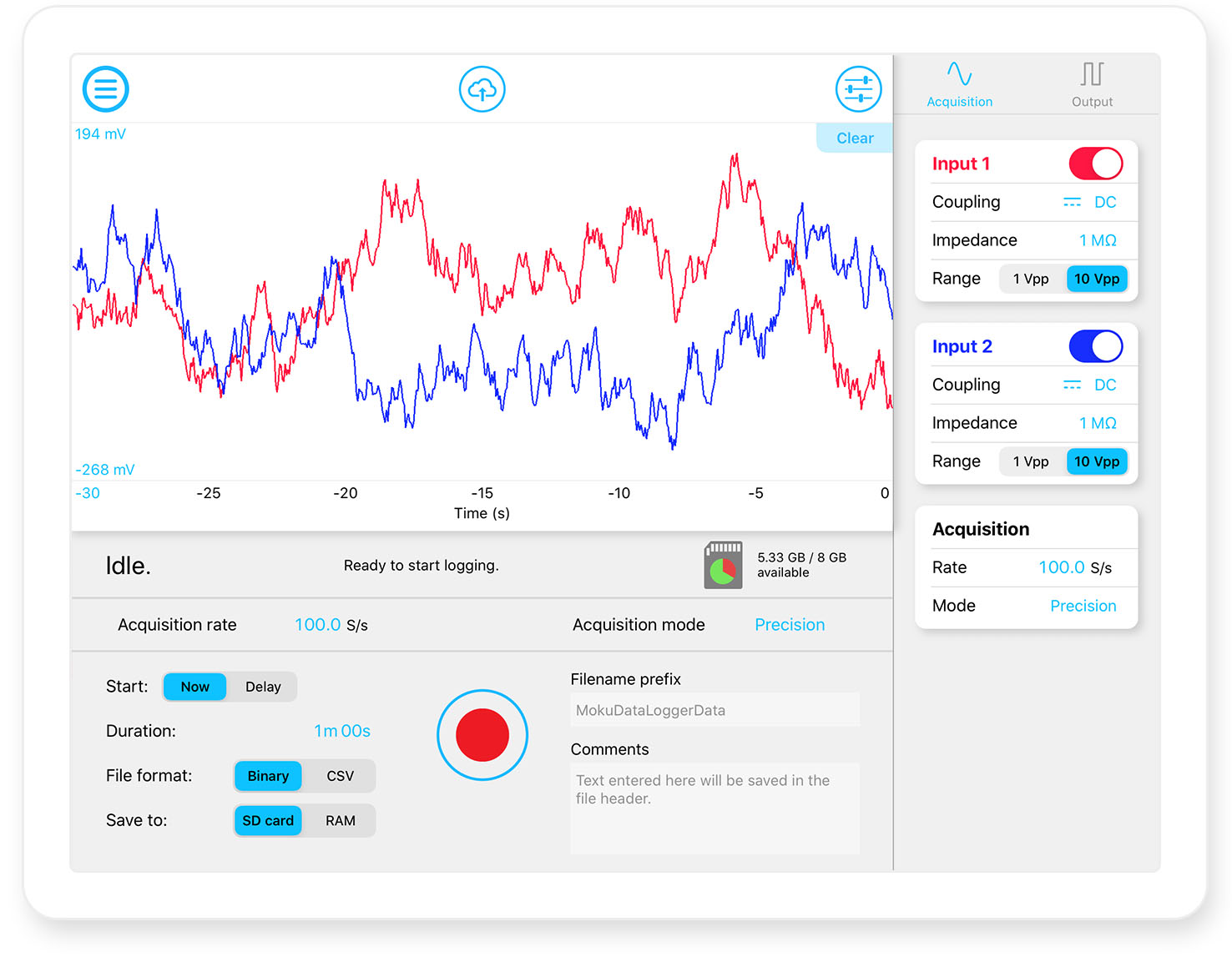

Data Logger

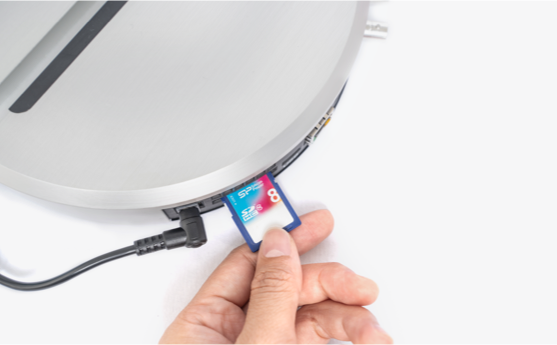

Log data directly to an SD card, a networked disk, or internal memory with sampling rates of up to 10 MSa/s. On Moku:Delta, blended ADC technology reduces input noise to < 10 nV / √Hz, providing ultra low-noise data logging from acoustic to RF frequencies with an integrated 1 TB SSD.

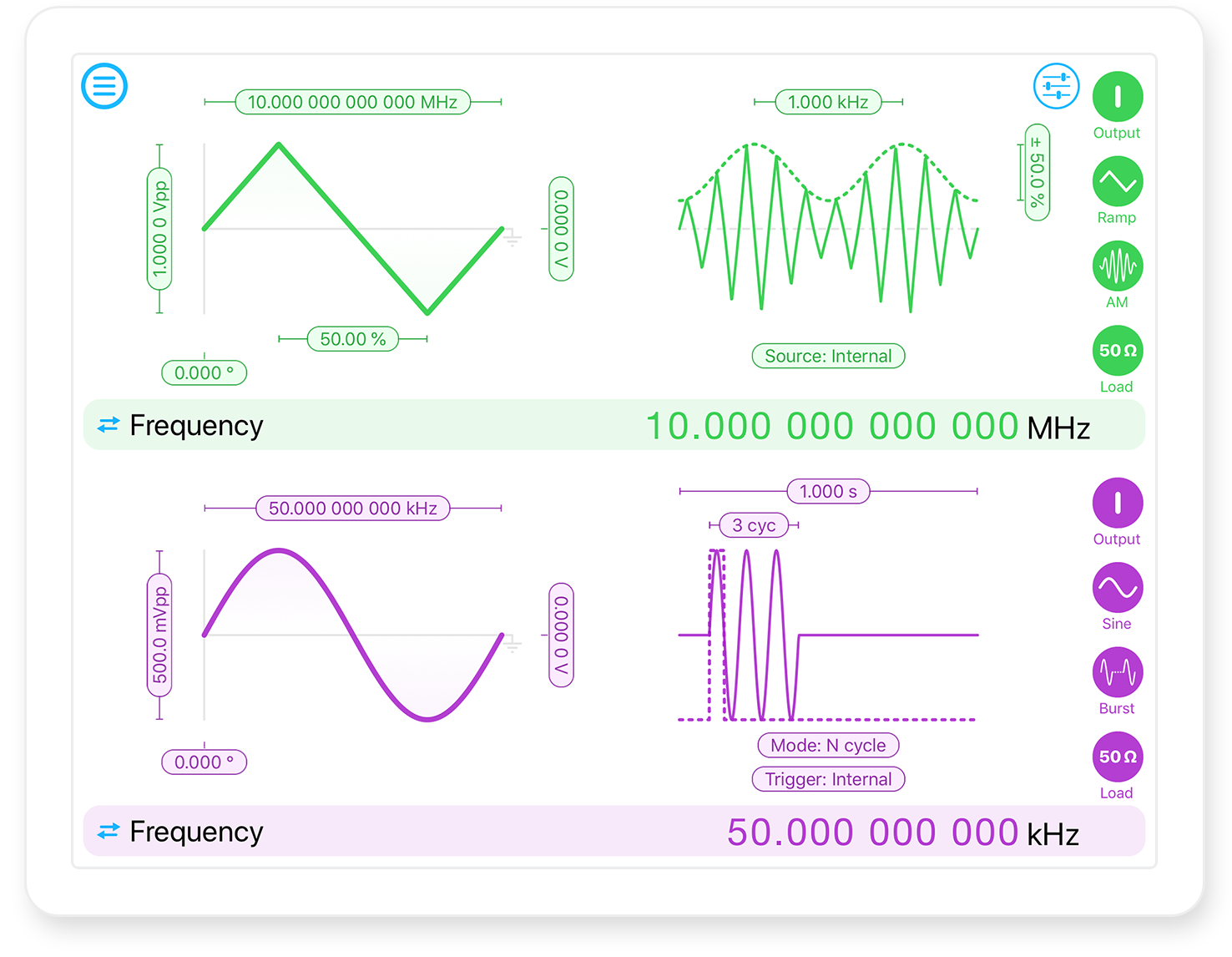

Waveform Generator

Learn More

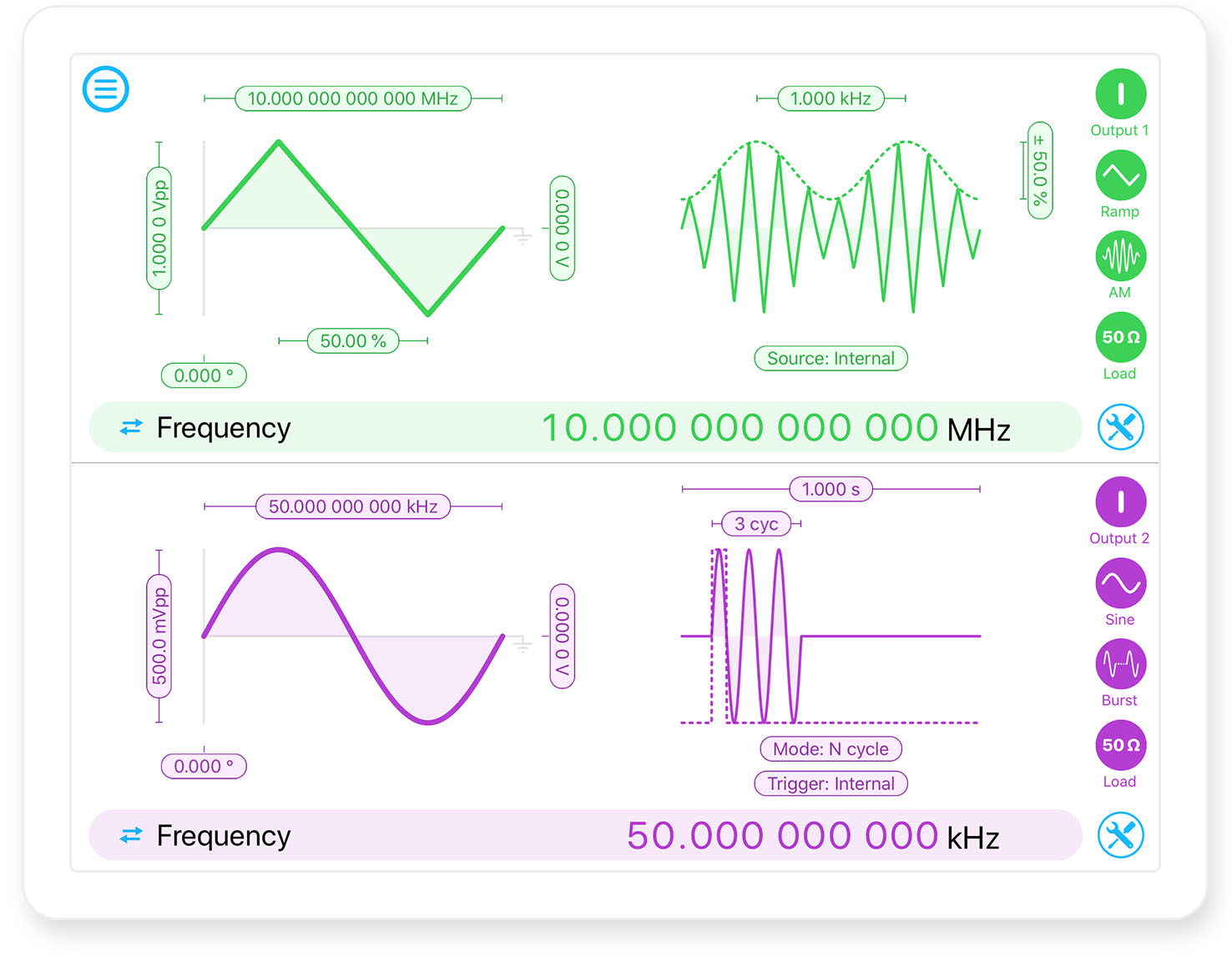

Waveform Generator

Generate up to eight independent, phase-synchronized waveforms, with a maximum bandwidth of 2 GHz. Select between common waveform types and apply phase, frequency, amplitude, or pulse-width modulation to internally or externally generated signals.

Arbitrary Waveform Generator

Learn More

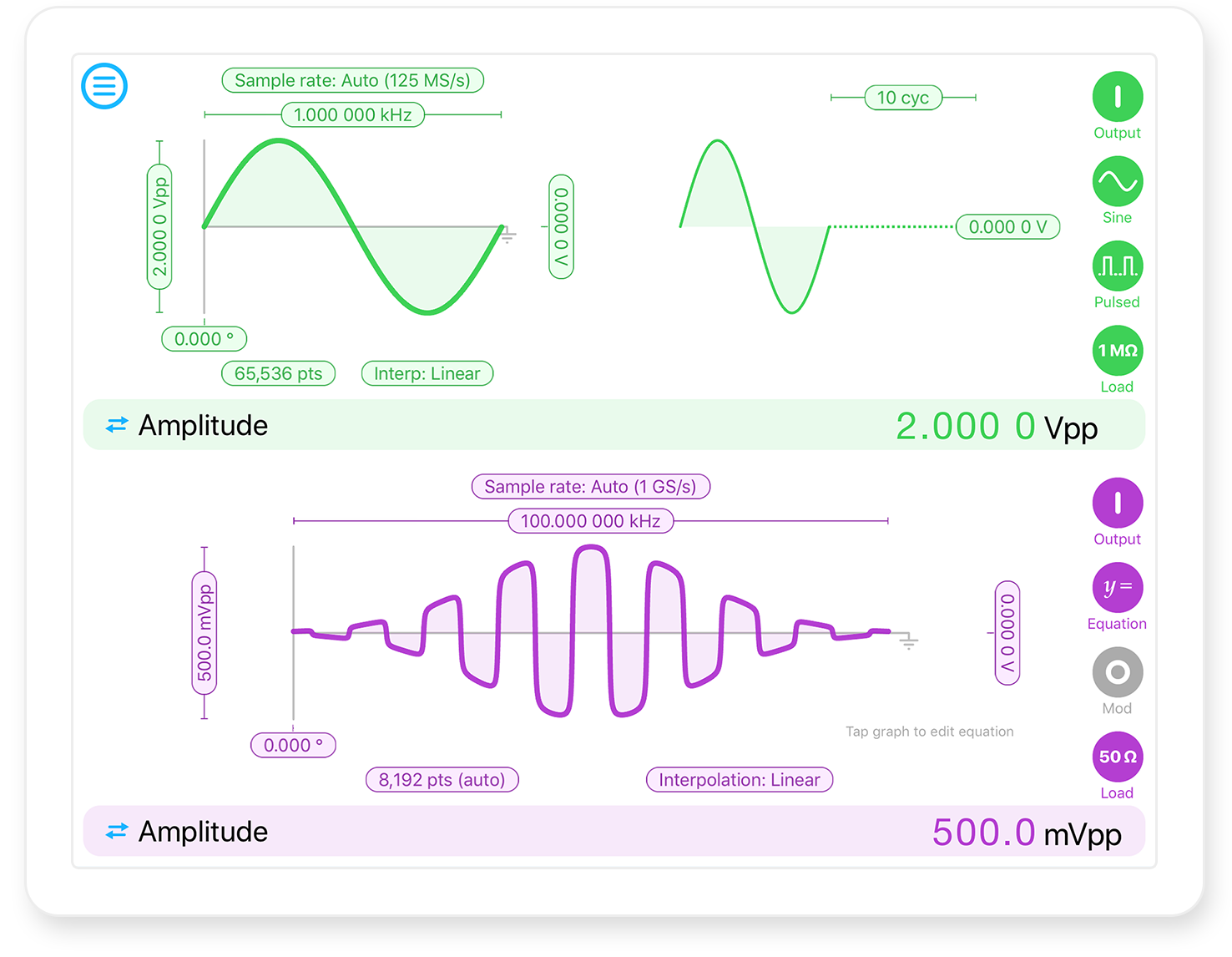

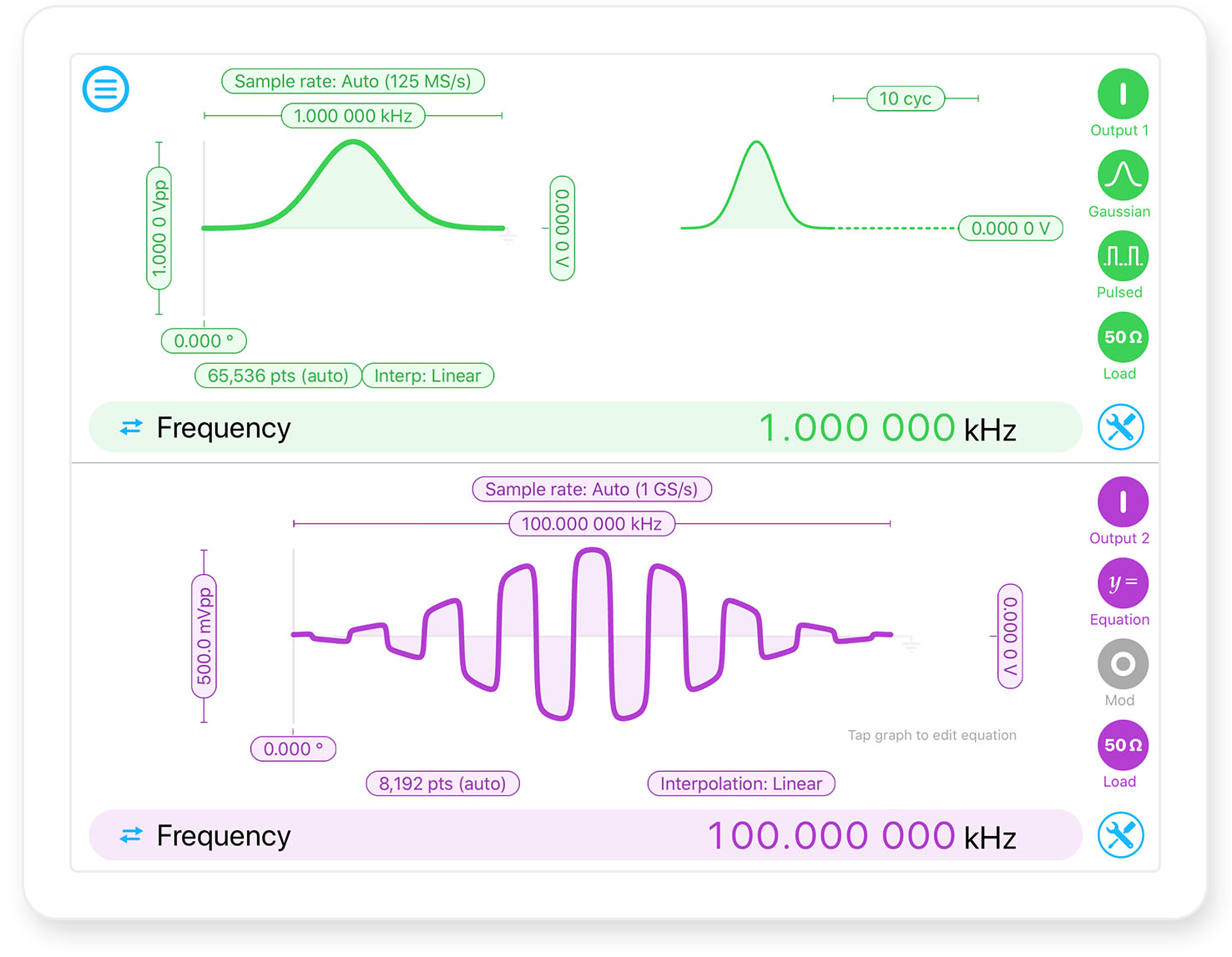

Arbitrary Waveform Generator

Generate custom waveforms with sample rates of up to 5 GSa/s. For maximum flexibility to generate truly arbitrary waveforms, load waveforms from a file or input them as piece-wise mathematical functions with up to 32 segments.

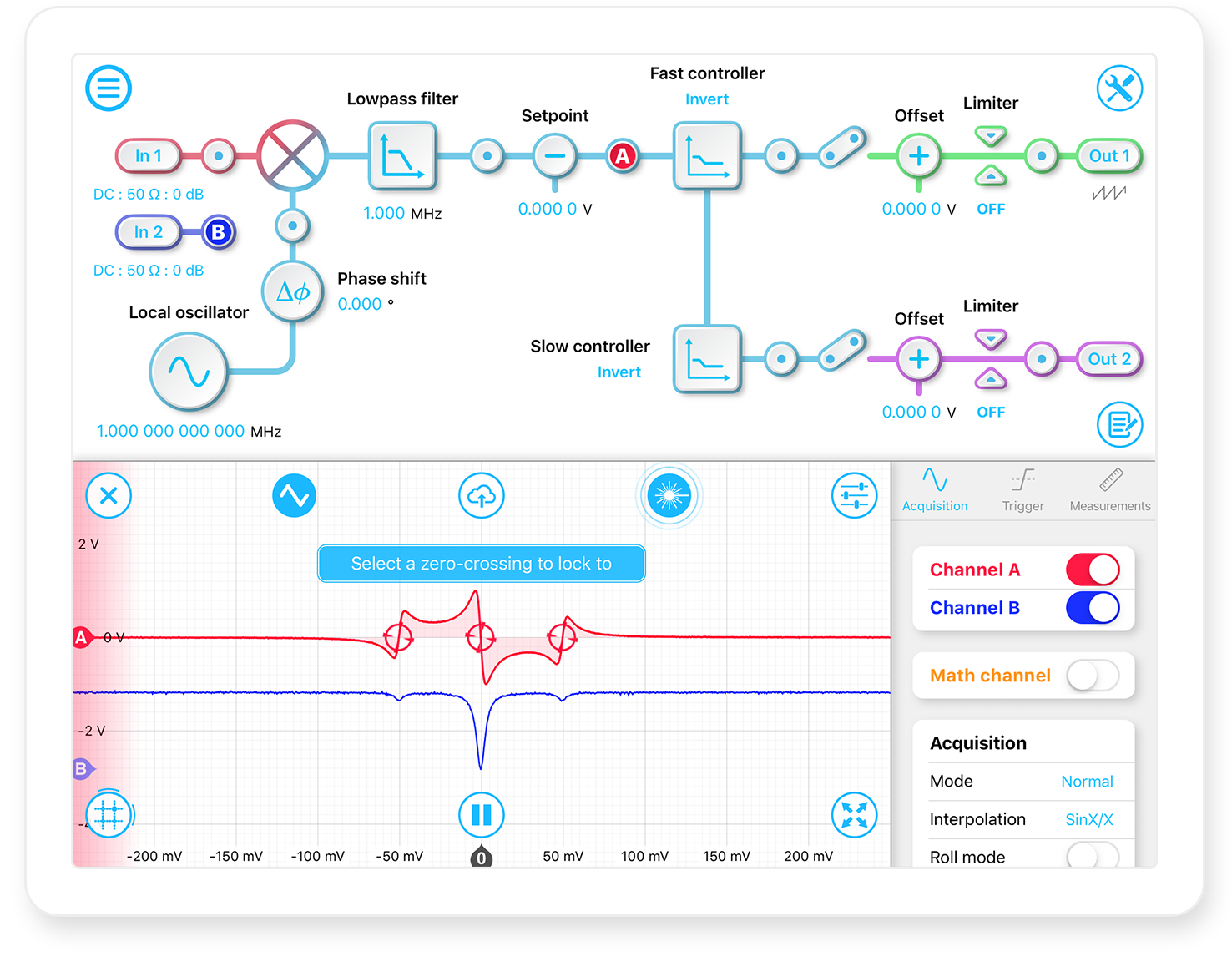

Laser Lock Box

Learn More

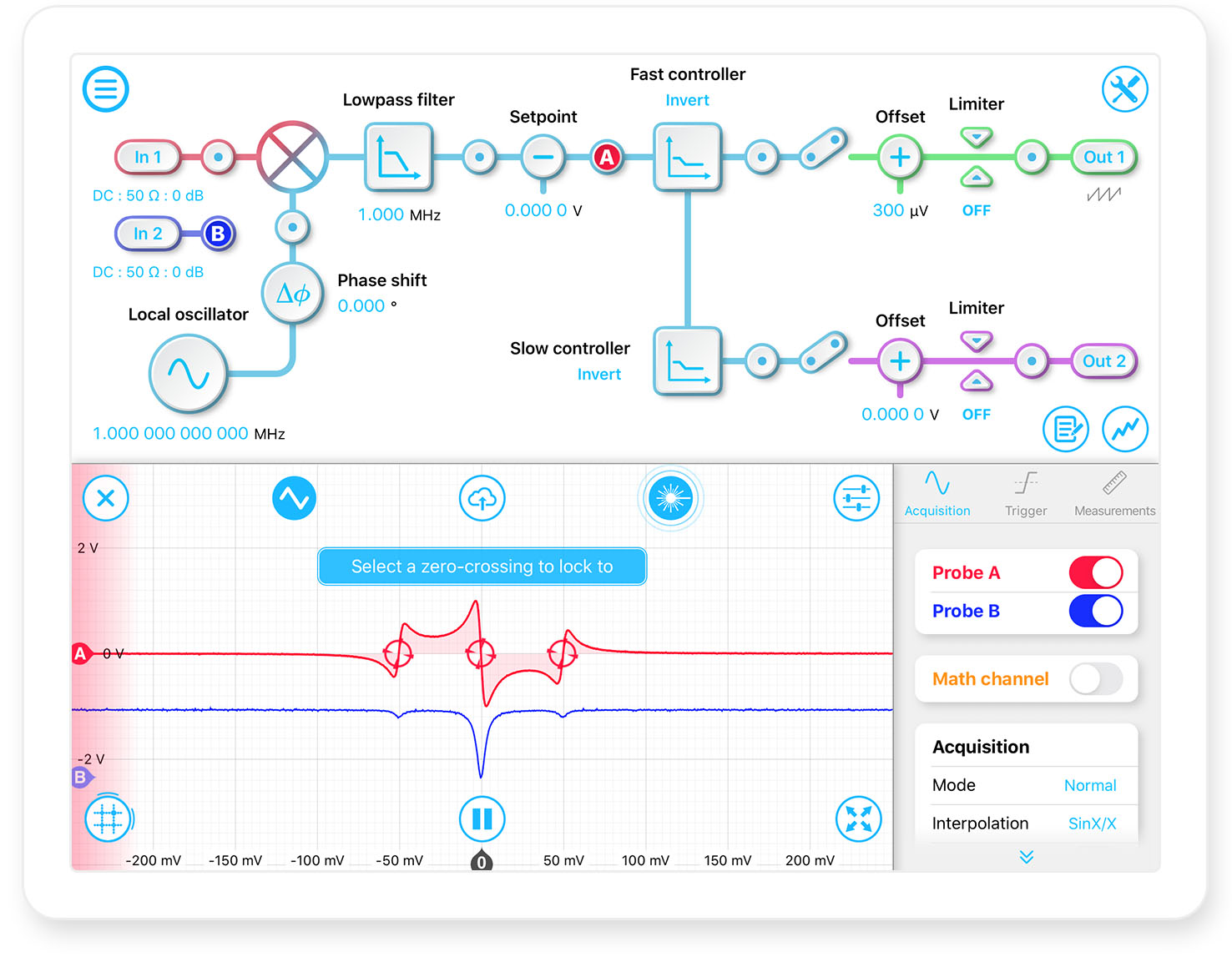

Laser Lock Box

Quickly and precisely lock your laser with this complete, FPGA-based laser locking system. It replaces multiple separate components with a single, easy-to-use device, reducing distortion and insertion loss while simplifying the locking process.

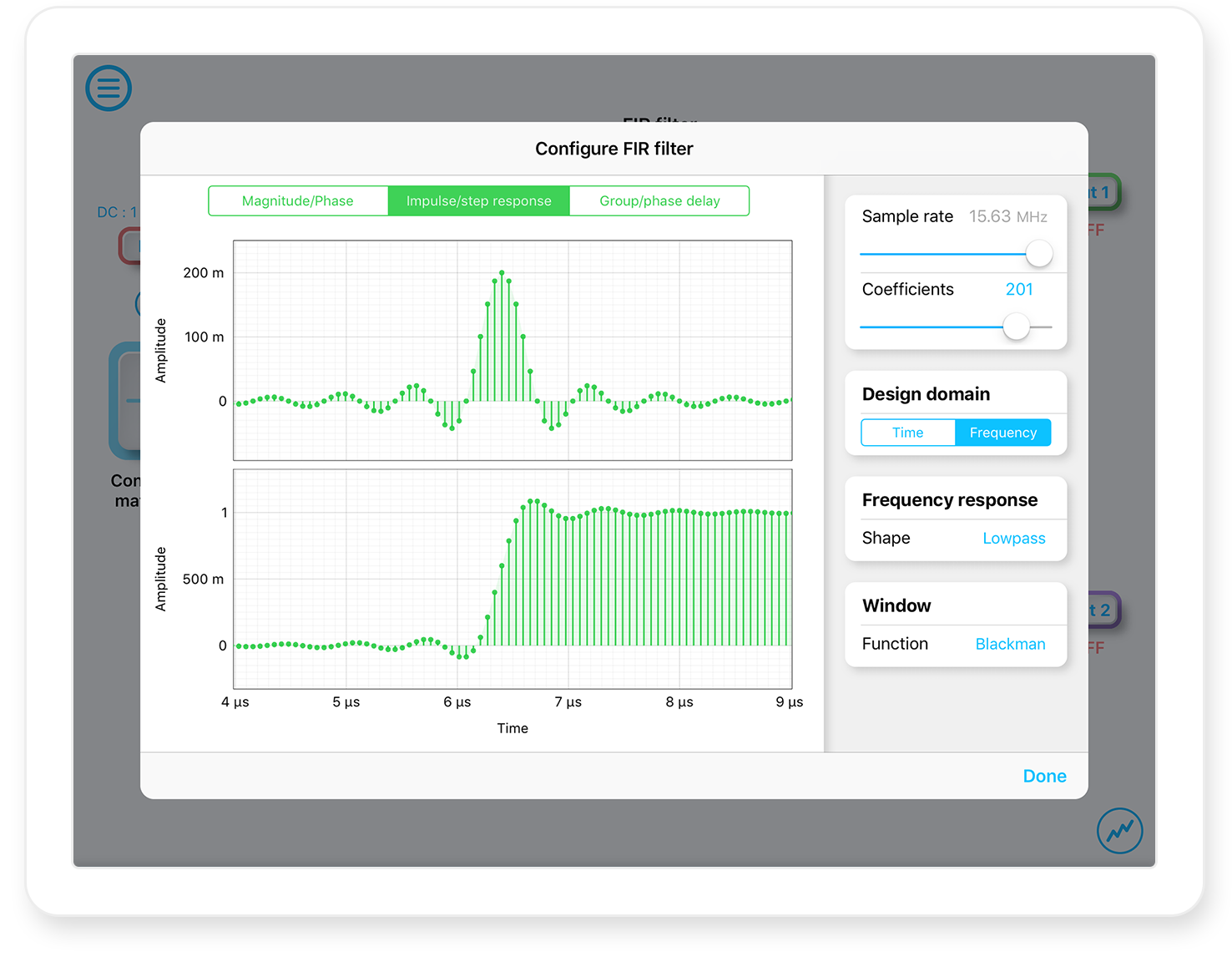

FIR Filter Builder

Learn More

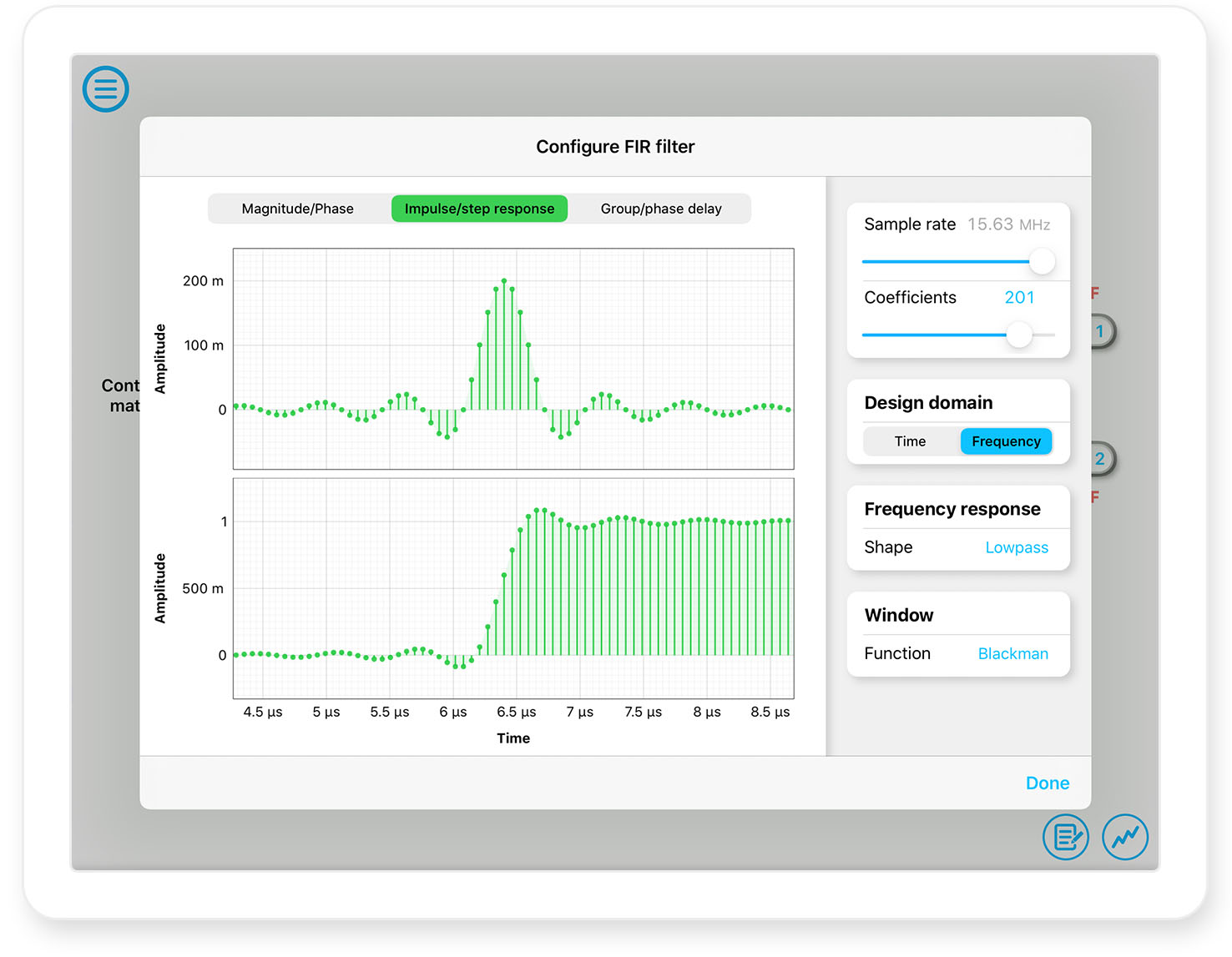

FIR Filter Builder

Design and implement finite impulse response (FIR) filters in the frequency or time domain. Select between predefined frequency response shapes, impulse responses, and window functions. Fine-tune in real time using intuitive visualization and control.

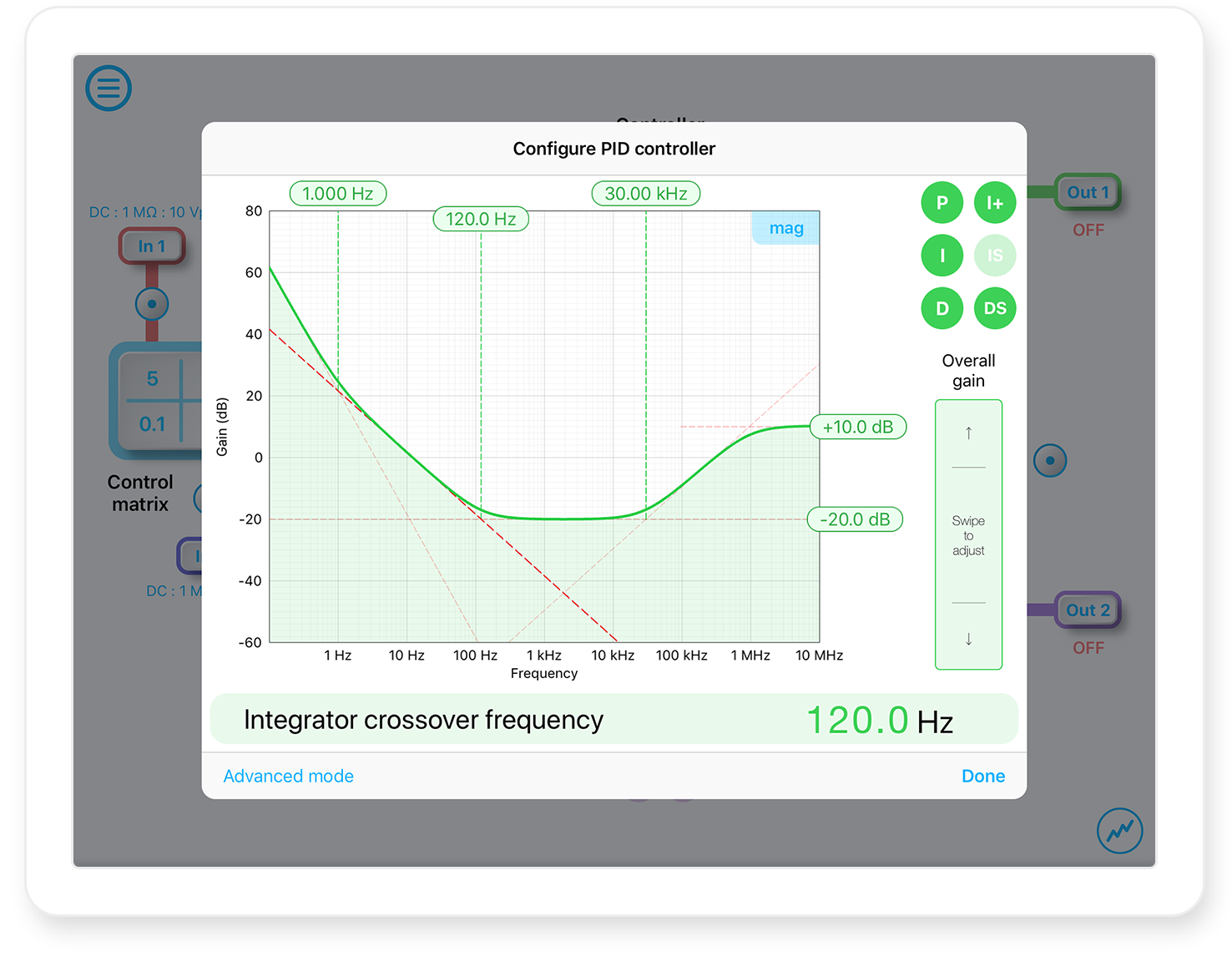

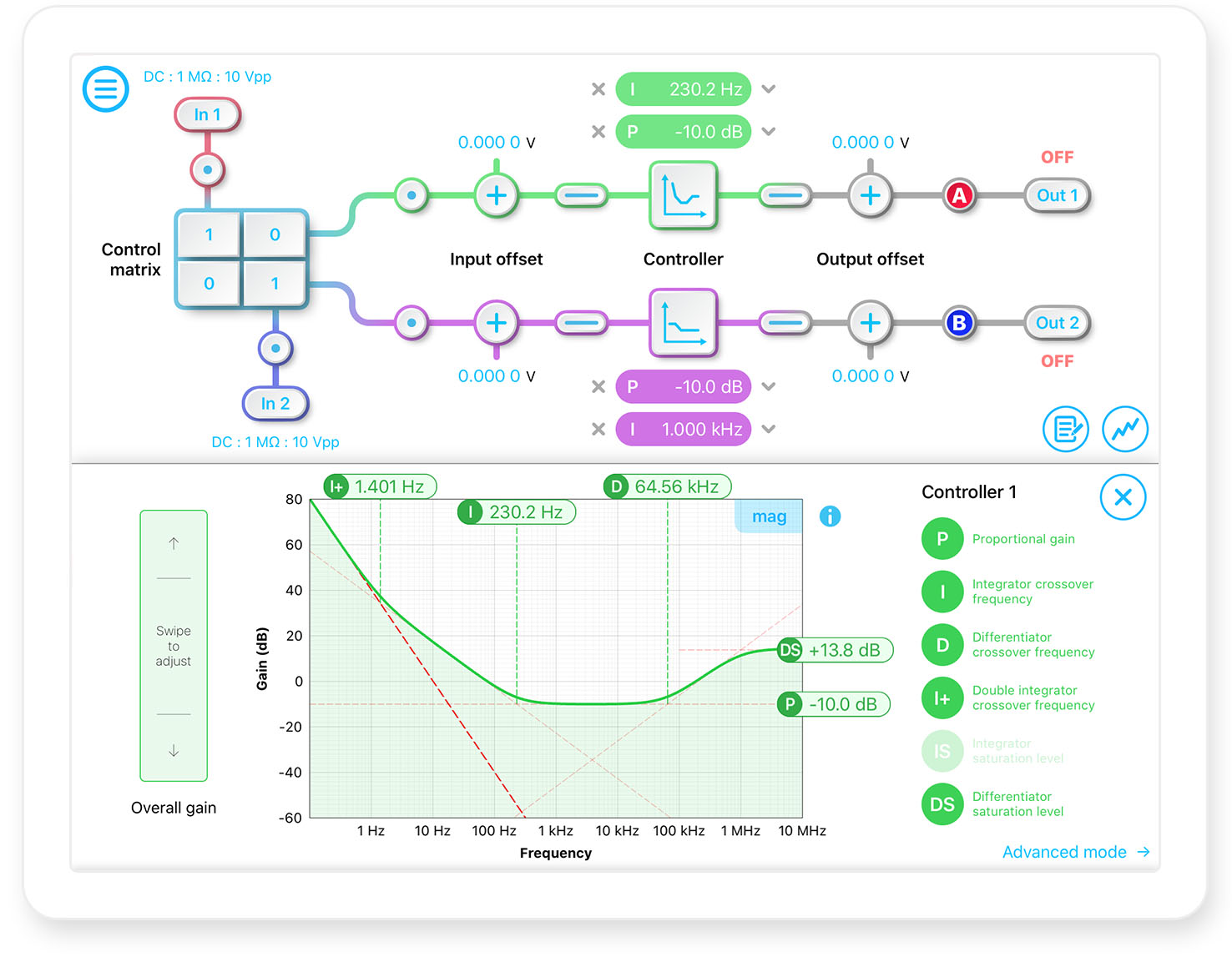

PID Controller

Learn More

PID Controller

Reduce feedback loop complexity with monitoring, control, and data logging integrated into a single instrument. A user-friendly graphical interface simplifies parameter adjustment and offers real-time monitoring of the transfer function to optimize your experiment.

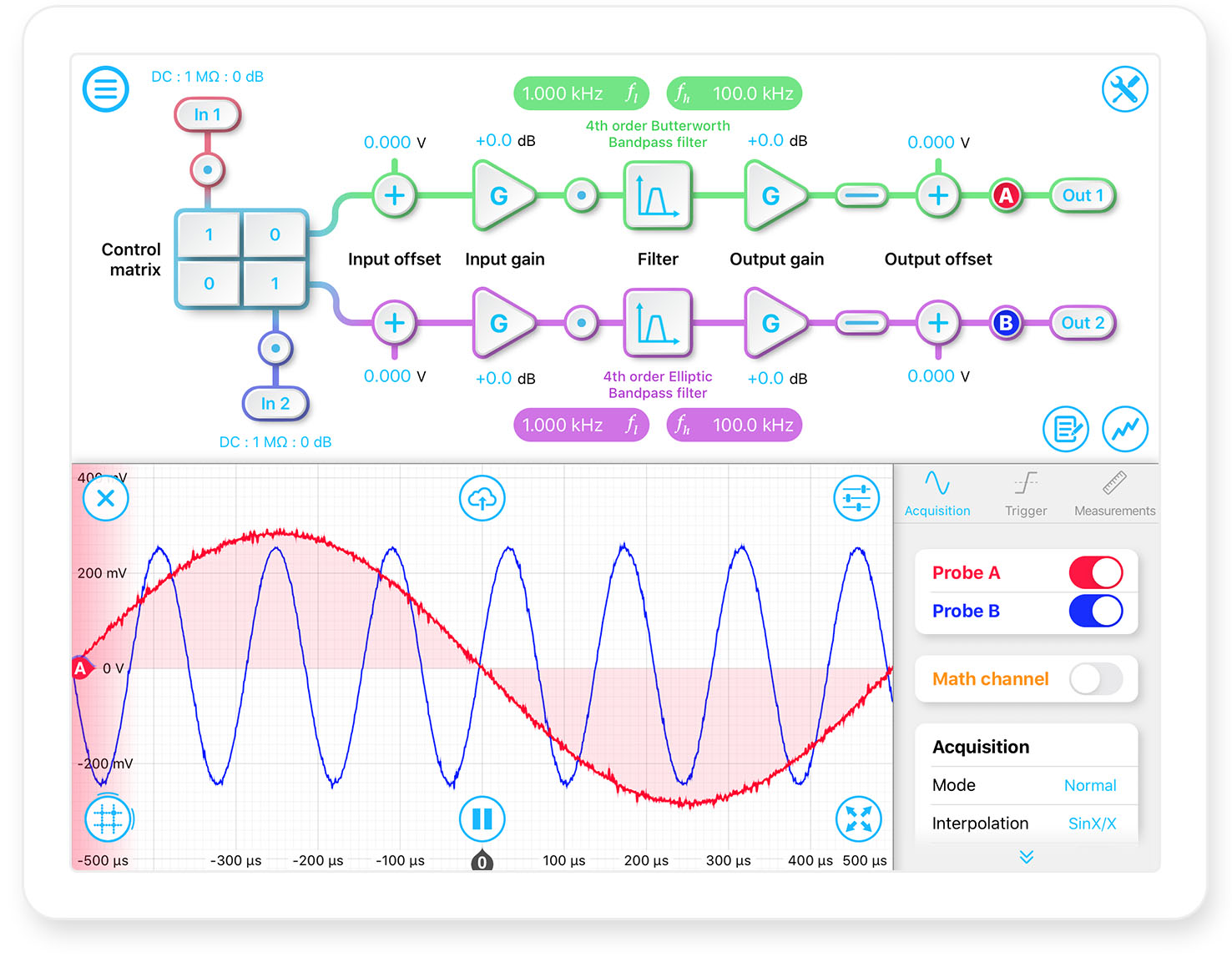

Digital Filter Box

Learn More

Digital Filter Box

Interactively design and generate a range of infinite impulse response (IIR) filters. Select from lowpass, highpass, bandpass, and bandstop filter shapes with up to eight fully configurable filter types, including Butterworth, Chebyshev, and elliptic.

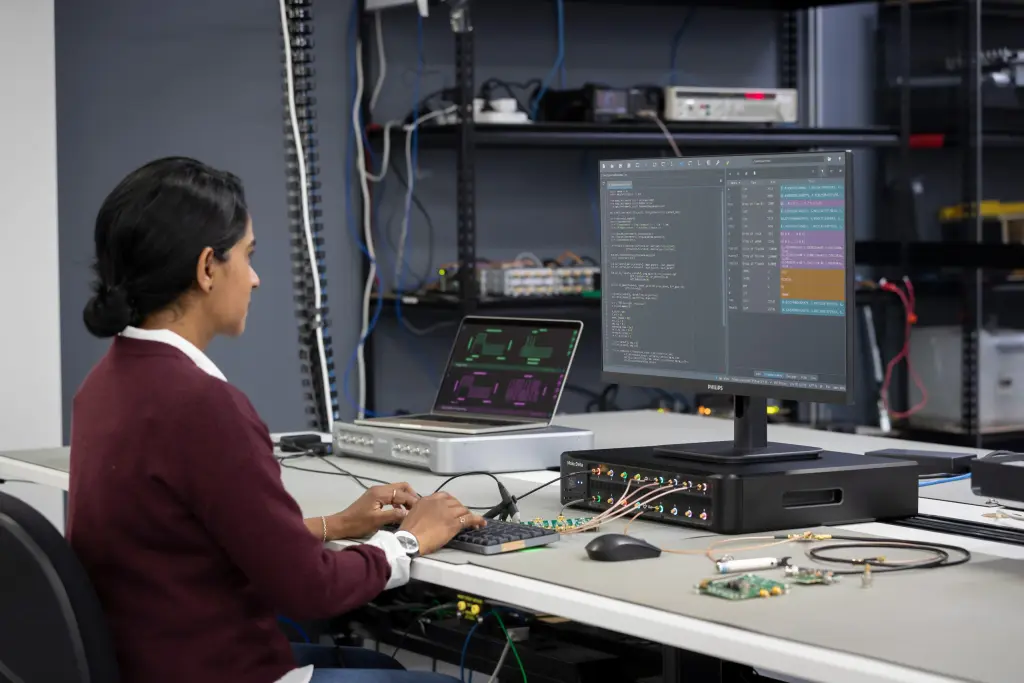

Moku Cloud Compile

Learn More

Moku Cloud Compile

Code, compile, and deploy directly from your browser. Moku Cloud Compile makes FPGA programming simple with the ability to implement custom functionality to your Moku device.

Multi-Instrument Mode

Learn More

Multi-Instrument Mode

Connect multiple software-defined instruments to build powerful signal processing pipelines with the ability to dynamically swap instruments on the fly — and monitor the performance of each instrument in its own dedicated window for a true bird’s-eye view of your experiment.

Neural Network

Learn More

Neural Network

The only FPGA-based neural network integrated into a full suite of test and measurement instruments. Run real-time, powerful machine learning algorithms in line with your experimental setups using Moku:Pro. Build and train models using Python, then deploy to your test systems using Moku:Pro to achieve low-latency inference and react quickly to changing experimental conditions.

A test platform for the digital age

Configure your test system in minutes, not days

Over-the-air software and instrument updates

Seamlessly connect and switch between 15+ instruments

Use multiple instruments simultaneously

Control experiments wirelessly and move freely in the lab

Small footprint gives you more benchtop space

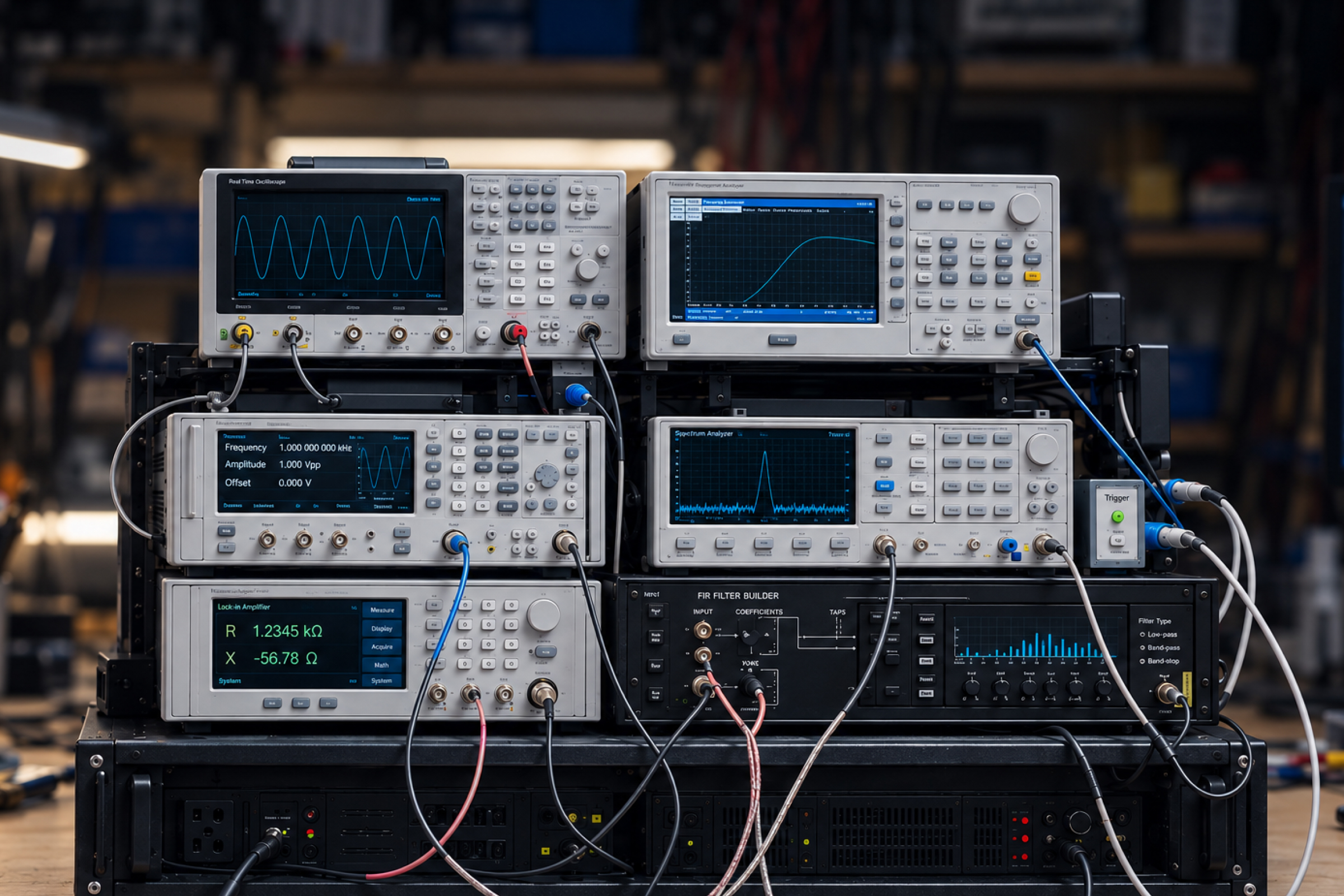

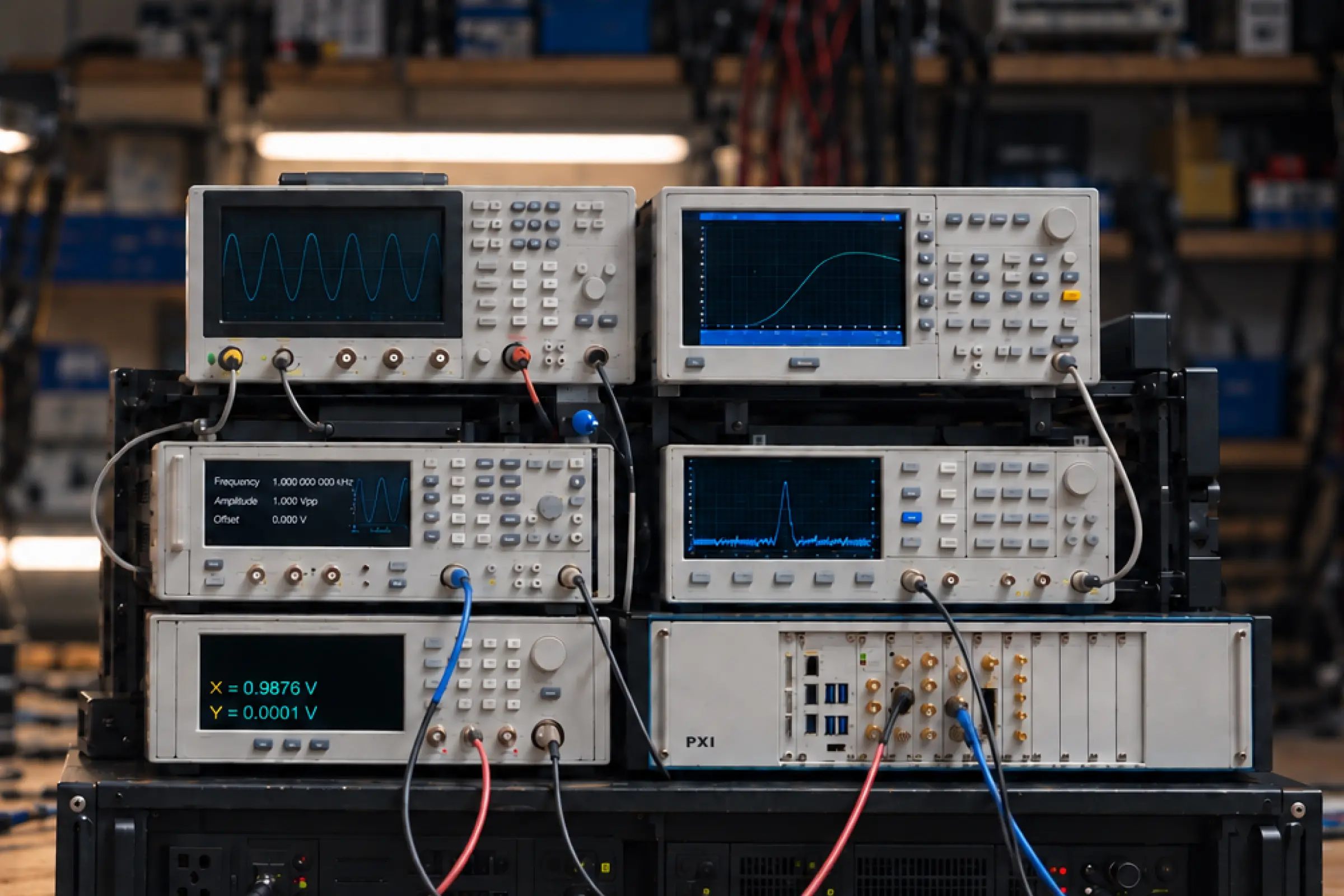

hp-before

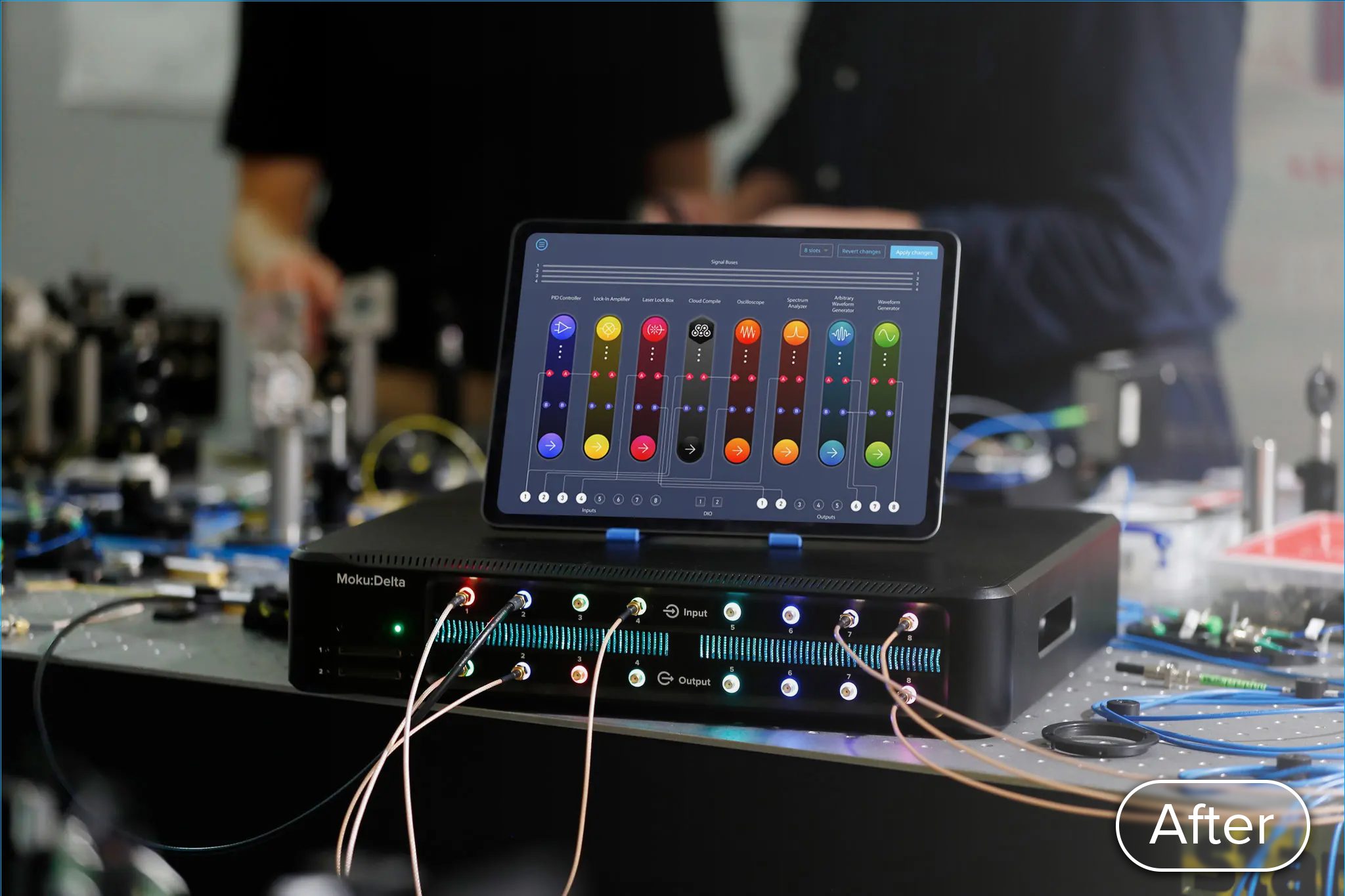

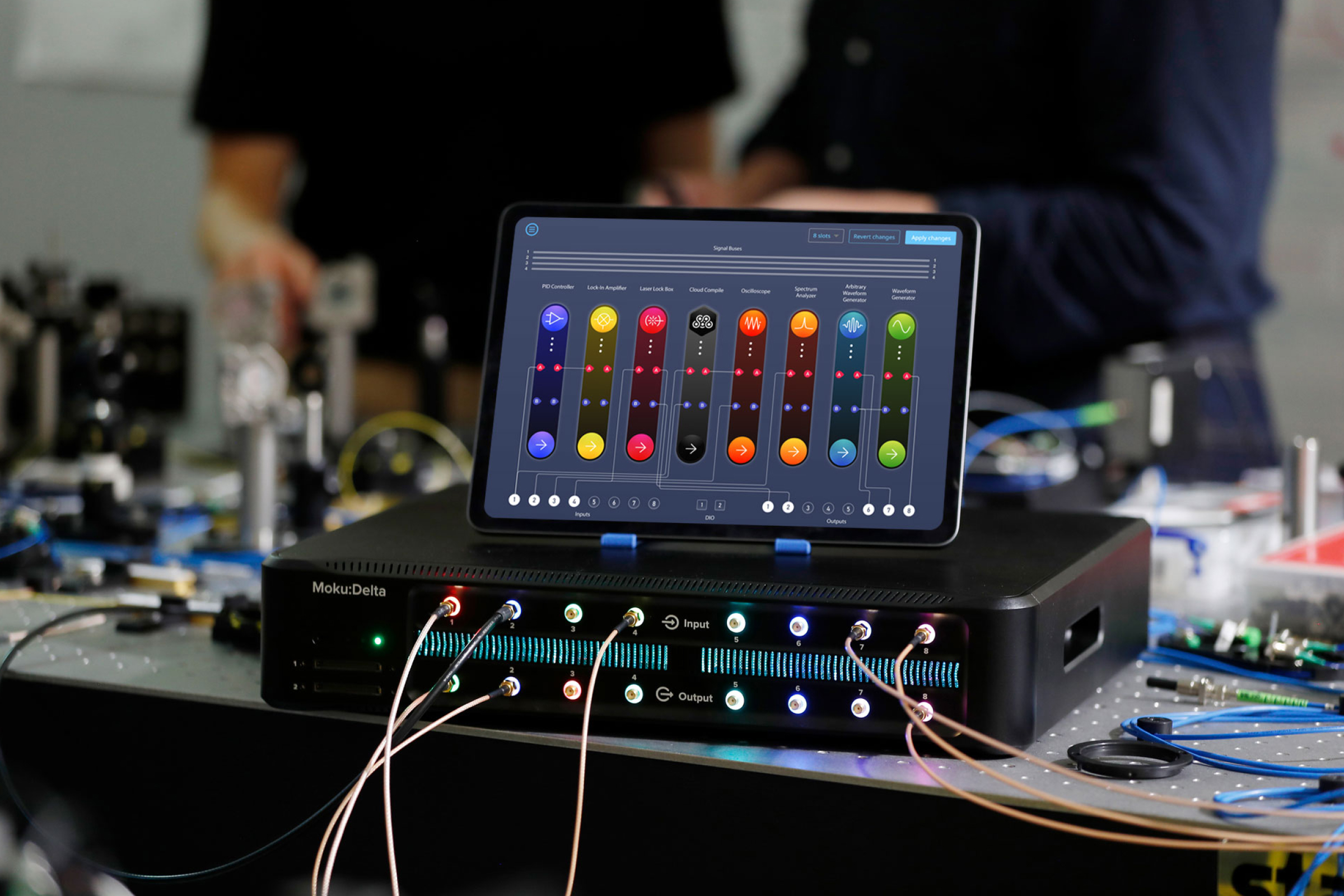

hp-after
