Moku:Delta

Accelerate product design and validation with 2 GHz bandwidth, eight analog inputs and eight analog outputs, 32‑channel high‑speed digital I/O, and < 10 nV/√Hz input noise.

Download datasheet

Meet Moku:Delta

Key benefits of Moku:Delta

High-bandwidth signal generation and analysis

Create and capture high-speed analog signals with 2 GHz bandwidth and 5 GSa/s sampling rate.

Measure low-SNR signals with precision

Achieve ultra-low noise performance at < 10 nV/√Hz with blended 14-bit and 20-bit ADCs.

Reduce test time by an order of magnitude

Perform measurements in parallel with eight independent input and output channels.

Control and monitor complex digital systems

Capture and drive digital signals on 32 DIO channels for integrated system test.

Moku-AF_Monotone-Channels_Front_Backlit_Vent 1

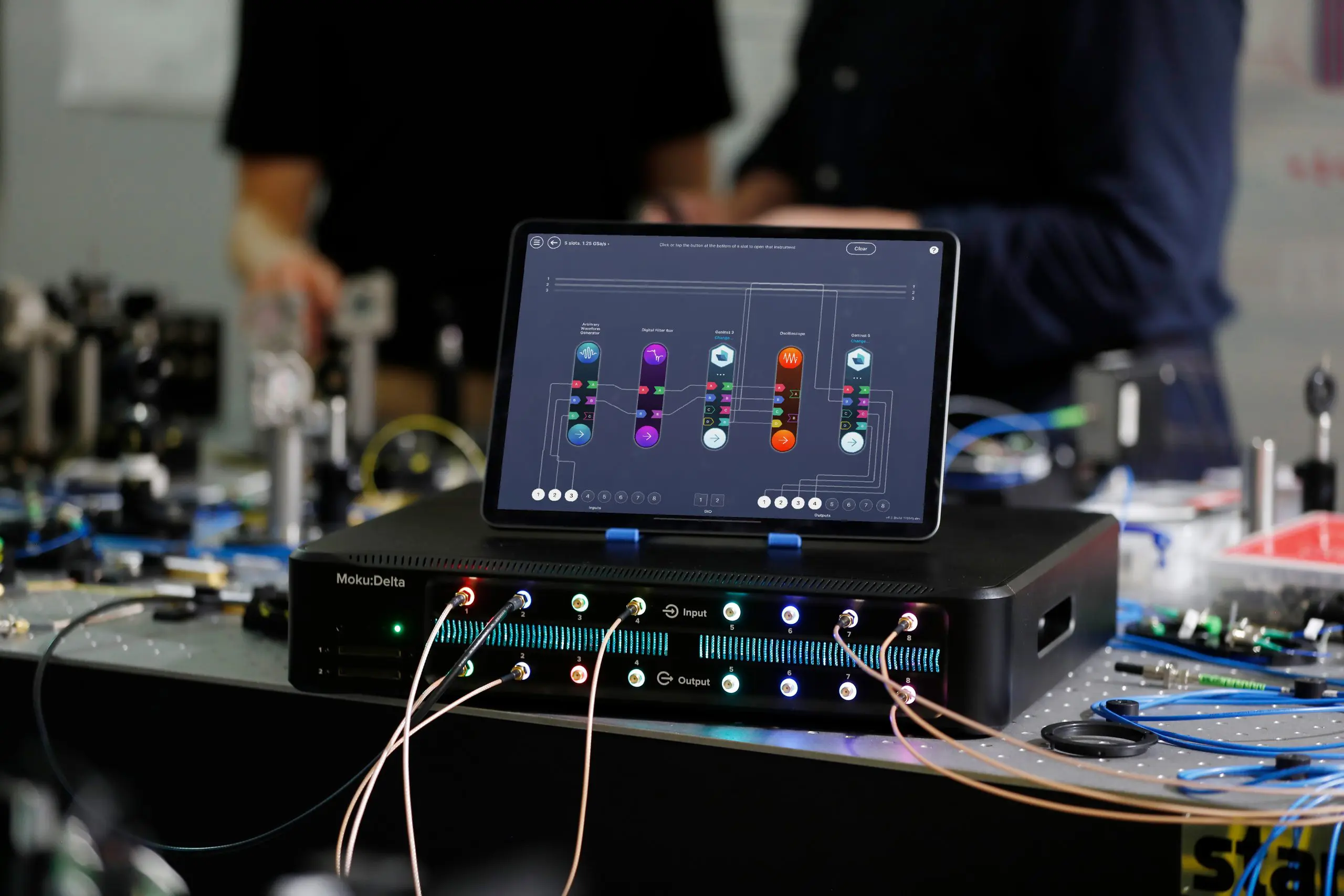

Multiple instruments in a single platform

With support for 15 different instruments and the ability to deploy up to eight instruments simultaneously, Moku:Delta offers over 2 billion possible test configurations in a single 2U device. Partial reconfiguration of the RFSoC FPGA delivers the flexibility of software with the performance of hardware.

Try the software

Oscilloscope

Logic Analyzer / Pattern Generator

Neural Network

Arbitrary Waveform
Generator

Frequency
Response Analyzer

Time & Frequency Analyzer

Data Logger

Laser Lock Box

Phasemeter

Key specs & capabilities

8 analog inputs

2 GHz, 5 GSa/s

8 analog outputs

2 GHz, 10 GSa/s

Noise floor

< 10 nV/√Hz at
100 Hz

Clock stability

1 ppb OCXO

FPGA powered

Third-generation Xilinx RFSoC

See datasheet

The highest-resolution 2 GHz Oscilloscope

Our algorithms automatically and intelligently blend the high-speed and low-speed signals from the eight independent 14-bit and 20-bit ADCs to optimize noise performance across the entire 2 GHz frequency range. By utilizing this unique blending scheme, Moku:Delta achieves ultra-low broadband noise performance.

Sophisticated clocking system gives excellent phase noise and stability

Moku:Delta blends up to four clock sources simultaneously for more accurate phase, frequency, and interval measurements across all time scales. A low phase-noise VCXO is blended with a 1 ppb OCXO for optimal wide-band phase noise and stability, while an optional external frequency reference and GPS disciplining synchronize Moku:Delta with your lab and the world.

Extreme customization with over 2 billion instrument configurations

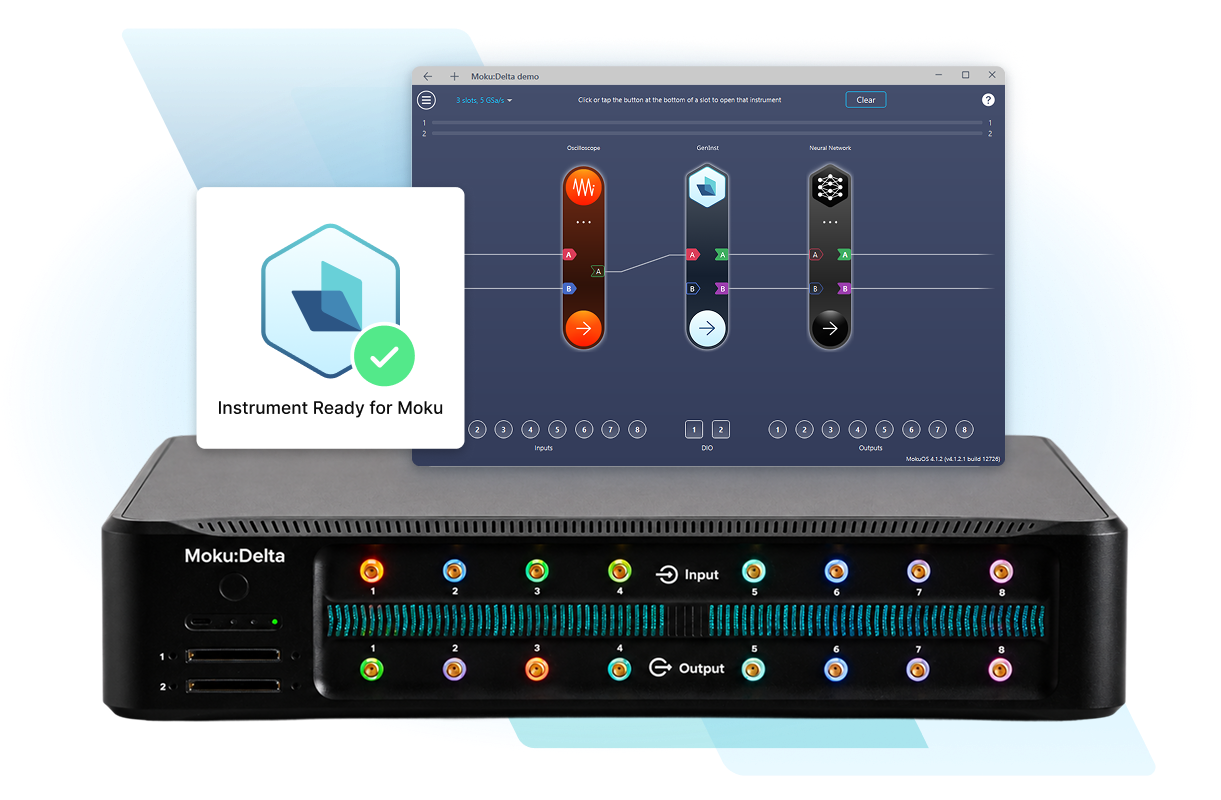

Moku:Delta is the most flexible 2 GHz test device on the market, delivering reconfigurable customization with its powerful FPGA. Use Multi-Instrument Mode to create a tailored test system in a single device, and Moku Cloud Compile to deploy custom capability to the user-programmable FPGA with minimal overhead.
