Meet Moku, a modern approach to test.
Moku is a reconfigurable suite of test and measurement instruments integrated into a single device. Engineered for advanced research and development, Moku contains 15 instruments to analyze, generate, and process signals.
Who uses Moku?
One unified platform.
Moku provides a suite of high-performance test instrumentation integrated into a single platform. Interface with powerful instruments through a high-speed, low-noise analog front end, fully configurable through software.
High-performance hardware

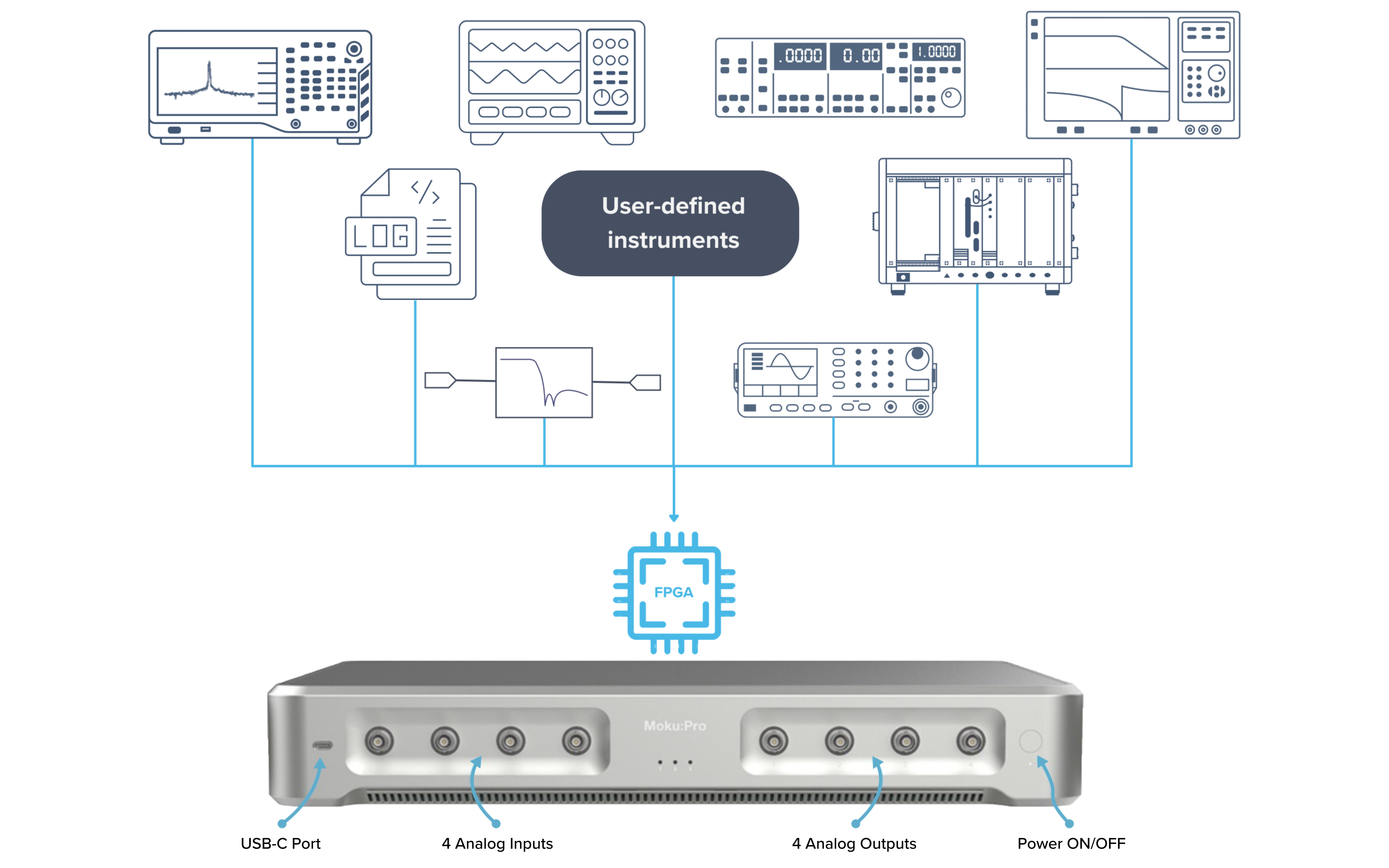

At the core of every Moku device is a powerful Xilinx FPGA to enable fast, parallel processing. This allows you to deploy any of 15 instruments to the same hardware. Interface with your system under test using high-speed inputs and outputs with engineered noise performance. Connect to the device via Ethernet, WiFi, or USB.Flexible, intuitive software
One user interface with consistent controls across instruments simplifies configuring, running, and automating tests and experiments. With an easy-to-use interface, scientists and engineers can accelerate time to results and reduce learning curves compared with traditional racks of equipment. Connect and control Moku through your PC, Mac, or iPad. Automate using Python, MATLAB, or LabVIEW.Better tools, better results.
Replace an entire rack of equipment with a single device.
Configure your test system in minutes, not days
Over-the-air software and instrument updates

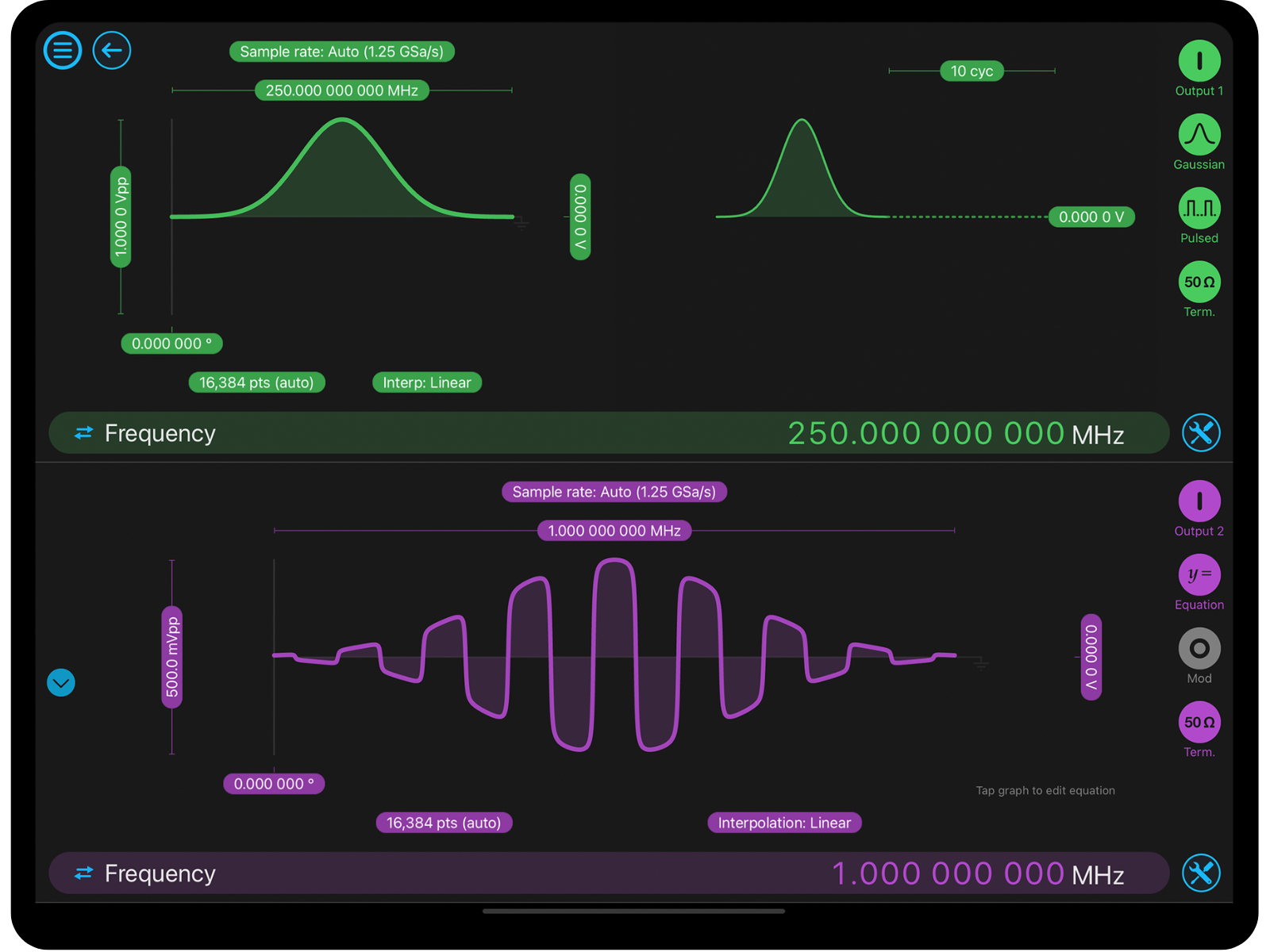

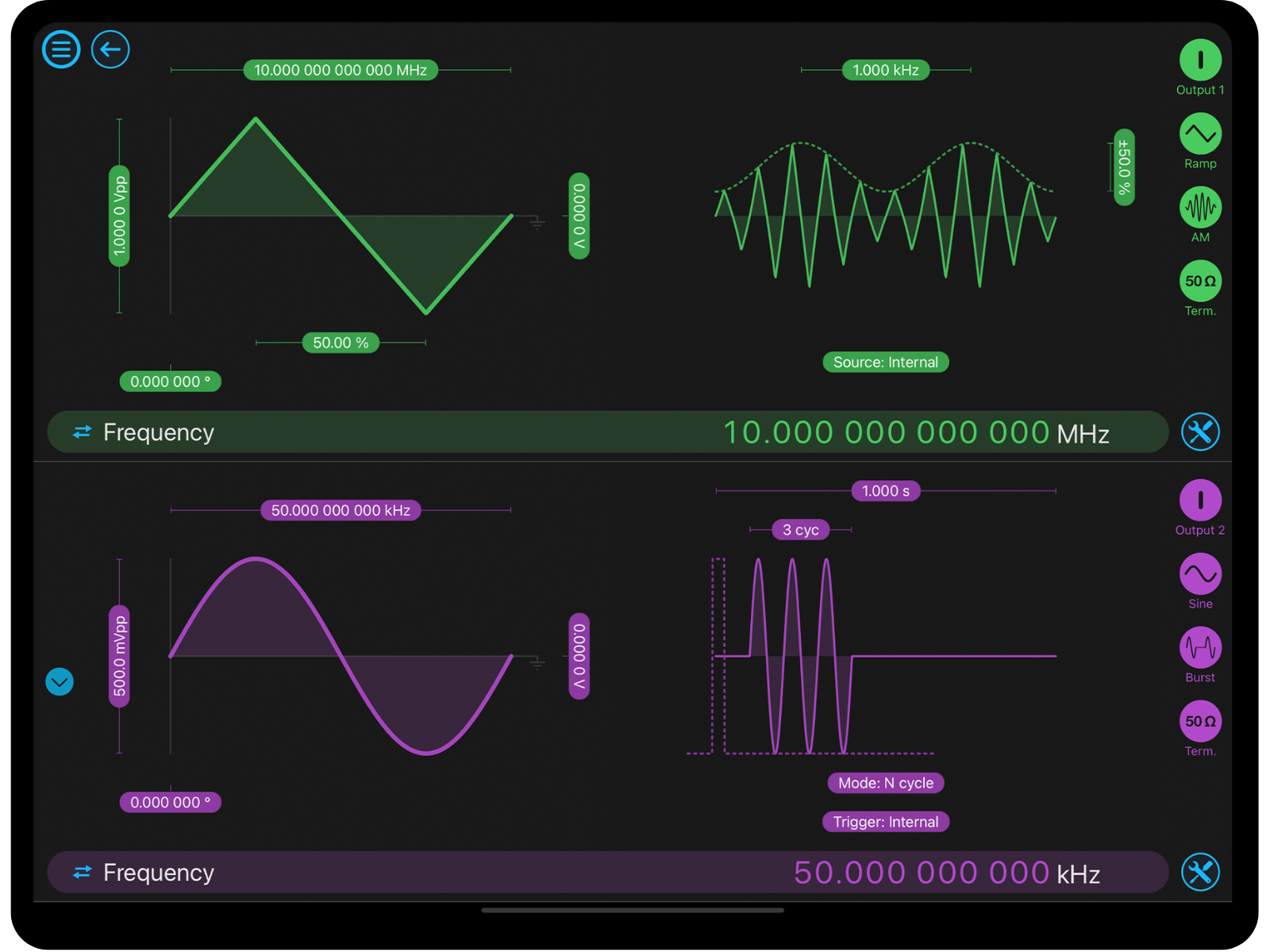

Seamlessly connect and switch between 15+ instruments
Use multiple instruments simultaneously
Control experiments wirelessly and move freely in the lab
Small footprint gives you more benchtop space
Pick your performance.
Choose from three versatile options: Moku:Pro,
Moku:Lab, or Moku:Go.
Hardware models
Choose from three versatile options: Moku:Pro for technology development,Moku:Lab for research, or Moku:Go for a portable design and test solution.
Technical Specifications
Analog Inputs
Input channels
Four 10-bit+18-bit, up to 5 GSa/s
Analog bandwidth
600 MHz
Impedance
AC or DC coupling with 50 Ω / 1 MΩ switchable impedance
Input range
Up to ± 20 V
Analog Outputs
Output channels
Four 16-bit, 1.25 GSa/s
Analog bandwidth
500 MHz
Output range
± 5 V into 50 Ω
Clock stability
300 ppb
Digital I/O
Dedicated TTL trigger port
Programmable power supply
N/A
Software and utilities
Windows, macOS, iPadOS, visionOS apps
API support for Python, MATLAB, and LabVIEW
MathWorks live scripting
Additional ports
USB-C
10 MHz reference clock in and out
Ethernet port (10/100/1000 Base-T)
Trigger
Size and Weight
Dimensions
Height
2.8 in / 7 cm
Width
17.3 in / 44 cm
Depth
13 in / 33 cm
Weight
14.77 lb / 6.7 kg
Technical Specifications
Analog Inputs
Input channels
Two 12-bit, 500 MSa/s
Analog bandwidth
200 MHz
Impedance
AC or DC coupling with 50 Ω / 1 MΩ switchable impedance
Input range
Up to ± 5 V
Analog Outputs
Output channels
Two 16-bit, 1 GSa/s
Analog bandwidth
300 MHz
Output range
± 1 V into 50 Ω
Clock stability
500 ppb
Digital I/O
Dedicated TTL trigger port
Programmable power supply
N/A
Software and utilities
Windows, macOS, iPadOS, visionOS apps
API support for Python, MATLAB, and LabVIEW
MathWorks live scripting
Additional ports
USB Mini B
SD card slot
10 MHz reference clock in and out
Ethernet port (10/100 Base-T)
Kensington lock port
Trigger
Size and Weight
Dimensions
Height
1.7 in / 4.4 cm
Width
7.9 in / 20 cm
Depth
7.9 in / 20 cm
Weight
3.5 lb / 1.6 kg
Technical Specifications
Analog Inputs
Input channels
Two 12-bit, 125 MSa/s
Analog bandwidth
30 MHz
Impedance
AC or DC coupling with 1 MΩ impedance
Input range
Up to ± 25 V
Analog Outputs
Output channels
Two 12-bit, 125 MSa/s
Analog bandwidth
20 MHz
Output range
± 5 V into 50 Ω
Clock stability
25 ppm
Digital I/O
16-channel DIO at 125 MSa/s
Supports 3.3 V logic (5 V tolerant)
Programmable power supply
Up to four channels
Software and utilities
Windows, macOS, iPadOS, visionOS apps
API support for Python, MATLAB, and LabVIEW
MathWorks live scripting
Additional ports
USB-C
Magnetic power port
Optional Ethernet port (10/100 Base-T)
Kensington lock port
Size and Weight
Dimensions
Height
1.5 in / 3.8 cm
Width
9.4 in / 24 cm
Depth
5.1 in / 13 cm
Weight
1.7 lb / 750 g
Easily integrates with your tech stack
Dynamically switch between instruments.
With a powerful suite of instruments to generate, condition, and analyze signals, Moku delivers the capability you need, when you need it.

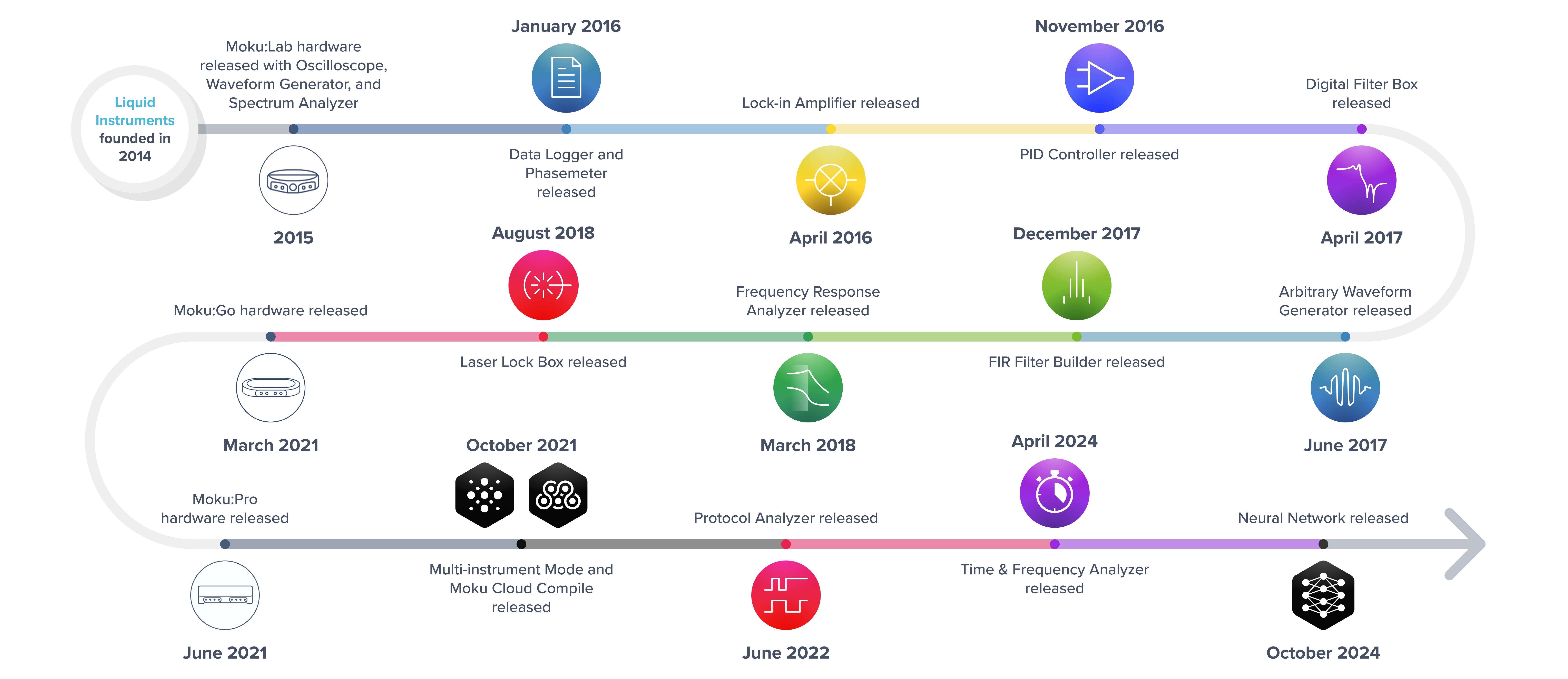

Moku gets better over time.
Future-proof your test bench. From user-requested features to brand new instruments, our over-the-air software updates bring new functionality with no hardware upgrades needed.

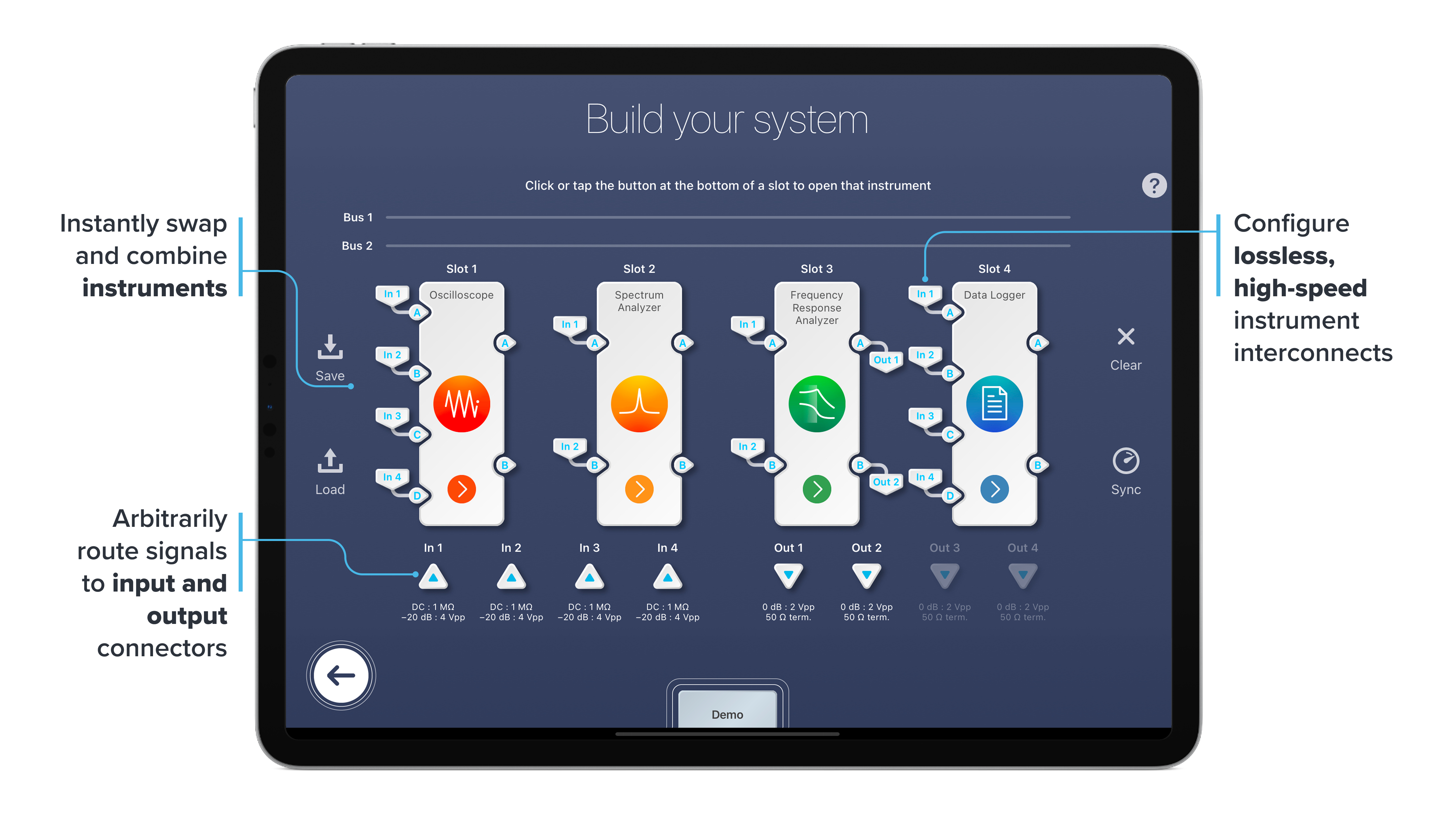

Can Moku run multiple instruments simultaneously? Yes.

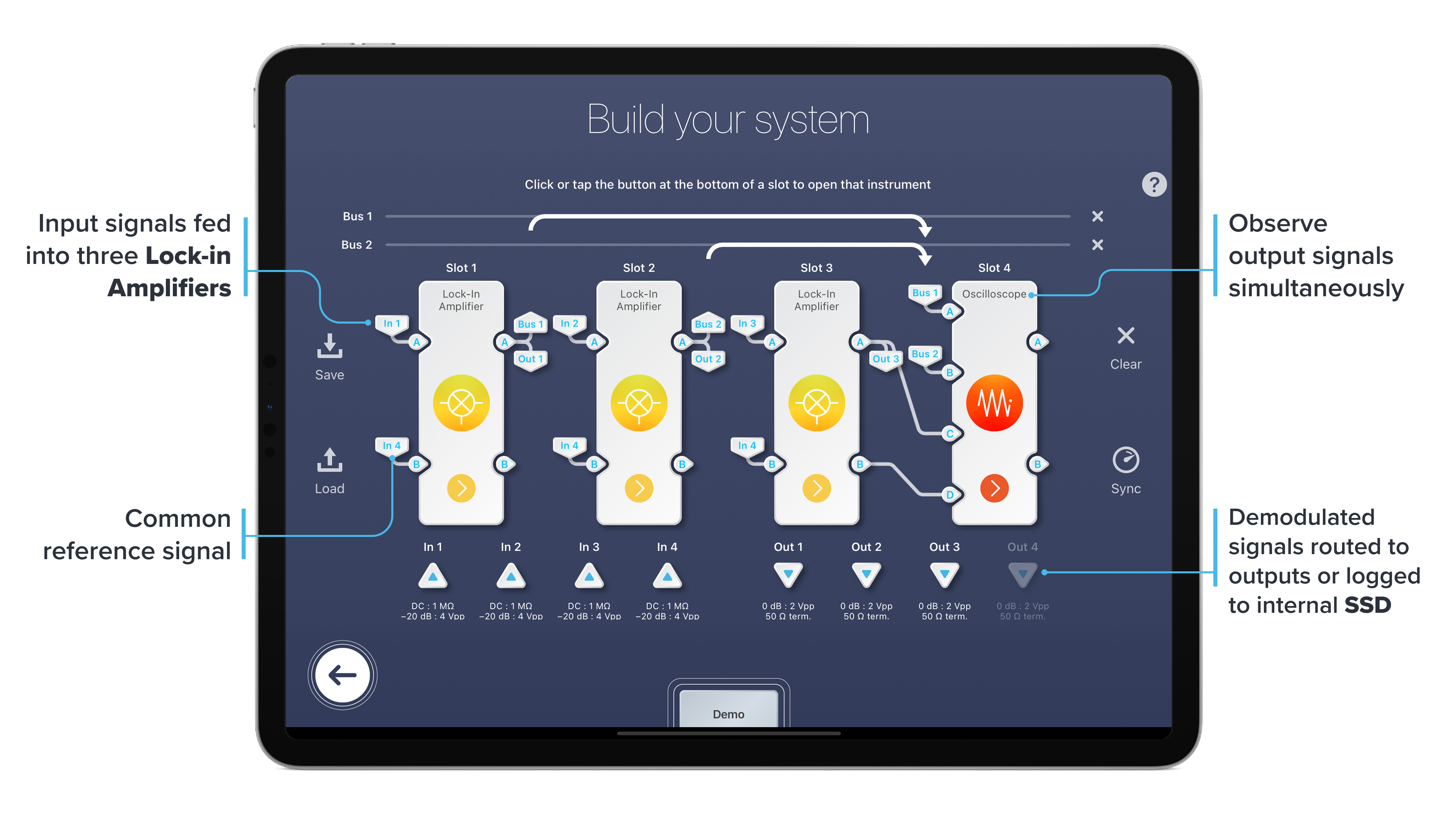

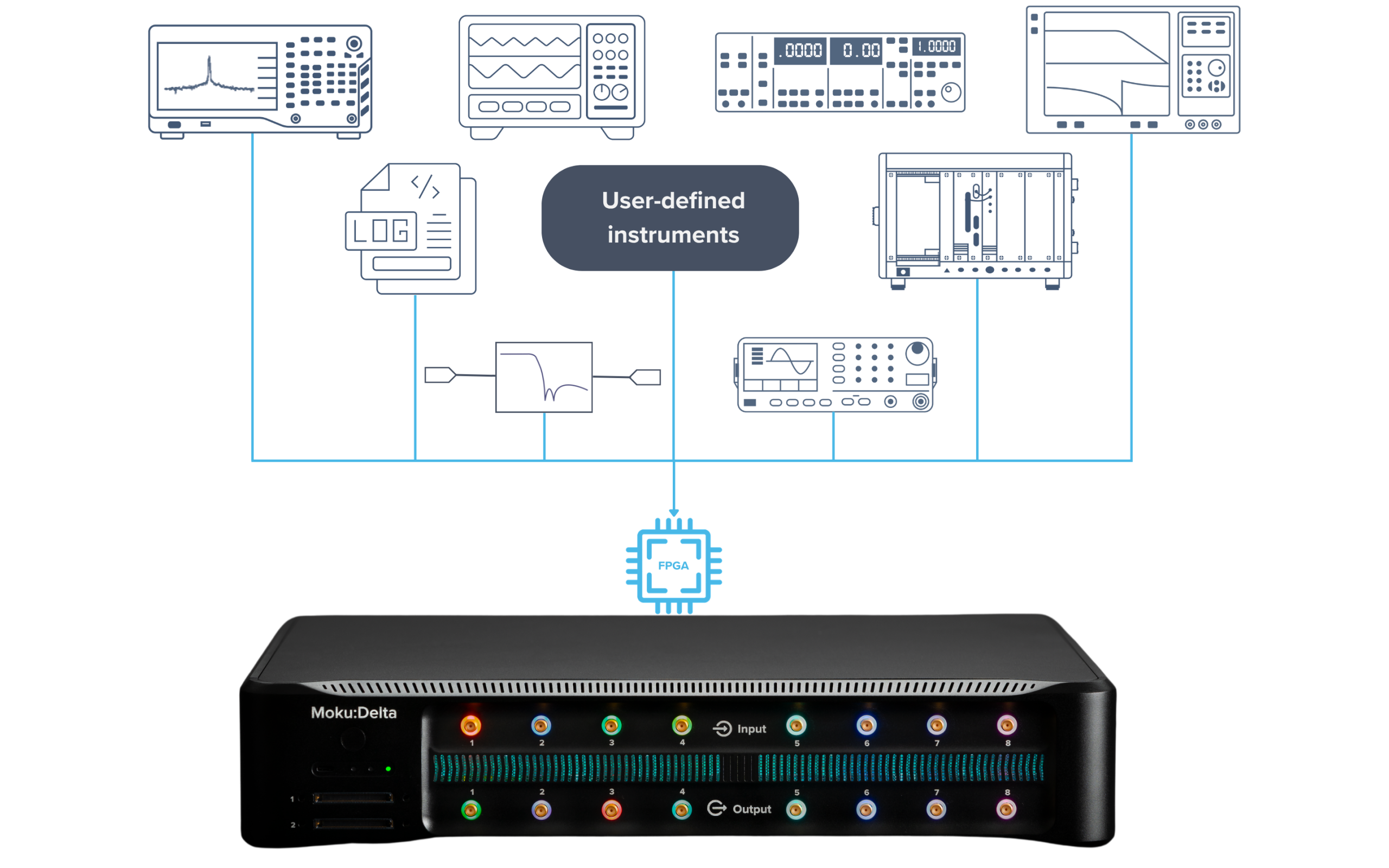

Design a test system or build custom signal processing pipelines in a single device through dynamic partial reconfiguration of the FPGA. Route signals between instruments and front panel connectors using low-latency, all-digital interconnects — no cables, adapters, or switches needed.

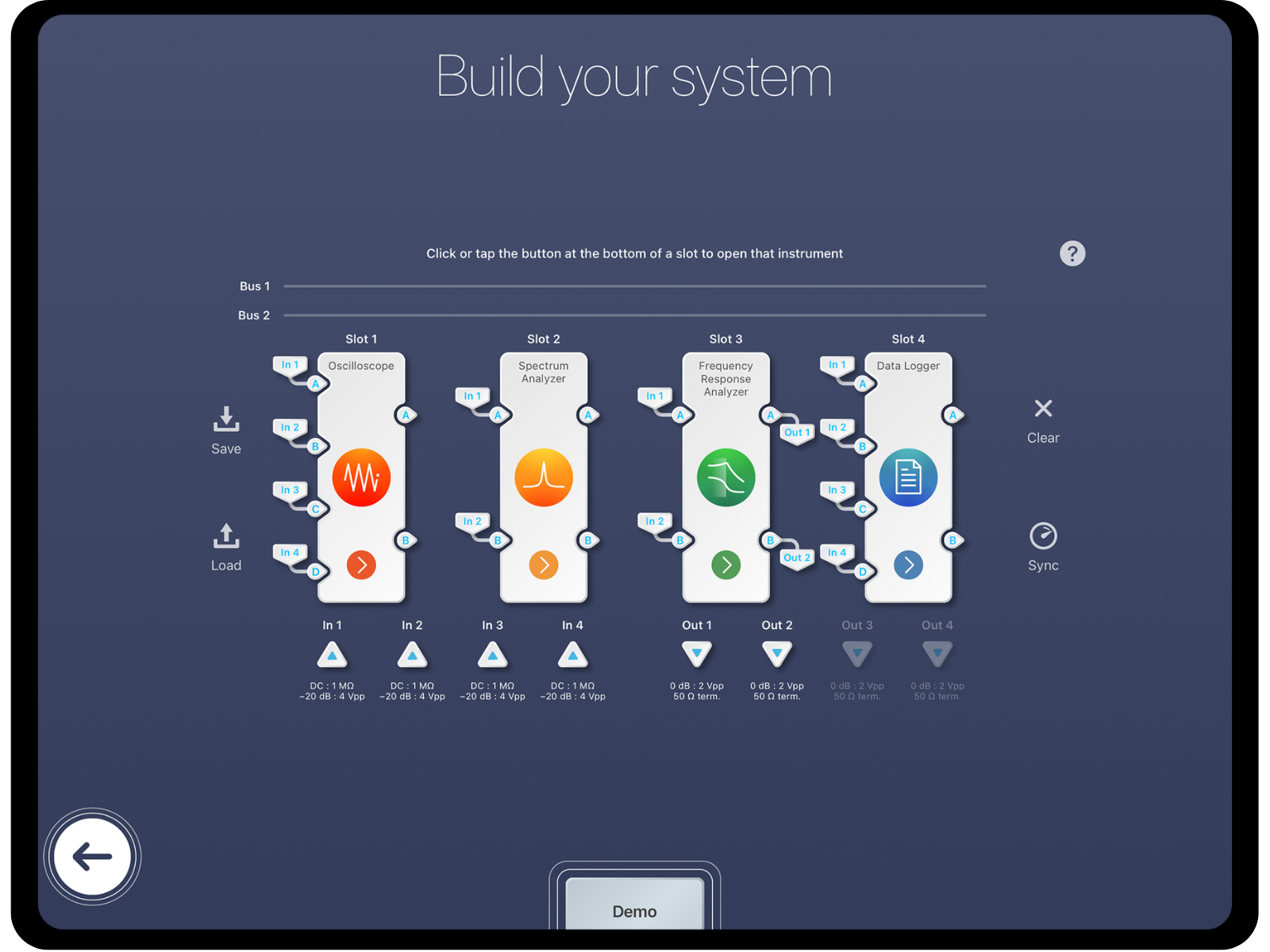

Create a test system or multi-channel instrument on one device.

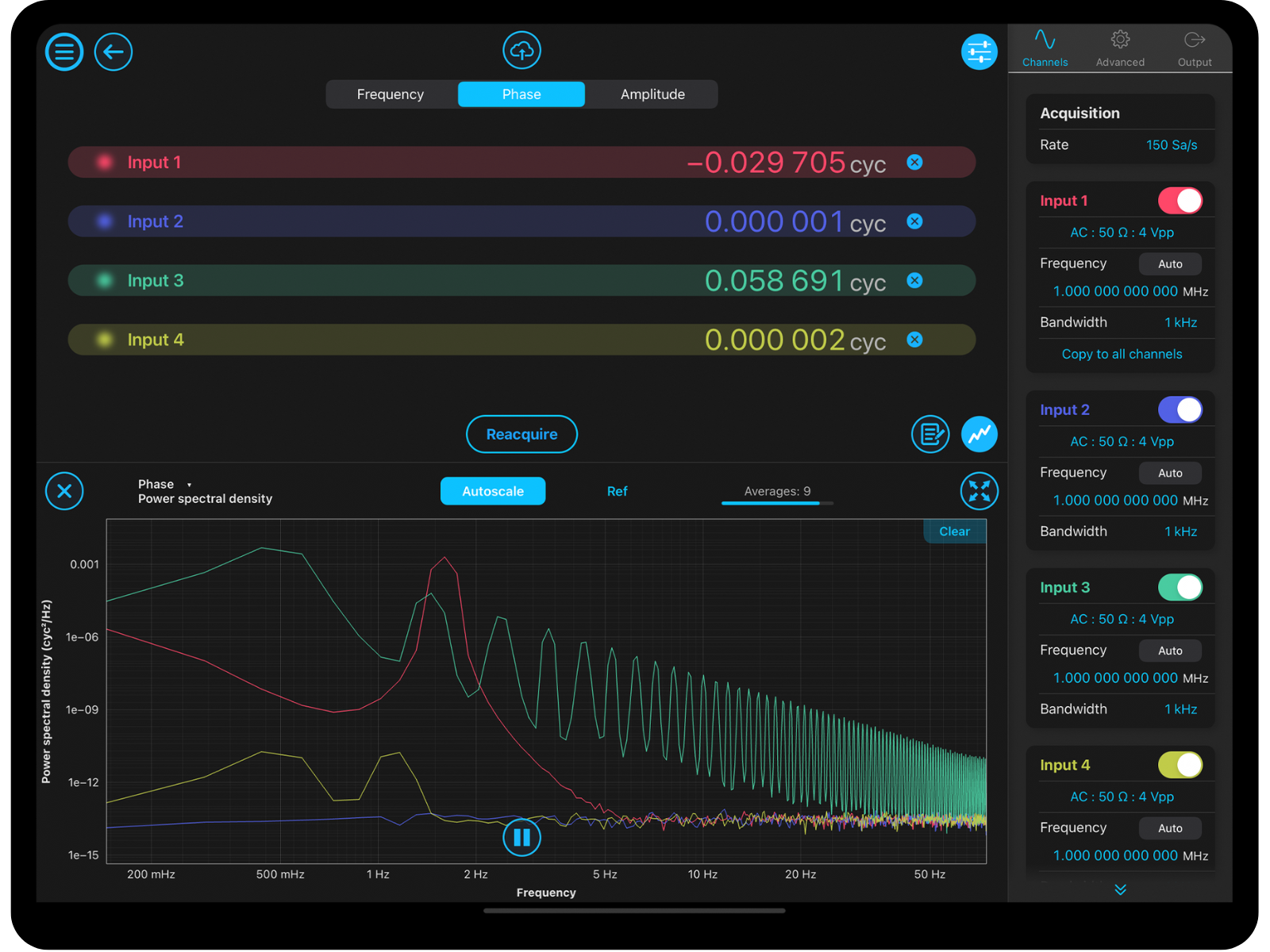

Multi-frequency Lock-in Amplifier

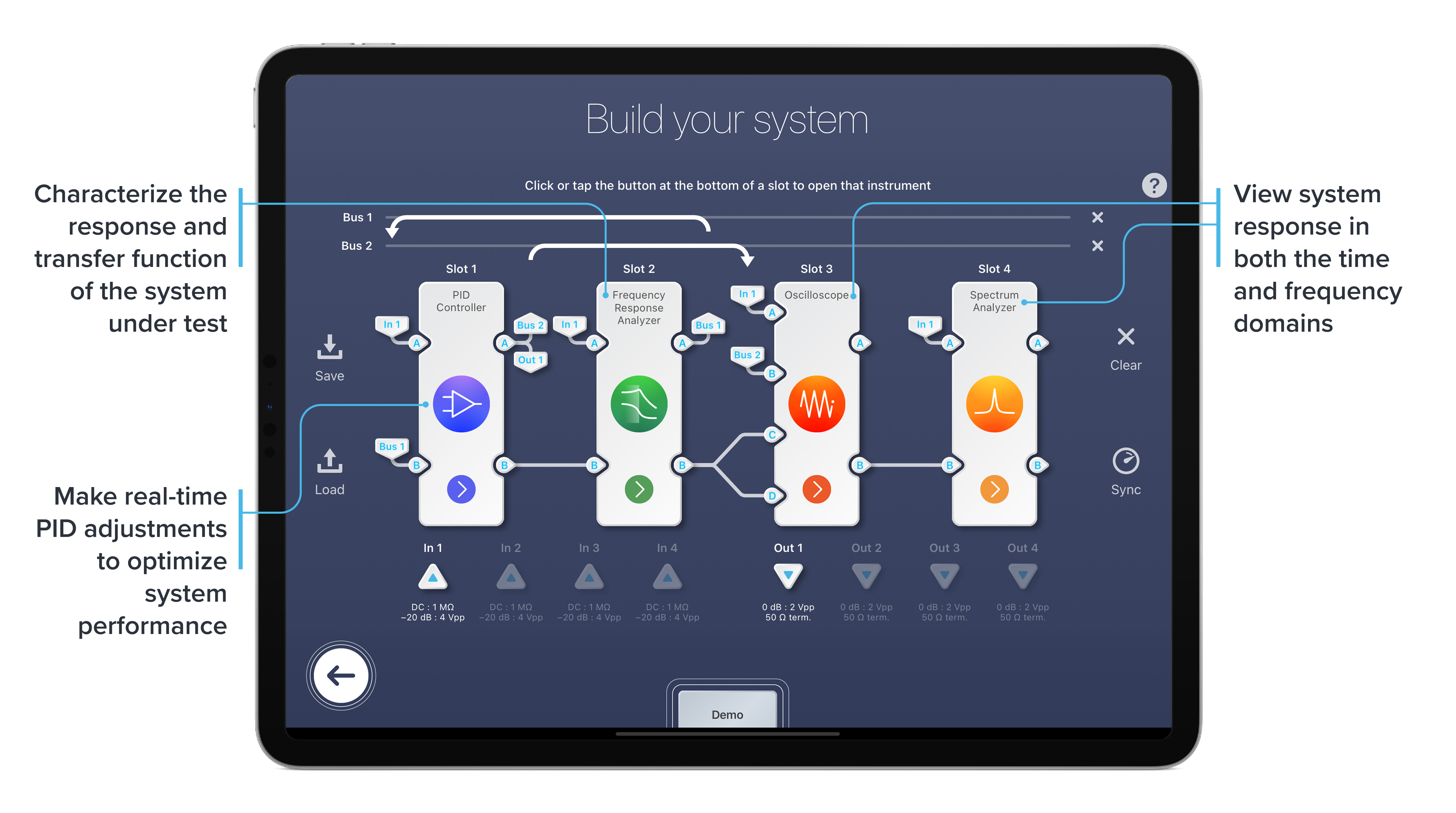

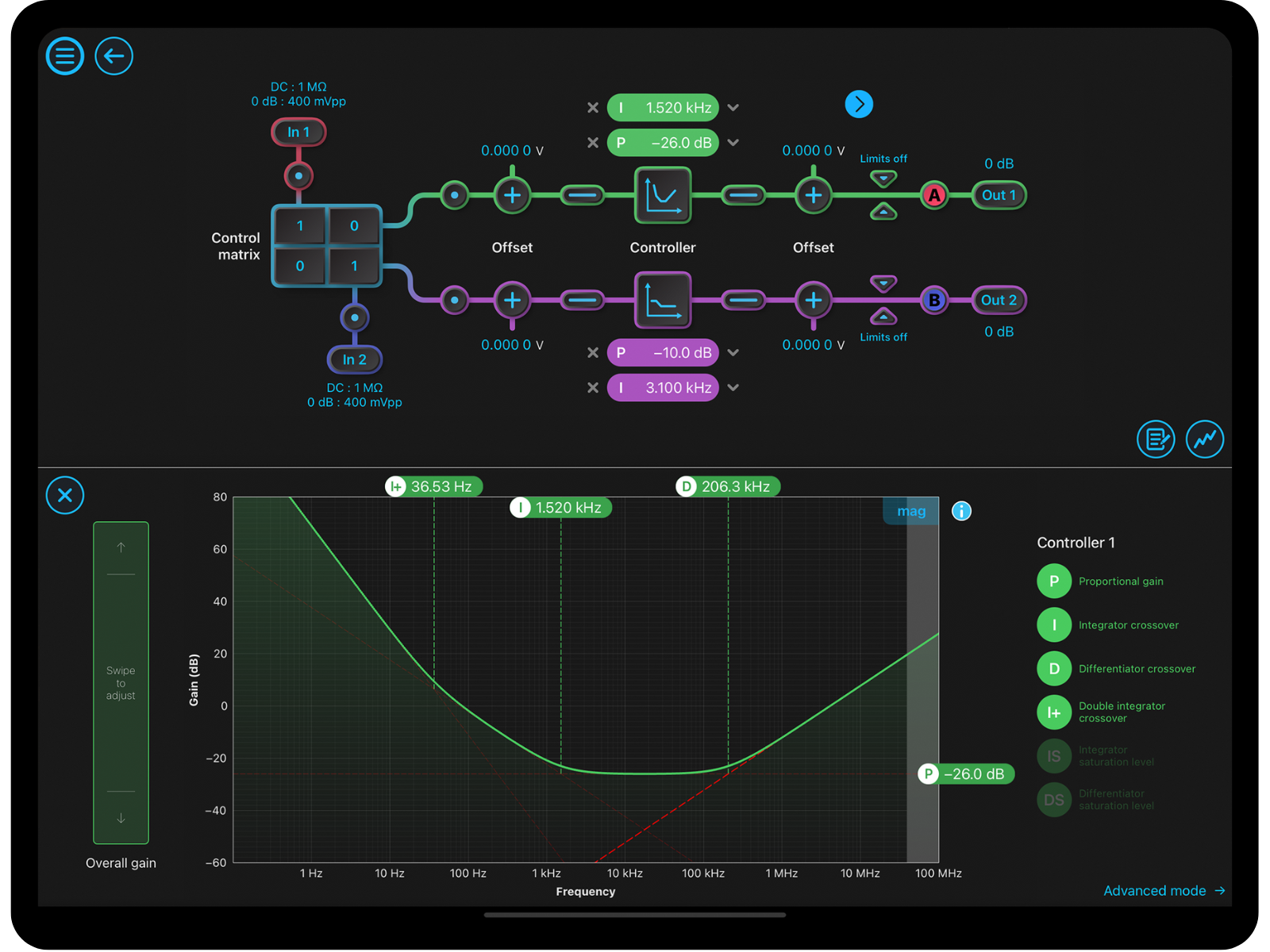

Closed-loop controller

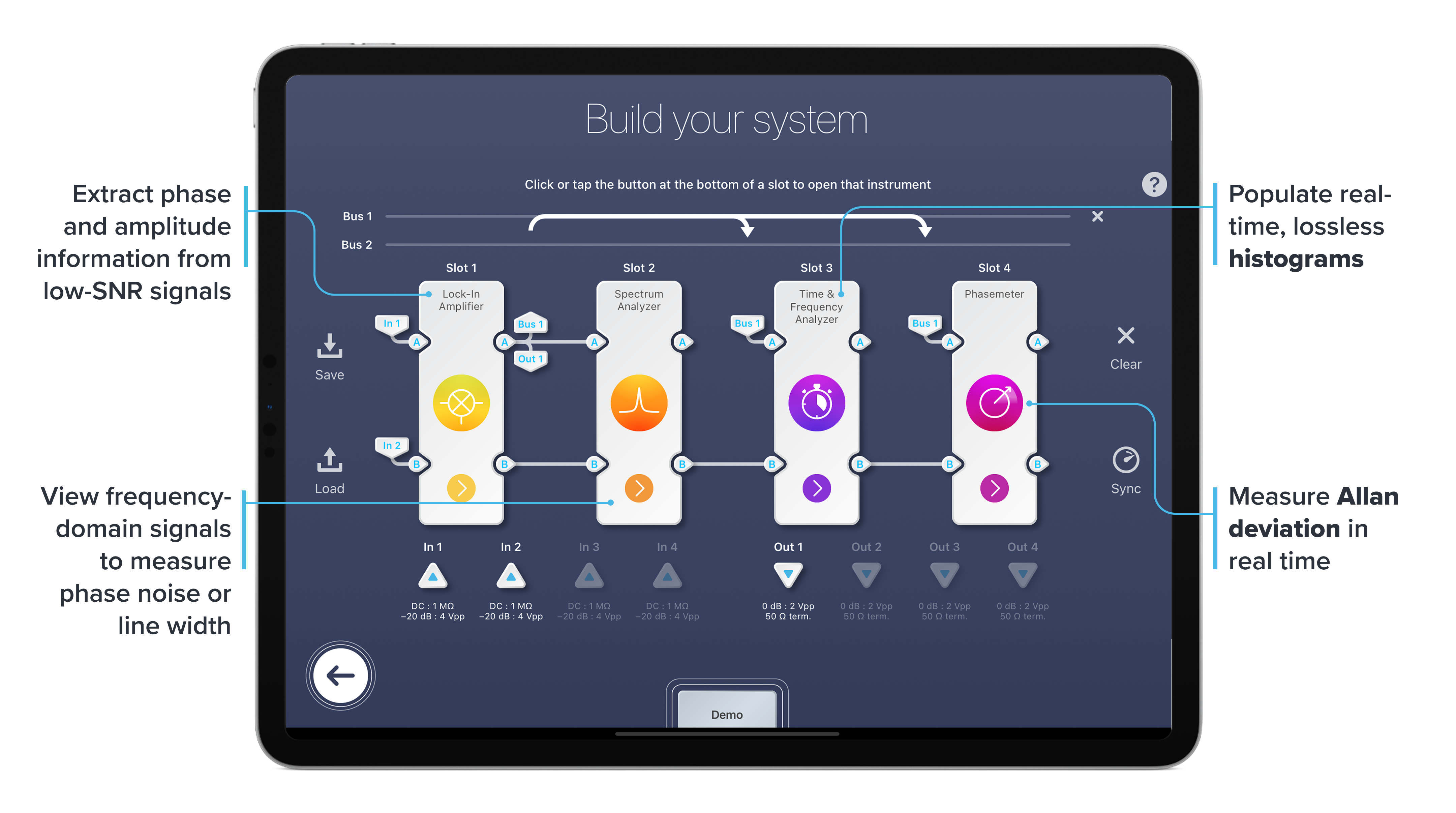

Oscillator characterization
Extreme customization.
Build and deploy custom functionality to Moku hardware to run in-line with other instruments.
Develop and deploy real-time signal processing and custom instruments.
Get direct access to the FPGA allowing you to code, compile and deploy bitstreams right from your browser. Moku Cloud Compile makes FPGA programming simple with the ability to implement custom functionality to Moku:Go, Moku:Lab, and Moku:Pro.

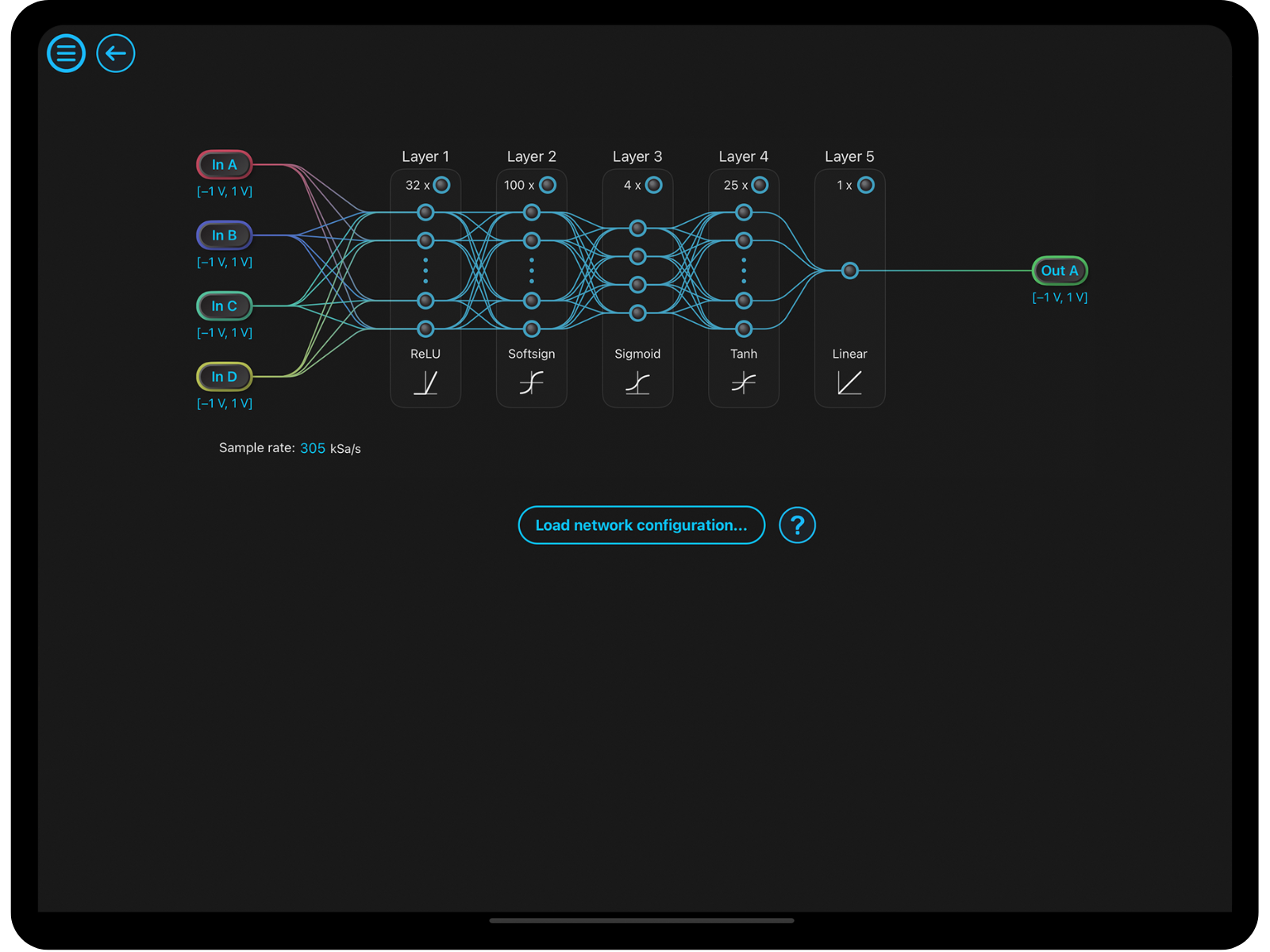

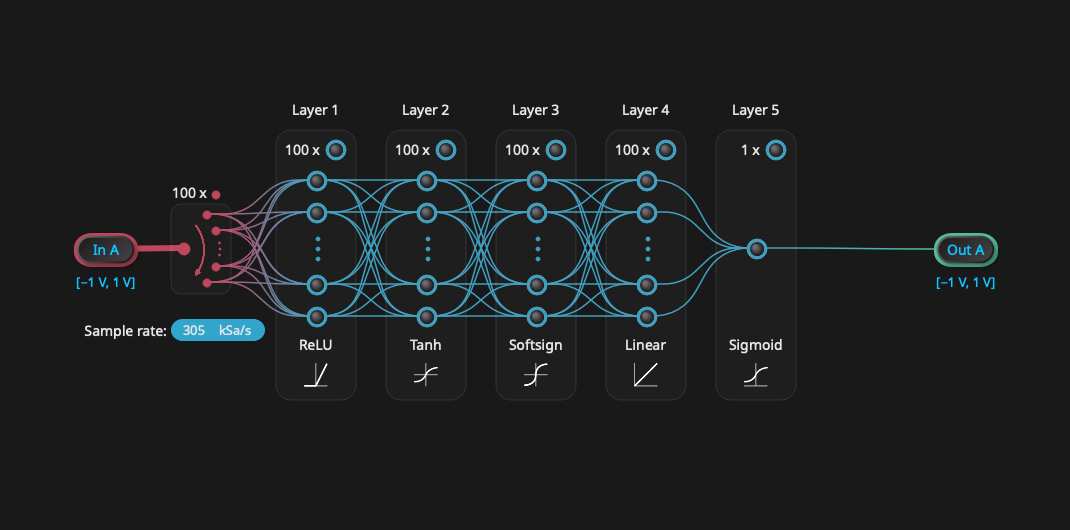

Connect machine learning algorithms to the physical world.
Neural networks that leverage the unique properties of FPGAs can deliver lower latency times compared to other deployment methods, leading to more efficient processing and decision-making. Simplify unpredictable data and leverage real-time inference with the Moku Neural Network.
Discover products.
Moku:Pro
Meet demanding R&D requirements with high channel density and extensive customization options in a rack-mountable format
600 MHz input bandwidth
Starting at $15,000
Moku:Lab
Optimize complex testing with engineered noise performance and multi-instrument integration
200 MHz input bandwidth
Starting at $5,000
Moku:Go
Accelerate everyday lab tasks with this portable, easy-to-use solution for quick experiments and testing
30 MHz input bandwidth
Starting at $599
