Leverage the highly versatile Moku Arbitrary Waveform Generator to generate custom waveforms with up to 65,536 points at sample rates of up to 1.25 GSa/s. For maximum flexibility to generate truly arbitrary waveforms, it’s easy to load waveforms from a file or input them as piece-wise mathematical functions with up to 32 segments. Use burst mode to trigger waveform generation from input channels with start or n cycle modes, or output waveforms with more than 250,000 cycles of dead time between pulses in pulsed mode.
- Available on
- Moku:Pro >
- Moku:Lab >
- Moku:Go >
The Moku Arbitrary Waveform Generator is easy to use and offers a range of advanced capabilities to optimize your experiment — at the most cost-effective price in the industry.
Key benefits of the Moku Arbitrary Waveform Generator
With up to four independent channels, a powerful equation editor with up to 32 segments, and the ability to generate custom waveforms with up to 65,536 points, you can expect more from the Moku Arbitrary Waveform Generator.
Quickly build waveforms with the live equation editor in the Moku Arbitrary Waveform Generator
Edit complex equations live and apply them instantly to your experimental setup. Choose to define the waveform with up to 32 segments. For a fully contained stimulus and response system, combine the Arbitrary Waveform Generator with Oscilloscope in Multi-instrument Mode.
Try the software
For total flexibility, choose from predefined or custom waveforms
Select from six predefined waveforms: sine, Gaussian, exponential rise or fall, sinc, and cardiac. It’s easy to edit waveforms as piecewise mathematical functions, or load them from a file with up to 65,536 points.
Generate phase-locked outputs to unlock greater insights

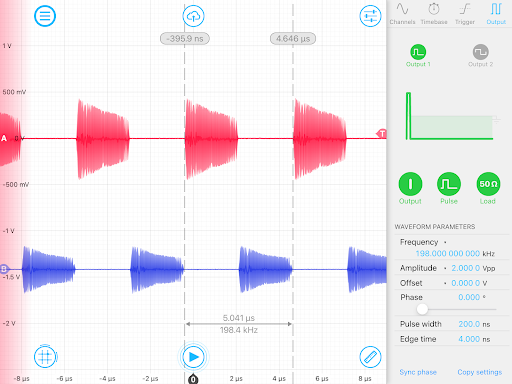

Configure output phase synchronization between the Arbitrary Waveform Generator channels. Select from normal, burst, or pulsed output with up to 250,000 cycles of dead time between pulses.
Precision meets adaptability with no sacrifices in performance
Our FPGA-based architecture delivers high-performance instrumentation that’s flexible and adaptable for a range of test needs. For deeper insights, add a DC offset to your signals with up to 100 µV precision and a phase offset with up to 0.001° precision when generating custom, arbitrary waveforms.
Engineered to work seamlessly with your preferred APIs
API integration with Python, MATLAB, and LabVIEW allows straightforward automation of your Moku device in complex setups or for repetitive tasks. Save your measurements, screenshots, traces, and other settings locally or to your preferred cloud app. You can also send work to yourself or colleagues within the Moku app.
Engineered for demanding applications
Use the Moku Arbitrary Waveform Generator to accelerate development timelines with speed and flexibility unmatched by any other instrument in its class.
Additive manufacturing
Cardiac waveform simulation
Quantum optics
Random pattern scanning
System response simulation
Integrates seamlessly with your tech stack
Specifications and technical documents
The Moku Arbitrary Waveform Generator runs on Moku:Pro, Moku:Lab, and Moku:Go. Compare the specifications to choose the right device for your application.
Technical specifications
Channels
4
2
2
Maximum update rate
1.25 GSa/s
1 GSa/s
125 MSa/s
Output bandwidth
500 MHz
300 MHz
20 MHz
DAC resolution
16 bits
16 bits
12 bits
Output range
± 5 V
± 1 V
± 5 V
Memory depth
65,536
65,536
65,536
Software & utilities
Windows, macOS, iPadOS, and visionOS apps
API support for Python, MATLAB, and LabVIEW
Windows, macOS, iPadOS, and visionOS apps
API support for Python, MATLAB, and LabVIEW
Windows, macOS, iPadOS, and visionOS apps
API support for Python, MATLAB, and LabVIEW
Documentation
Datasheets
User manuals
Specs
Moku:Pro
Arbitrary Waveform Generator
Technical specifications
Channels
4
Maximum update rate
1.25 GSa/s
Output bandwidth
500 MHz
DAC resolution
16 bits
Output range
± 5 V
Memory depth
65,536
Software & utilities
iPadOS app
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW
Documentation
Datasheets
User manuals
Specs
Moku:Lab
Arbitrary Waveform Generator
Technical Specifications
Channels
2
Maximum update rate
1 GSa/s
Output bandwidth
300 MHz
DAC resolution
16 bits
Output range
± 1 V
Memory depth
65,536
Software & utilities
iPadOS app
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW
Documentation
Datasheets
User manuals
Specs
Moku:Go
Arbitrary Waveform Generator
Technical Specifications
Channels
2
Maximum update eate
125 MSa/s
Output bandwidth
20 MHz
DAC resolution
12 bits
Output range
± 5 V
Memory depth
65,536
Software & utilities
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW
Documentation
Datasheets
User manuals
Specs
Featured resources
From detailed case studies featuring real-world users to comprehensive application notes that explore instrument features and functions, we offer a range of resources to help you work smarter and achieve more with the Moku Arbitrary Waveform Generator.
