FIR Filter Box
FIR Filter Builder
Leverage the versatile Moku FIR Filter Builder to design and implement lowpass, highpass, bandpass, and bandstop finite impulse response (FIR) filters with up to 14,819 coefficients. It’s easy to fine-tune the filter response in the frequency and time domains to complement your specific application. For maximum flexibility, select between four frequency response shapes, five common impulse responses, and up to eight window functions.
- Available on
- Moku:Pro >
- Moku:Lab >
- Moku:Go >
The Moku FIR Filter Builder is easy to use and offers a range of advanced capabilities to optimize your experiment — at the most cost-effective price in the industry.
Key benefits
With up to four independent channels, an embedded Oscilloscope, and an interactive Bode plot, you can expect more from the Moku FIR Filter Builder.
Add a filter stage to your custom test system for comprehensive analysis

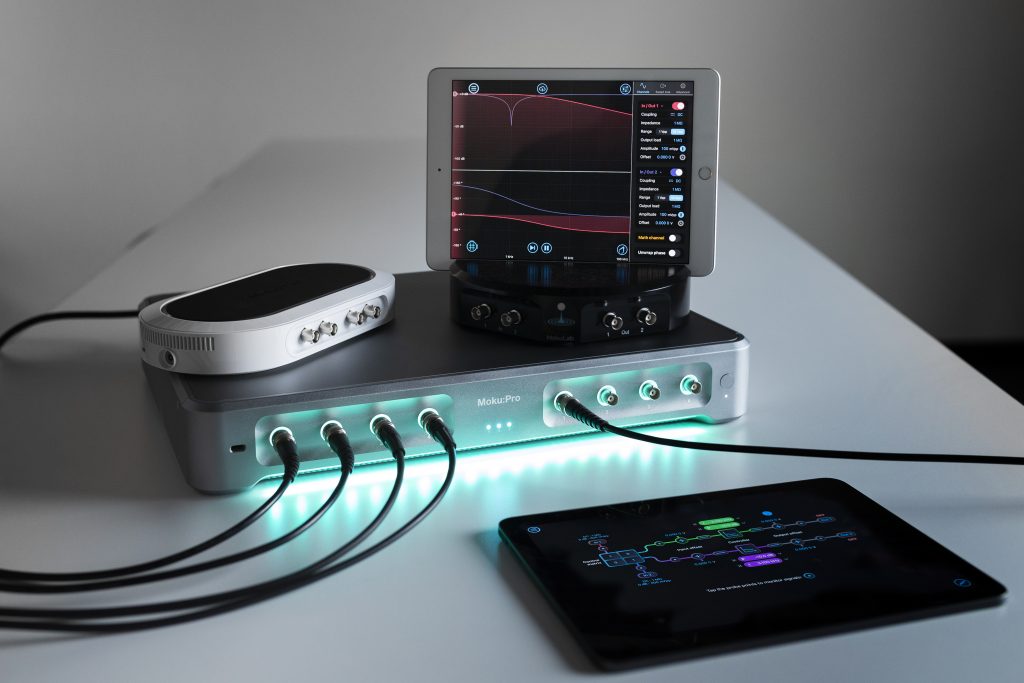

Engineered for flexibility, the Moku FIR Filter Builder delivers top performance as a both standalone instrument and a fully integrated component of a custom test sequence in Multi-instrument Mode. Pair it with other software-defined instruments to filter inputs, outputs, or intermediate signals.
Try the software

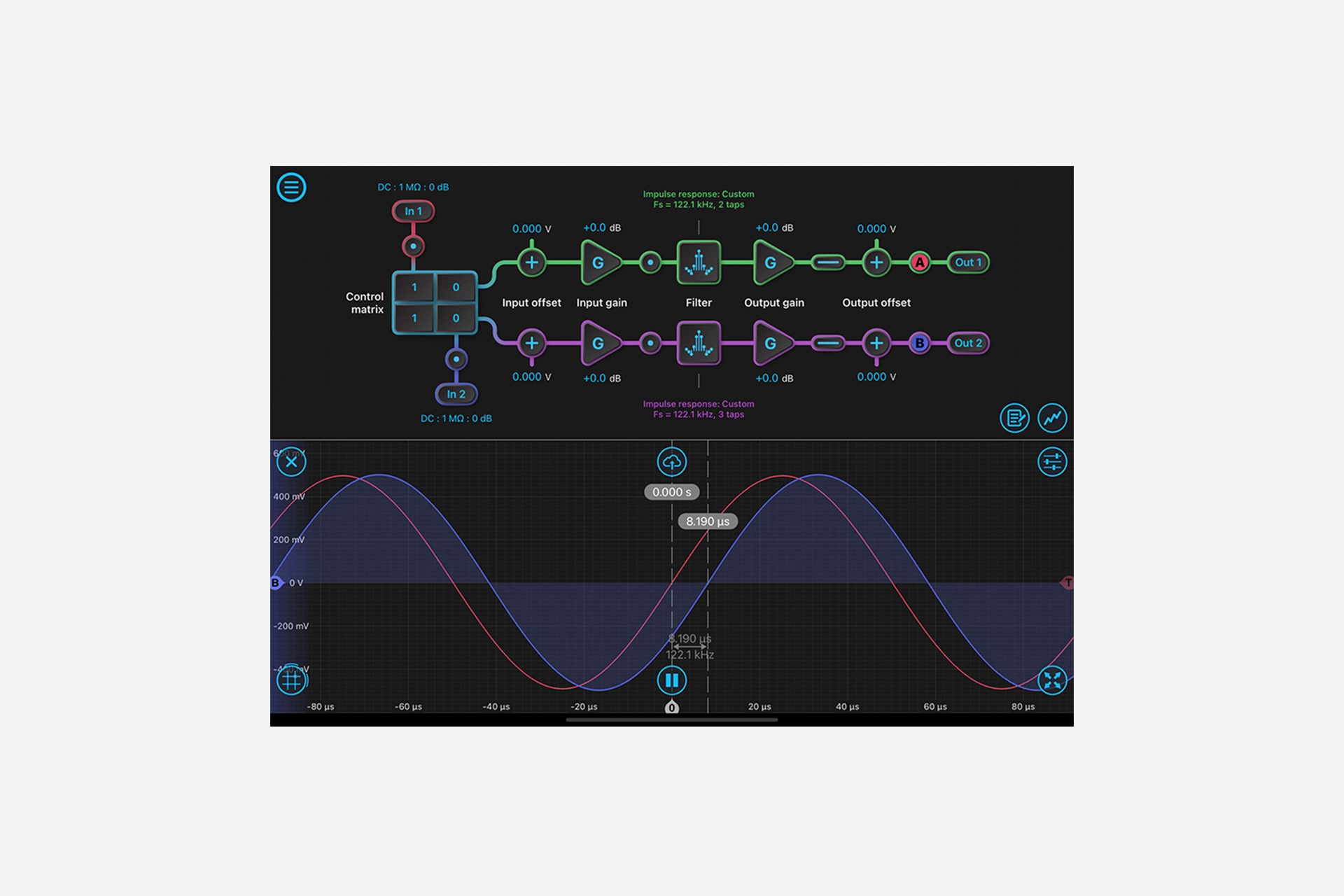

It’s easy and convenient to view your signal with the built-in probe points

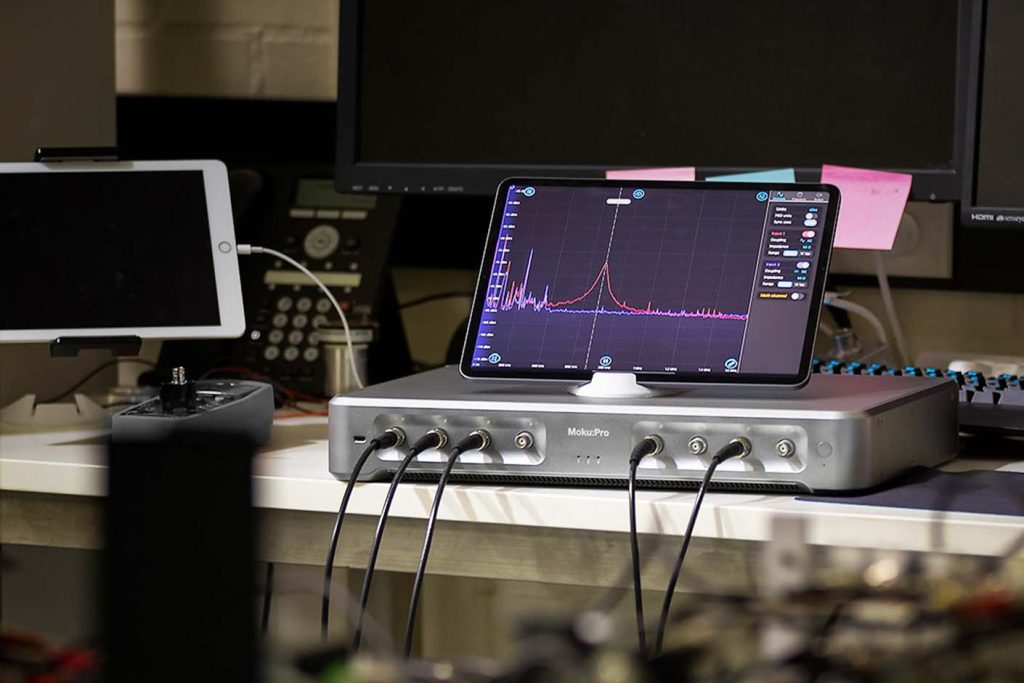

Use the built-in Oscilloscope to monitor signals throughout the signal path. Need to record critical data? Simply enable the onboard Data Logger and start capturing test results with no extra instruments required.
Visualize your system and configuration in real time

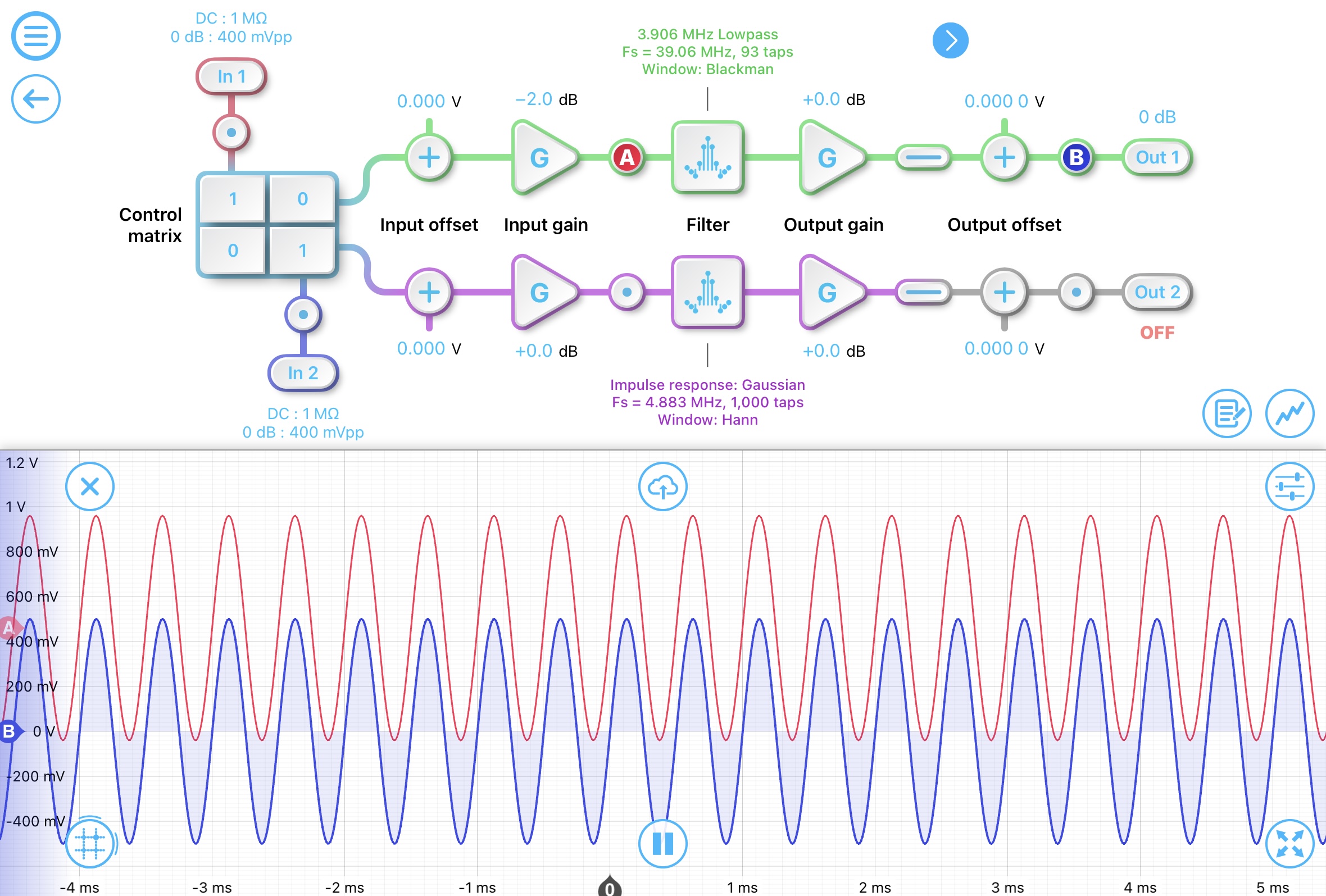

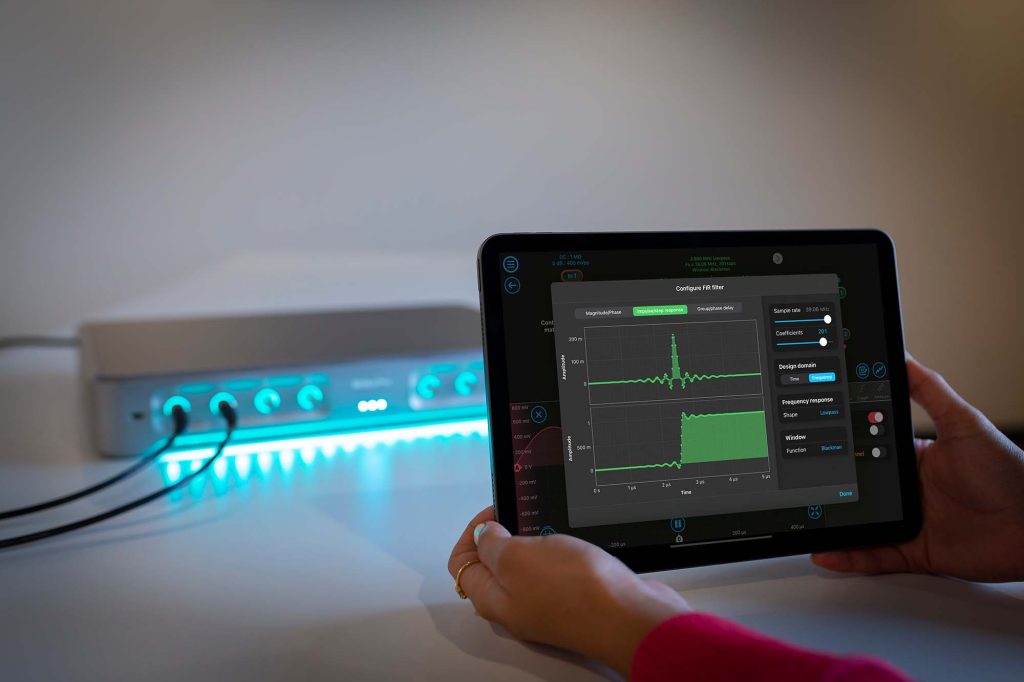

Quickly design filters in the time or frequency domains, choosing from common impulse responses and window functions. Looking to adjust filter parameters? Just tap and drag the corner frequencies.
For total flexibility, select from preset filters or build your own
Choose from impulse response functions like rectangular, sinc, triangular, Gaussian, equation input, or custom, and frequency response functions like lowpass, highness, bandpass, and bandstop filter shapes. Need a Window function? Select from Bartlett, Hann, Hamming, Blackman, Nuttall, Tukey, Kaiser, or none.
Engineered to work seamlessly with your preferred APIs
API integration with Python, MATLAB, and LabVIEW allows straightforward automation of your Moku device in complex setups or for repetitive tasks. Save your measurements, screenshots, traces, and other settings locally or to your preferred cloud app. You can also send work to yourself or colleagues within the Moku app.
Engineered for demanding applications
Use the Moku FIR Filter Builder to accelerate development timelines with speed and flexibility unmatched by any other instrument in its class.
Custom filter design
Impulse response simulation
Noise filtering
Signal pre-emphasis
System design
Integrates seamlessly with your tech stack
Specifications and technical documents
The Moku FIR Filter Builder runs on Moku:Pro, Moku:Lab, and Moku:Go. Compare the specifications to choose the right device for your application.
Technical specifications
Channels
4
2
2
Sampling rate
305.18 kHz or 39.063 MHz
122.07 kHz to 15.625 MHz
30.5 kHz or 3.9 MHz
Filter coefficients
Up to 14,819
Up to 14,819
Up to 14,819
Input range
± 20 V
± 0.5 V or ± 5 V
± 5 V or ± 25 V
Output voltage range
± 5 V into 50 Ω
± 1 V into 50 Ω
± 5 V into 1 MΩ
Software & utilities
Windows, macOS, iPadOS, and visionOS apps
API support for Python, MATLAB, and LabVIEW
Windows, macOS, iPadOS, and visionOS apps
API support for Python, MATLAB, and LabVIEW
Windows, macOS, iPadOS, and visionOS apps
API support for Python, MATLAB, and LabVIEW
Documentation
Datasheets
User manuals
Moku:Pro
FIR Filter Builder
Technical specifications
Channels
4
Sampling rate
305.18 kHz or 39.063 MHz
Filter coefficients
Up to 14,819
Input range
± 20 V
Output voltage range
± 5 V into 50 Ω
Software & utilities
iPadOS app
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW
Documentation
Datasheets
User manuals
Specs
Moku:Lab
FIR Filter Builder
Technical specifications
Channels
2
Sampling rate
122.07 kHz to 15.625 MHz
Filter coefficients
Up to 14,819
Input range
± 0.5 V or ± 5 V
Output voltage range
± 1 V into 50 Ω
Software & utilities
iPadOS app
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW
Documentation
Datasheets
User manuals
Specs
Moku:Go
FIR Filter Builder
Technical specifications
Channels
2
Sampling rate
30.5 kHz or 3.9 MHz
Filter coefficients
Up to 14,819
Input range
± 5 V or ± 25 V
Output voltage range
± 5 V into 1 MΩ
Software & utilities
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW
Documentation
Datasheets
User manuals
