The Moku Frequency Response Analyzer enables multi-channel Bode analysis in a single device. Leverage up to four inputs and outputs to enable differential or ratiometric measurements. Quickly measure the frequency response or transfer function of a device under test with industry-leading noise performance and bandwidth to see the real performance of your DUT on an integrated Bode plot. With advanced functionality included, it’s easy to optimize your measurement dynamic range, prevent saturation, and log data simultaneously.
- Available on
- Moku:Pro >
- Moku:Lab >
- Moku:Go >
Learn more about the Moku Frequency Response Analyzer
The Moku Frequency Response Analyzer makes it simple to get up and running with an intuitive GUI, no lengthy warmup times, and a full suite of embedded instruments to fully characterize your DUT.
Key Benefits of the Moku Frequency Response Analyzer
With one-touch normalization, an integrated Oscilloscope, and advanced saturation detection and adjustments, you can expect more from the Moku Frequency Response Analyzer.
Make fast, accurate stimulus-response measurements with the Moku Frequency Response Analyzer
Apply a swept sine signal to your device under test to view the system response in magnitude and phase. Independently configure up to four inputs and four outputs to probe up to four systems simultaneously, or one system at four points. Perform many VNA-type measurements including impedance testing, s-parameter testing, and more.
One-touch normalization to see the real response of your device under test

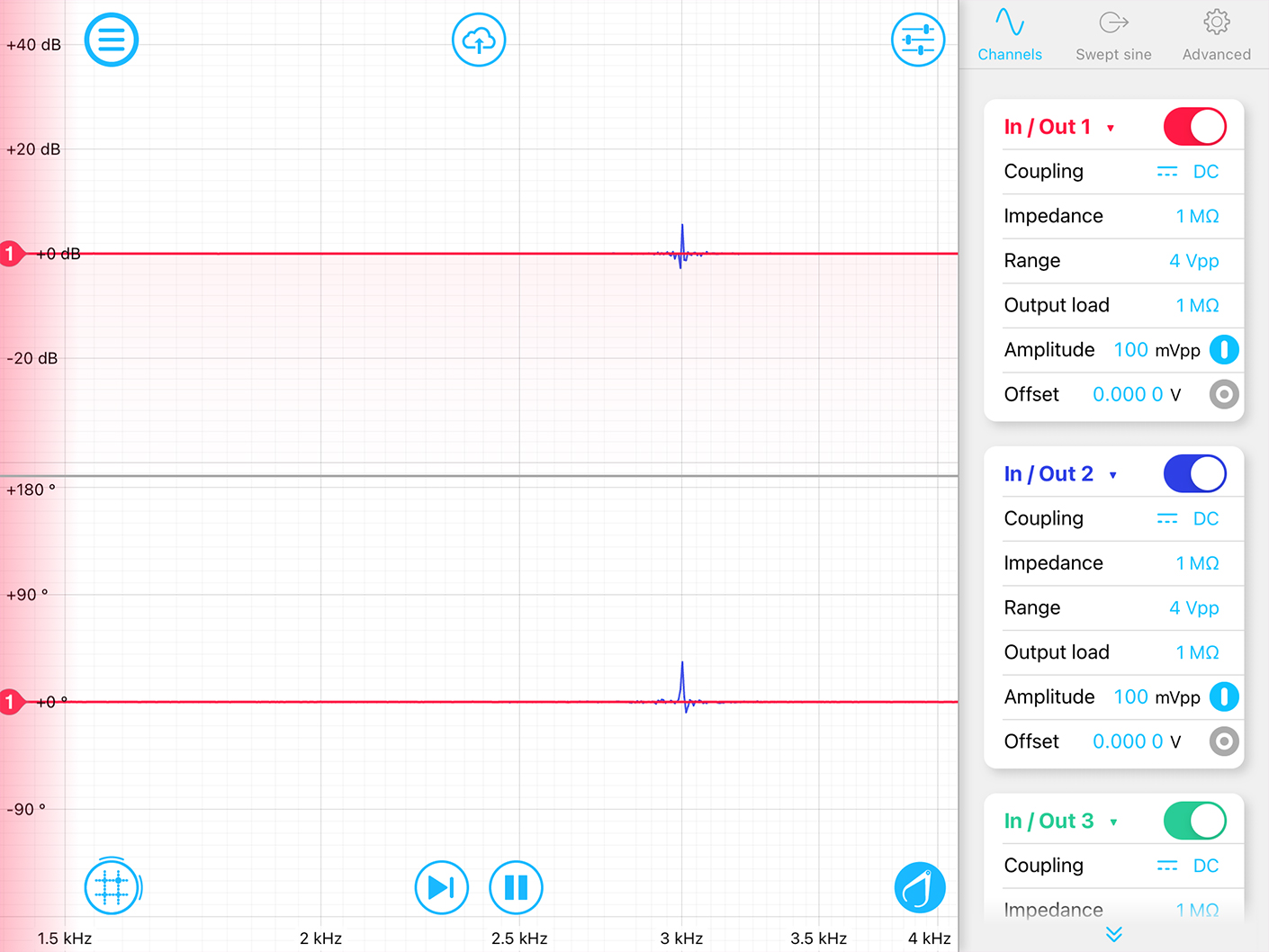

Isolate the magnitude and phase response of the system under test by normalizing out intrinsic delays and magnitude errors introduced by cables and Moku:Pro itself. Save a normalization trace to compare systems or remove spurious cable shifts.

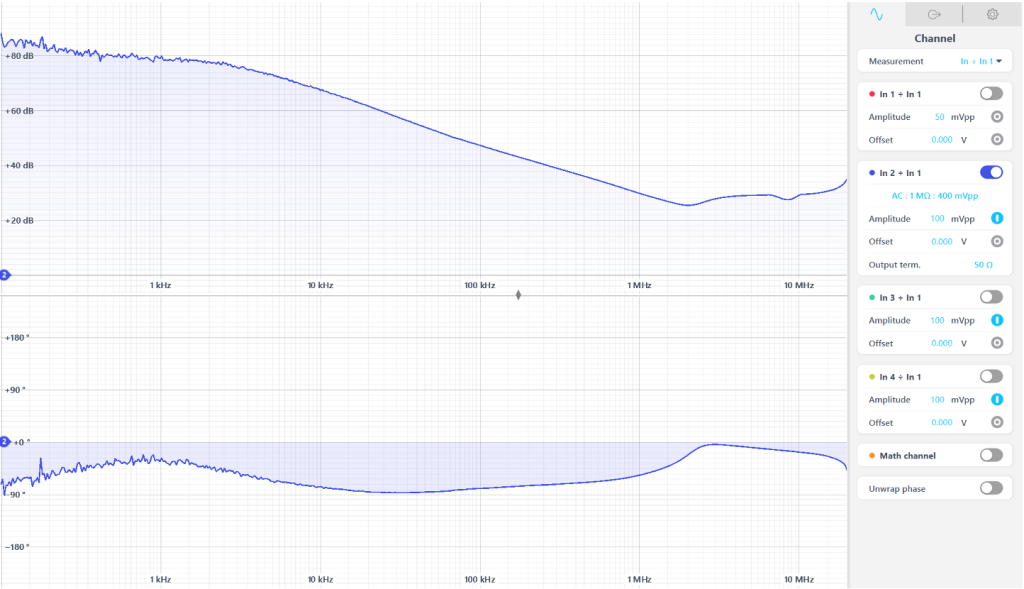

Live Bode plots for real-time frequency response analysis

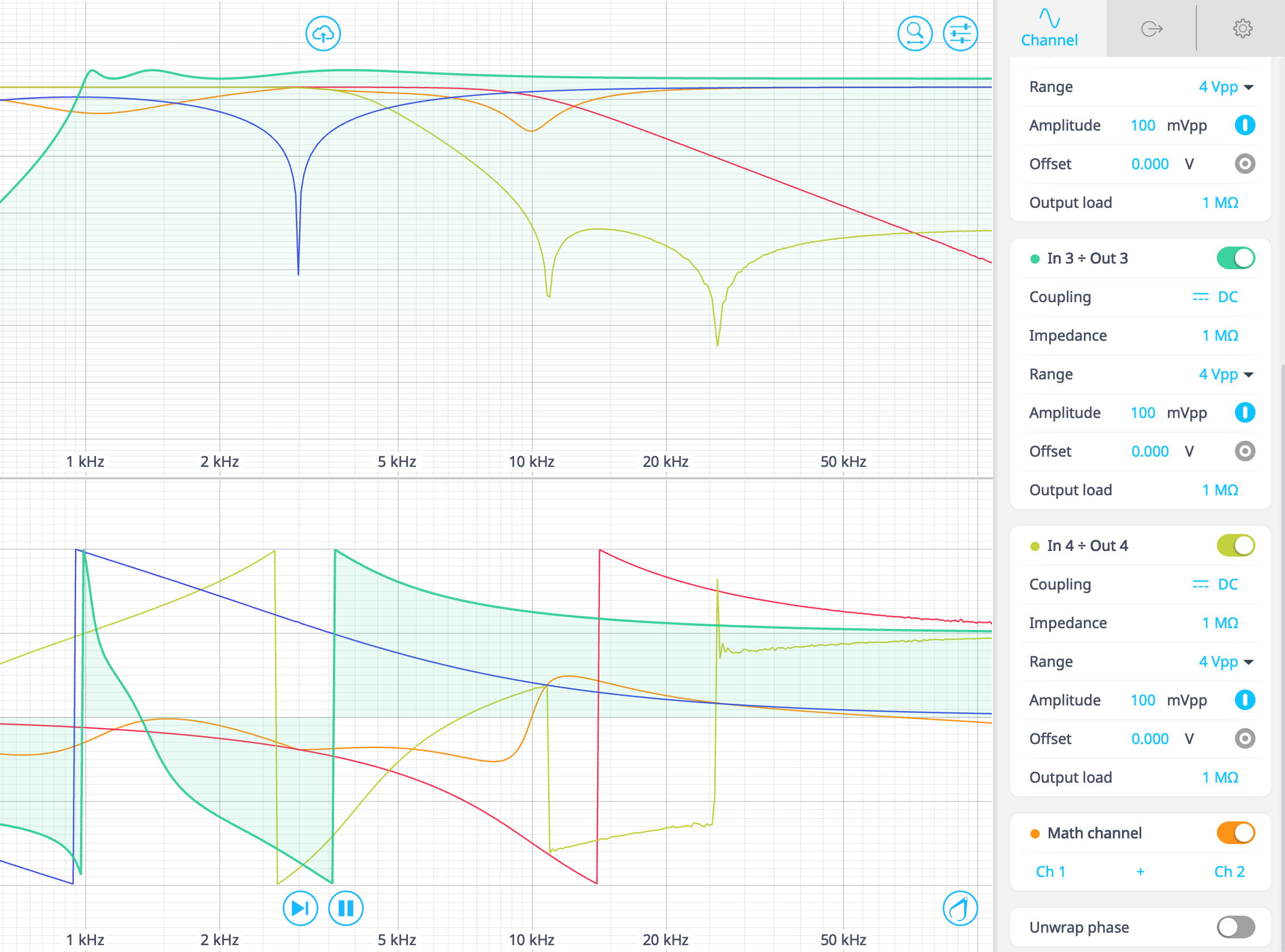

Monitor the magnitude and phase on the interactive Bode plot to make measurements across fundamental and harmonics to characterize nonlinear effects. Use the configurable math channel for real-time addition, subtraction, and division, or to calculate arbitrary complex-valued equations as you acquire response functions.
Prevent saturation without sacrificing dynamic range
The Moku Frequency Response Analyzer is the only Bode analyzer with Dynamic Amplitude mode, checking every point in the 8192-point sweep for saturation and automatically reducing the corresponding output signal amplitude until saturation is no longer detected.
Integrate with your preferred software
Moku features API support for Python, MATLAB, LabVIEW, and more, allowing for straightforward integration of Moku with your technology stack.
Try the softwareEngineered for Demanding Applications
Use the Moku Frequency Response Analyzer to accelerate development timelines with speed and flexibility unmatched by any other instrument in its class.
Component characterization
EMI filter characterization
Impedance measurement
Power supply analysis
Stability analysis
Integrates seamlessly with your tech stack
Specifications and technical documents
The Moku Frequency Response Analyzer is available on all Moku devices. Compare the specifications below to choose the right device for your application.
Technical specifications
Channels
4
2
2
Frequency range
10 mHz to 500 MHz
10 mHz to 200 MHz
10 mHz to 20 MHz
Averaging time
1 µs – 10 s
1 µs – 10 s
1 µs – 10 s
Sweep
Linear/logarithmic
Linear/logarithmic
Linear/logarithmic
Input impedance
50 Ω / 1 MΩ
50 Ω / 1 MΩ
1 MΩ
Settling time
1 µs – 10 s
1 µs – 10 s
1 µs – 10 s
Software & Utilities
Windows, macOS, iPadOS, and visionOS apps
API support for Python, MATLAB, and LabVIEW
Windows, macOS, iPadOS, and visionOS apps
API support for Python, MATLAB, and LabVIEW
Windows, macOS, iPadOS, and visionOS apps
API support for Python, MATLAB, and LabVIEW
Documentation
Datasheets
User manuals
Specs
Moku:Pro
Frequency Response Analyzer
Technical specifications
Channels
4
Frequency range
10 mHz to 500 MHz
Averaging time
1 µs – 10 s
Sweep
Linear/logarithmic
Input impedance
50 Ω / 1 MΩ
Settling time
1 µs – 10 s
Software & utilities
iPadOS App
macOS App, Windows App
API support for Python, MATLAB, and LabVIEW
Documentation
Datasheets
User manuals
Specs
Moku:Lab
Frequency Response Analyzer
Technical specifications
Channels
2
Frequency range
10 mHz to 200 MHz
Averaging time
1 µs – 10 s
Sweep
Linear/logarithmic
Input impedance
50 Ω / 1 MΩ
Filter time constant
From 32 ns to 0.537 s
Input impedance
50 Ω / 1 MΩ
Settling time
1 µs – 10 s
Software & utilities
iPadOS App
macOS App, Windows App
API support for Python, MATLAB, and LabVIEW
Documentation
Datasheets
User manuals
Specs
Moku:Go
Frequency Response Analyzer
Technical specifications
Channels
2
Frequency range
10 mHz to 20 MHz
Averaging time
1 µs – 10 s
Sweep
Linear/logarithmic
Input impedance
1 MΩ
Settling time
1 µs – 10 s
Software & utilities
macOS App
Windows App
API support for Python, MATLAB, and LabVIEW
Documentation
Datasheets
User manuals
Specs
