Laser Lock Box
Laser Lock Box
The Moku Laser Lock Box is a complete, FPGA-based laser locking system. It replaces multiple separate components with a single, easy-to-use device, reducing distortion and insertion loss and simplifying the locking process. The Laser Lock Box provides an array of customization and automation features to quickly and precisely lock your laser.
- Available on
- Moku:Pro >
- Moku:Lab >
- Moku:Go >
Learn more about the Moku Laser Lock Box
Comprehensively control and monitor every aspect of your laser locking system from a single screen with the Moku Laser Lock Box. Watch the video to learn more.
Key benefits of the Moku Laser Lock Box
From an embedded Data Logger and Oscilloscope to the ability to automate locking stages, locking your laser is faster and more efficient with the Moku Laser Lock Box.
High-performance frequency stabilization without the clutter
The Moku Laser Lock Box replaces all the constituent pieces of a laser locking system — waveform generators, phase shifters, demodulators, filters, and PID controllers — minimizing the physical footprint and reducing cost. With high-performance digital signal processing and an easy-to-use interface, Moku delivers an all-in-one solution for laser frequency stabilization.

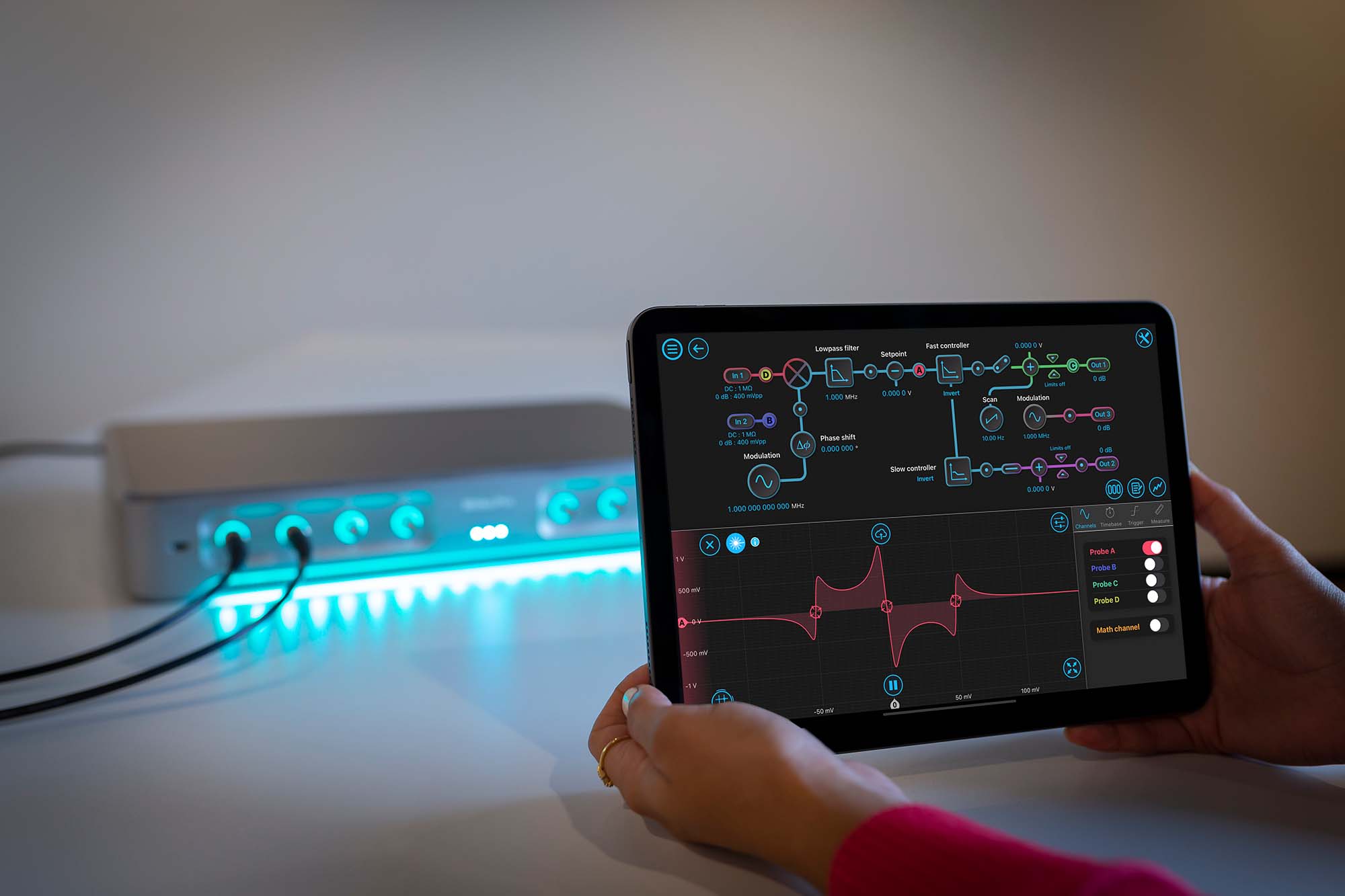

Block diagram view for enhanced efficiency
Visualize and configure your control system and observe every step in the signal processing chain using the embedded Oscilloscope. Use options such as conditional triggering, synchronized scanning, filtering, and configurable output limiters — all designed specifically for cavity stabilization systems.
Reconfigurability to adapt to your locking technique
From PDH locking to dither locking, integrate the Laser Lock Box in with your setup for faster, easier stabilization. Easily lock lasers to a cavity with limited manual intervention using Lock Assist. Tap to instantly lock on to any zero crossing on the demodulated error signal.

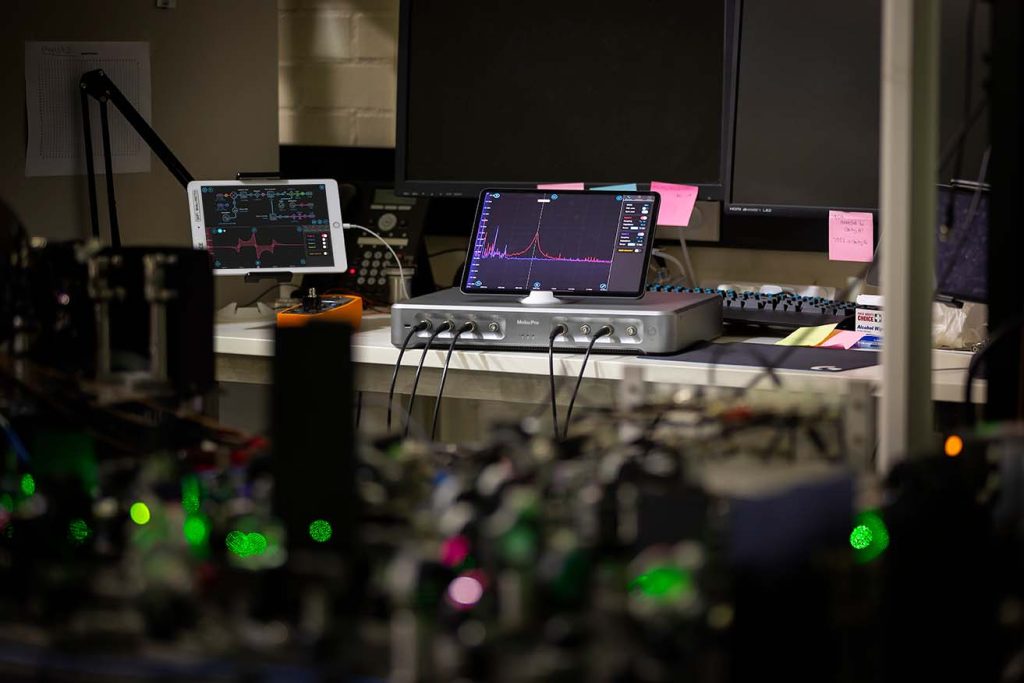

Optimized for optics labs
With Moku software for iPad and Apple Vision Pro, you’re not tethered to your workstation. Move freely throughout the lab, adjust optical components, and debug your system before locking. Switch back to the desktop app for monitoring or data collection and analysis.
Try it in demo mode
Easily integrate into your preferred software
API integration with Python, MATLAB, and LabVIEW allows straightforward automation of the Moku Laser Lock Box in complex setups or for repetitive tasks. Save your measurements, screenshots, traces, and other settings locally or directly to the cloud.
Try the softwareEngineered for demanding applications
Use the flexible Moku Laser Lock box to accelerate any application requiring ultra-stable lasers.
Quantum optics
Raman spectroscopy
Gravitational wave detection
Atomic physics
Dark matter detection
Integrates seamlessly with your tech stack
Specifications and technical documents
The Moku Laser Lock Box is available on all Moku platforms. Compare the specifications below to choose the right device for your application.
Technical specifications
Channels
4
2
2
Demodulation frequency
1 mHz to 600 MHz
1 mHz to 200 MHz
1 mHz to 30 MHz
Scan frequency
up to 10 MHz
up to 10 MHz
up to 10 MHz
Adjustable filter
2.6 kHz to 35 MHz
1 kHz to 14 MHz
260.1 Hz to 3.516 MHz
DAC resolution
16 bits
16 bits
12 bits
Integrated Oscilloscope
up to 1.25 GSa/s
500 MSa/s
125 MSa/s
Software & APIs
Windows, macOS, iPadOS, and visionOS apps
API support for Python, MATLAB, and LabVIEW
Windows, macOS, iPadOS, and visionOS apps
API support for Python, MATLAB, and LabVIEW
Windows, macOS, iPadOS, and visionOS apps
API support for Python, MATLAB, and LabVIEW
Documentation
Datasheets
User manuals
Specs
Moku:Pro
Laser Lock Box
Technical specifications
Channels
4
Demodulation frequency
1 mHz to 600 MHz
Scan frequency
up to 10 MHz
Adjustable filter
2.6 kHz to 35 MHz
DAC resolution
16 bits
Integrated oscilloscope
up to 1.25 GSa/s
Software & APIs
Windows, macOS, and iPadOS App
API support for Python, MATLAB, and LabVIEW
Documentation
Datasheets
User manuals
Specs
Moku:Lab
Laser Lock Box
Technical specifications
Channels
2
Demodulation frequency
1 mHz to 200 MHz
Scan frequency
up to 10 MHz
Adjustable filter
1 kHz to 14 MHz
DAC resolution
16 bits
Integrated oscilloscope
500 MSa/s
Software & APIs
Windows, macOS, and iPadOS App
API support for Python, MATLAB, and LabVIEW
Documentation
Datasheets
User manuals
Specs
Moku:Go
Laser Lock Box
Technical Specifications
Channels
2
Demodulation frequency
1 mHz to 30 MHz
Scan frequency
up to 10 MHz
Adjustable filter
260.1 Hz to 3.516 MHz
DAC resolution
16 bits
Integrated oscilloscope
125 MSa/s
Software & APIs
Windows and macOS
API support for Python, MATLAB, and LabVIEW
Documentation
Datasheets
User manuals
Specs
Featured resources
From detailed case studies featuring real-world users to comprehensive application notes that explore instrument features and functions, see a range of resources to help you work smarter and achieve more with the Moku Laser Lock Box.
