Logic Analyzer/Pattern Generator
Logic Analyzer/ Pattern Generator
On Moku:Go, the versatile Logic Analyzer/Pattern Generator is equipped with 16 bidirectional digital I/Os. For Moku:Lab and Moku:Pro, the instrument utilizes the devices’ analog input and output ports to stimulate, monitor, capture, and debug digital systems. Use the integrated Protocol Analyzer and Pattern Generator features to enable full digital circuit design and analysis, or debug custom designs quickly and efficiently in Multi-instrument Mode.
- Available on
- Moku:Pro >
- Moku:Lab >
- Moku:Go >
The Moku Logic Analyzer/Pattern Generator is easy to use and offers a range of advanced capabilities to optimize your experiment — at the most cost-effective price in the industry.
Key benefits
With up to 16 bidirectional channels, easy data sharing, and an integrated
Protocol Analyzer, you can expect more from the Moku Logic Analyzer/Pattern Generator.
Work smarter with an intuitive software interface for Windows and Mac applications
Configure the easy-to-use Logic Analyzer/Pattern Generator and seamlessly save and share critical data with Moku software. The Moku: app is free and easy to use — try it in demo mode today.
Try it in demo mode

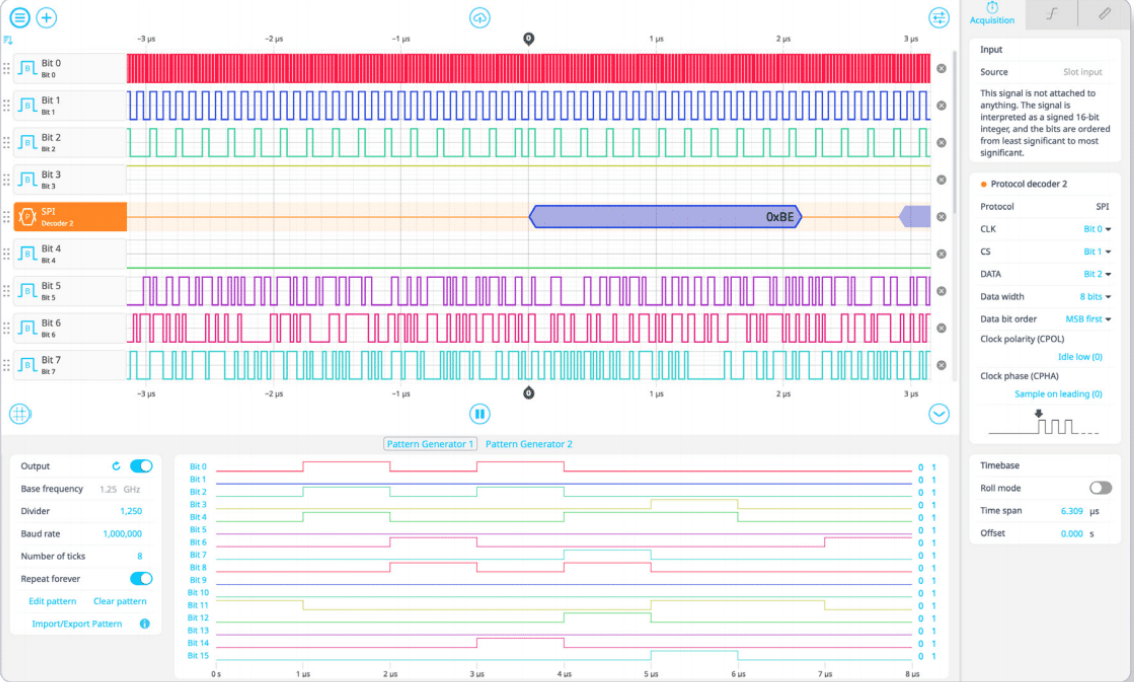

Quickly generate and analyze patterns and protocols
Choose to output standard or custom multi-pin patterns using the instrument’s built-in, 16-bit Pattern Generators. Then add protocol decoders to analyze the response for UART, SPI, I2C, I2S, CAN, or parallel bus protocols.
Export data in multiple formats with a single click
The Logic Analyzer/Pattern Generator allows you to conveniently export the measured and generated pattern as a .CSV or .MAT file directly to your computer with a single click.
It’s easy to debug custom digital designs
In Multi-instrument Mode, deploy Moku Cloud Compile and the Logic Analyzer/Pattern Generator to independent instrument slots. To accelerate the development process, utilize a 16-bit bus input and two 16-bit Pattern Generators to stimulate, monitor, and fully characterize designs.
Engineered to work seamlessly with your preferred APIs
API integration with Python, MATLAB, and LabVIEW allows straightforward automation of your Moku device in complex setups or for repetitive tasks. Save your measurements, screenshots, traces, and other settings locally or to your preferred cloud app. You can also send work to yourself or colleagues within the Moku app.
Engineered for demanding applications
Use the Moku Logic Analyzer/Pattern Generator to accelerate development timelines with speed and flexibility unmatched by any other instrument in its class.
Custom design debug
Digital circuit design
Digital communication diagnosis
IC testing and validation
Protocol decoding
Integrates seamlessly with your tech stack
Specifications and technical documents
The Moku Logic Analyzer/Pattern Generator runs on Moku:Pro, Moku:Lab, and Moku:Go. Compare the specifications to choose the right device for your application.
Technical specifications
I/O channels
Up to 5
3
16 (DIO)
Logic Analyzer sampling rate
1.25 GSa/s
500 MSa/s
125 MSa/s
Logic Analyzer memory depth
190k x 3
250k x 16 (Multi-instrument Mode)
500k x 3
250k x 16 (Multi-instrument Mode)
1M x 16
Pattern Generator sampling rate
1.25 GSa/s (Multi-instrument Mode only)
32,764 x 16 (Multi-instrument Mode only)
125 MSa/s
Pattern Generator memory depth
32,764 x 16 (Multi-instrument Mode only)
32,764 x 16 (Multi-instrument Mode only)
32,764 x 16
Software & utilities
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW
Documentation
Datasheets
User manuals
Specs
Moku:Pro
Logic Analyzer / Pattern Generator
Technical Specifications
I/O Channels
Up to 5
Logic Analyzer sampling rate
1.25 GSa/s
Logic Analyzer memory depth
190k x 3
250k x 16 (Multi-instrument Mode)
Pattern Generator sampling rate
1.25 GSa/s (Multi-instrument Mode only)
Pattern Generator memory depth
32,764 x 16 (Multi-instrument Mode only)
Software & Utilities
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW
Documentation
Datasheets
User manuals
Specs
Moku:Lab
Logic Analyzer / Pattern Generator
Technical Specifications
I/O Channels
3
Logic Analyzer sampling rate
500 MSa/s
Logic Analyzer memory depth
500k x 3
250k x 16 (Multi-instrument Mode)
Pattern Generator sampling rate
32,764 x 16 (Multi-instrument Mode only)
Pattern Generator memory depth
± 1 V into 50 Ω
Software & Utilities
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW
Documentation
Datasheets
User manuals
Specs
Moku:Go
Logic Analyzer / Pattern Generator
Technical Specifications
I/O Channels
16 (DIO)
Logic Analyzer sampling rate
125 MSa/s
Logic Analyzer memory depth
1M x 16
Pattern Generator sampling rate
125 MSa/s
Pattern Generator memory depth
32,764 x 16
Software & Utilities
macOS app, Windows app
API support for Python, MATLAB, and LabVIEW
Documentation
Datasheets
User manuals
Specs
Featured resources
From detailed case studies featuring real-world users to comprehensive application notes that explore instrument features and functions, we offer a range of resources to help you work smarter and achieve more with the Moku Logic Analyzer/Pattern Generator.
